Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

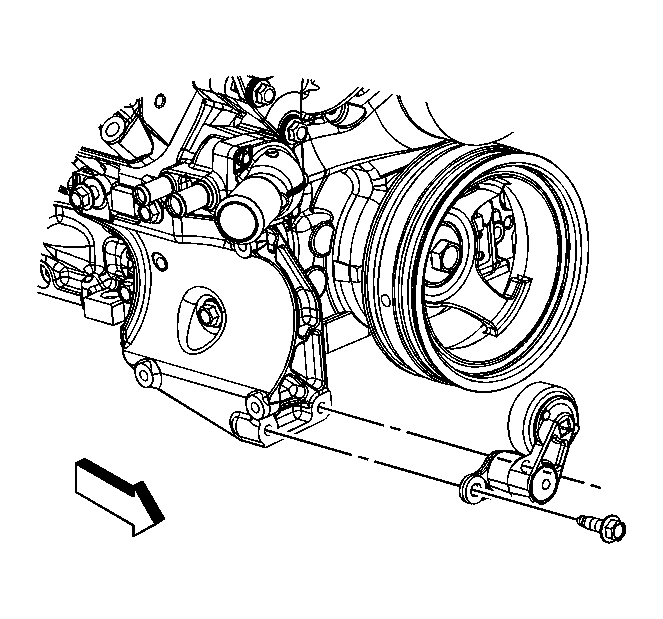

    Fig 1: View Of A/C Drive Belt Tensioner & Bolts
    GM1696655Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Position the A/C drive belt tensioner to the A/C compressor bracket.
  2. Install and tighten the A/C drive belt tensioner bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  3. Install the A/C drive belt. Refer to Drive Belt Replacement - Air Conditioning .
