Steering Knuckle Replacement (1500 Series)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

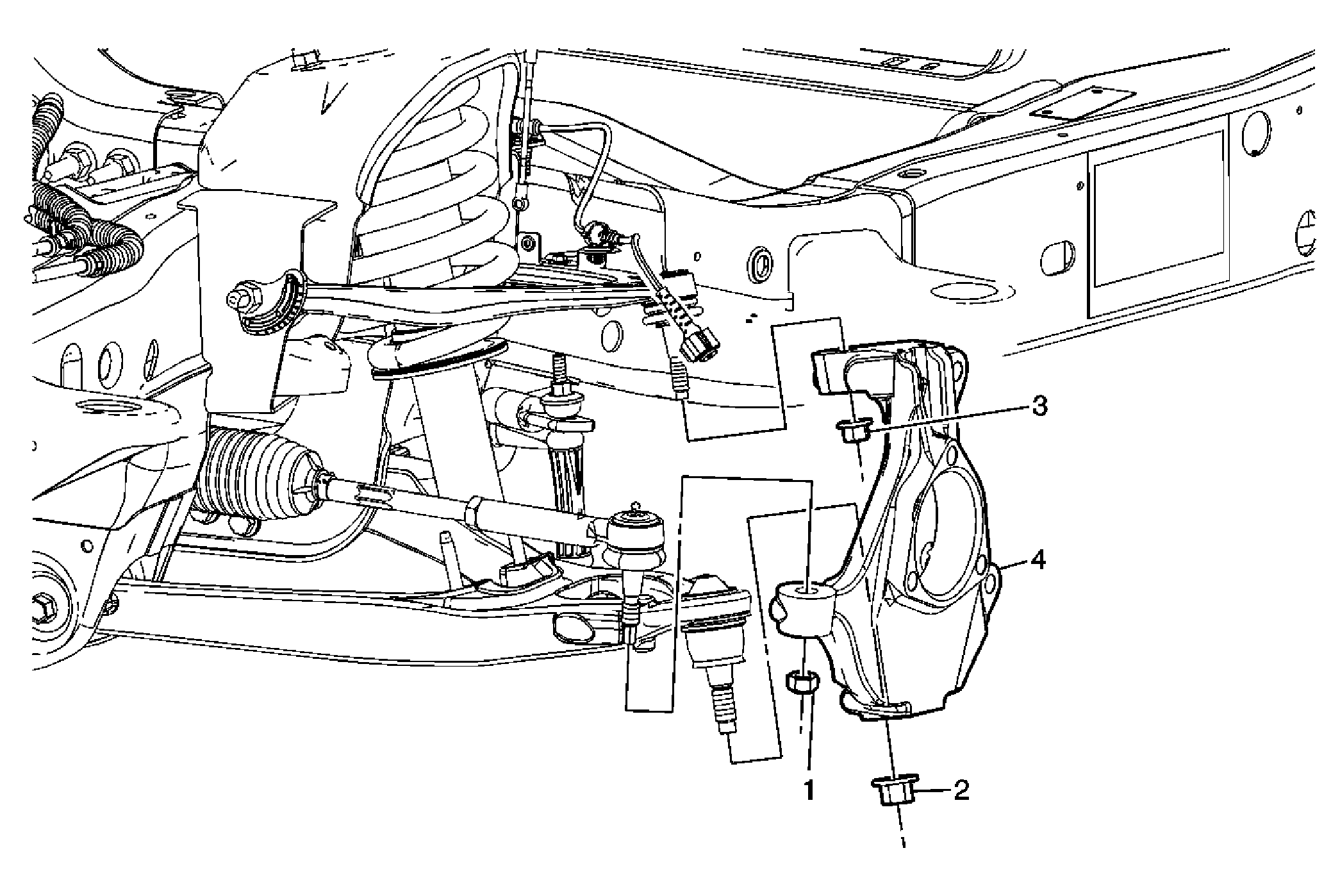

Fig 1: View Of Steering Knuckle & Components
GM1688189Courtesy of GENERAL MOTORS CORP.
Steering Knuckle Replacement (1500 Series)

Callout Component Name

Tools Required

  • J 24319-B  Steering Linkage and Tie Rod Puller
  • J 36660-A  Torque Angle Meter. See Special Tools .
  • J 43631  Ball Joint Separator. See Special Tools .
  • J-42188-B  Ball Joint Separator. See Special Tools .

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Place a suitable support under the lower control arm and load the suspension.
  4. Remove the front wheel bearing/hub assembly. Refer to Wheel Hub, Bearing, and Seal Replacement (1500 Series)  or Wheel Hub, Bearing, and Seal Replacement (2500 Series) .
1 Outer Tie Rod End Nut
NOTE: Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.
NOTE: Refer to Fastener Notice .

Tighten:  61 N.m (45 lb ft) plus an additional 95 degrees


Tip:
  1. Remove the outer tie rod nut from the tie rod stud.
  2. Use the J 24319-B  to separate the tie rod from the steering knuckle.
  3. Use the J 36660-A  for the final torque. See Special Tools .
2 Lower Ball Joint Nut

Tighten:  110 N.m (81 lb ft)


Tip:
  1. Remove the lower ball joint nut from the ball joint stud.
  2. Use the J 43631  to separate the ball joint from the steering knuckle. See Special Tools .
3 Upper Ball Joint Nut

Tighten:  50 N.m (37 lb ft)


Tip:
  1. Remove the upper ball joint nut from the ball joint stud.
  2. Use the J-42188-B  to separate the ball joint from the steering knuckle. See Special Tools .
4 Steering Knuckle
Tip:  Remove the steering knuckle from the vehicle.
