Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

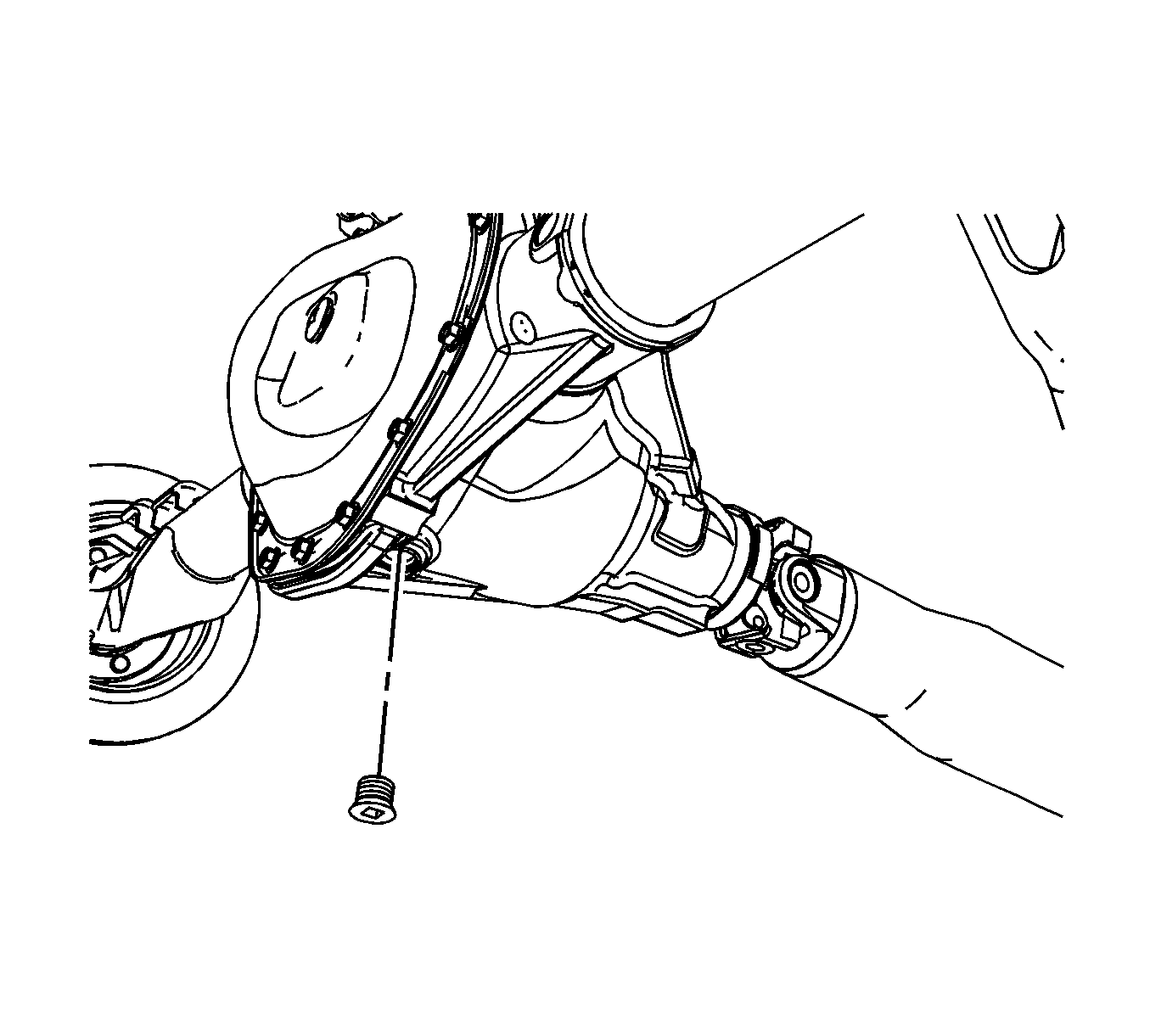

    2. Fig 1: View Of Drain Plug
    GM1689710Courtesy of GENERAL MOTORS CORP.
  2. Drain the rear axle.
    • For the 8.6 inch axle, loosen the rear cover bolts to allow the fluid to drain from the rear axle.
    • For the 9.5 inch LD and 9.5 inch HD axles, remove the drain plug.

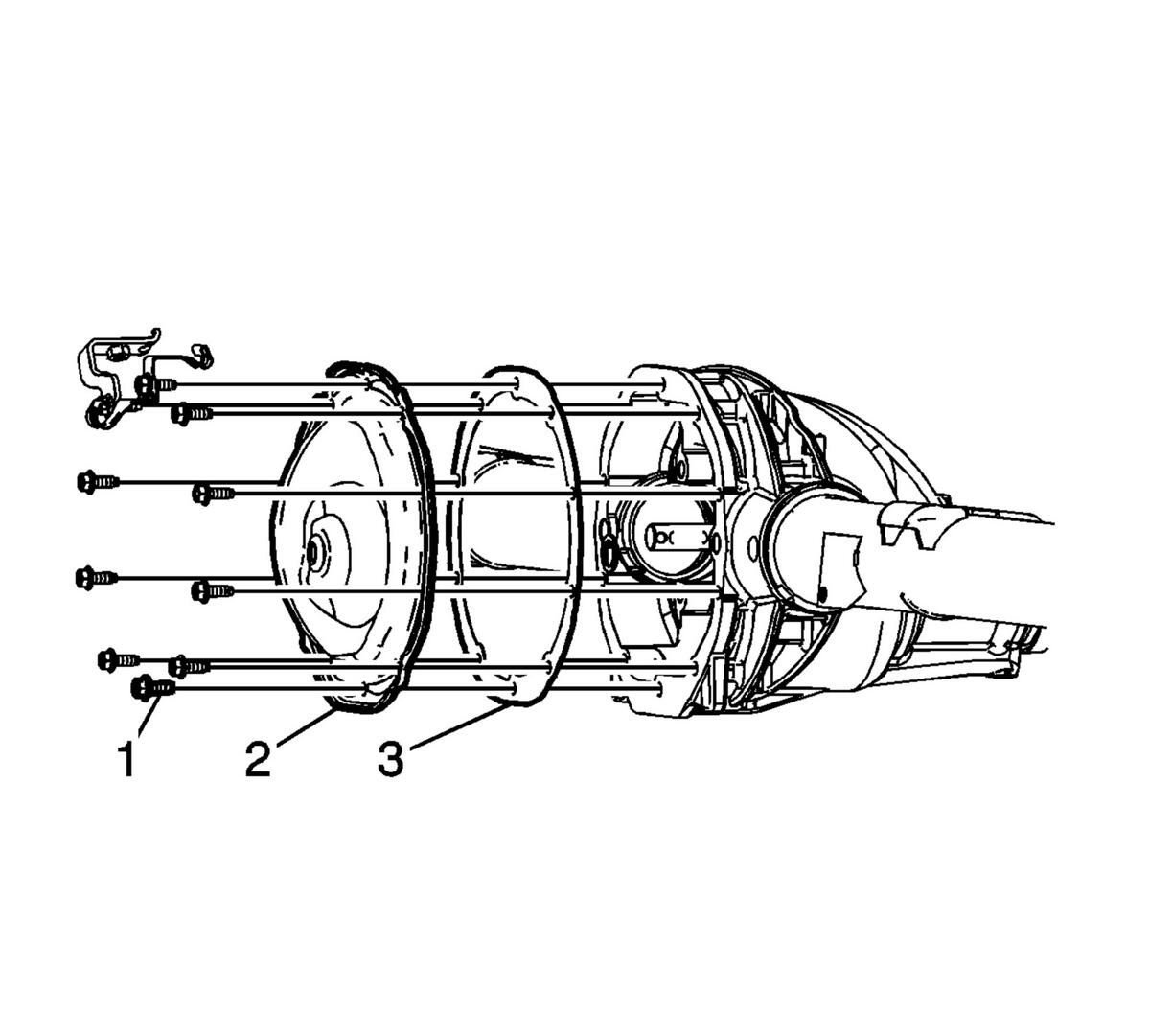

    3. Fig 2: View Of Rear Axle Cover & Bolts
    GM1689173Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear axle cover bolts (1).
  4. Remove the axle housing cover (2).
  5. Remove the gasket (3).
