Wiper/Washer Schematics

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

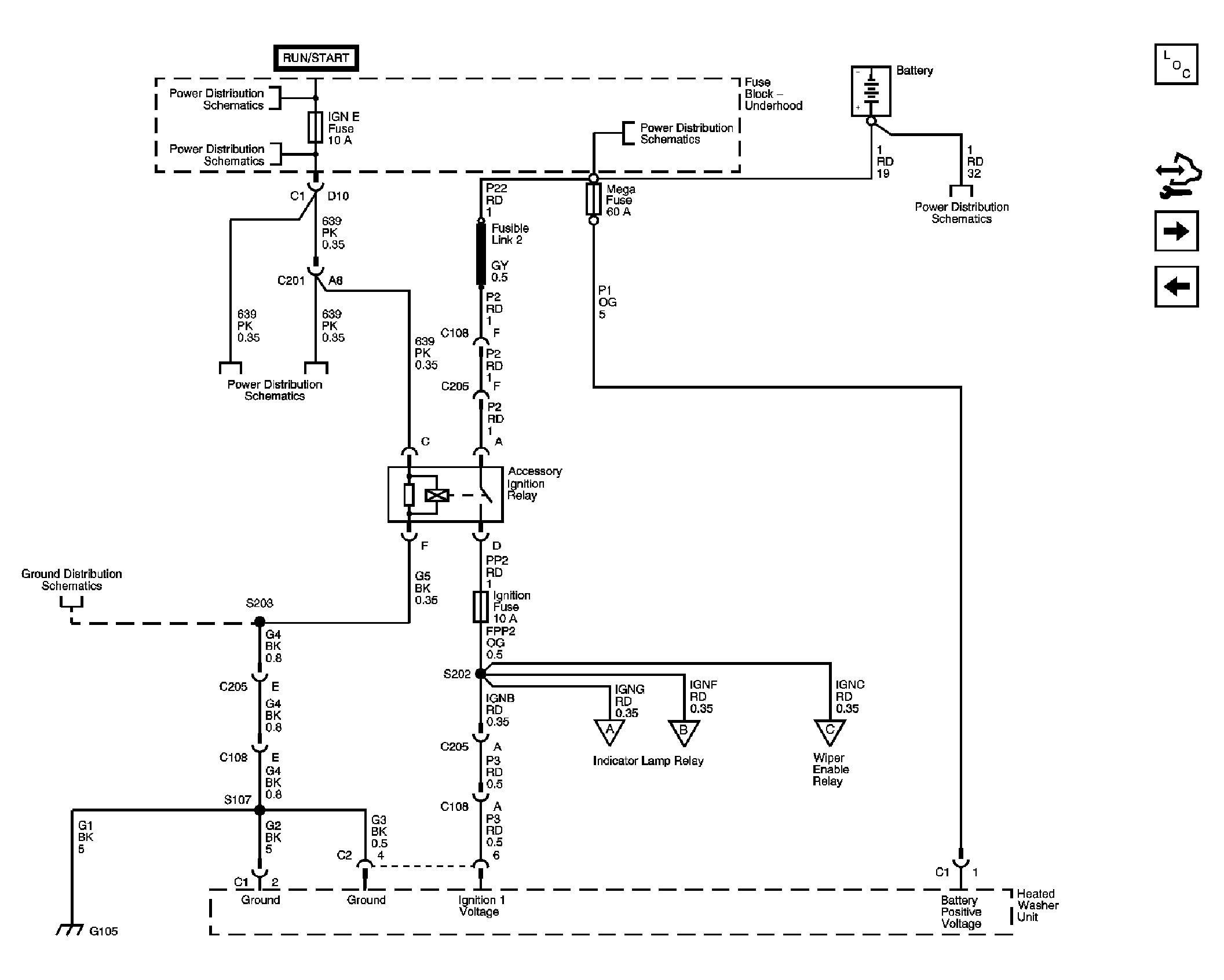

Fig 1: Front Wiper/Washer Power, Ground, and Motors Schematic

Courtesy of GENERAL MOTORS CORP.

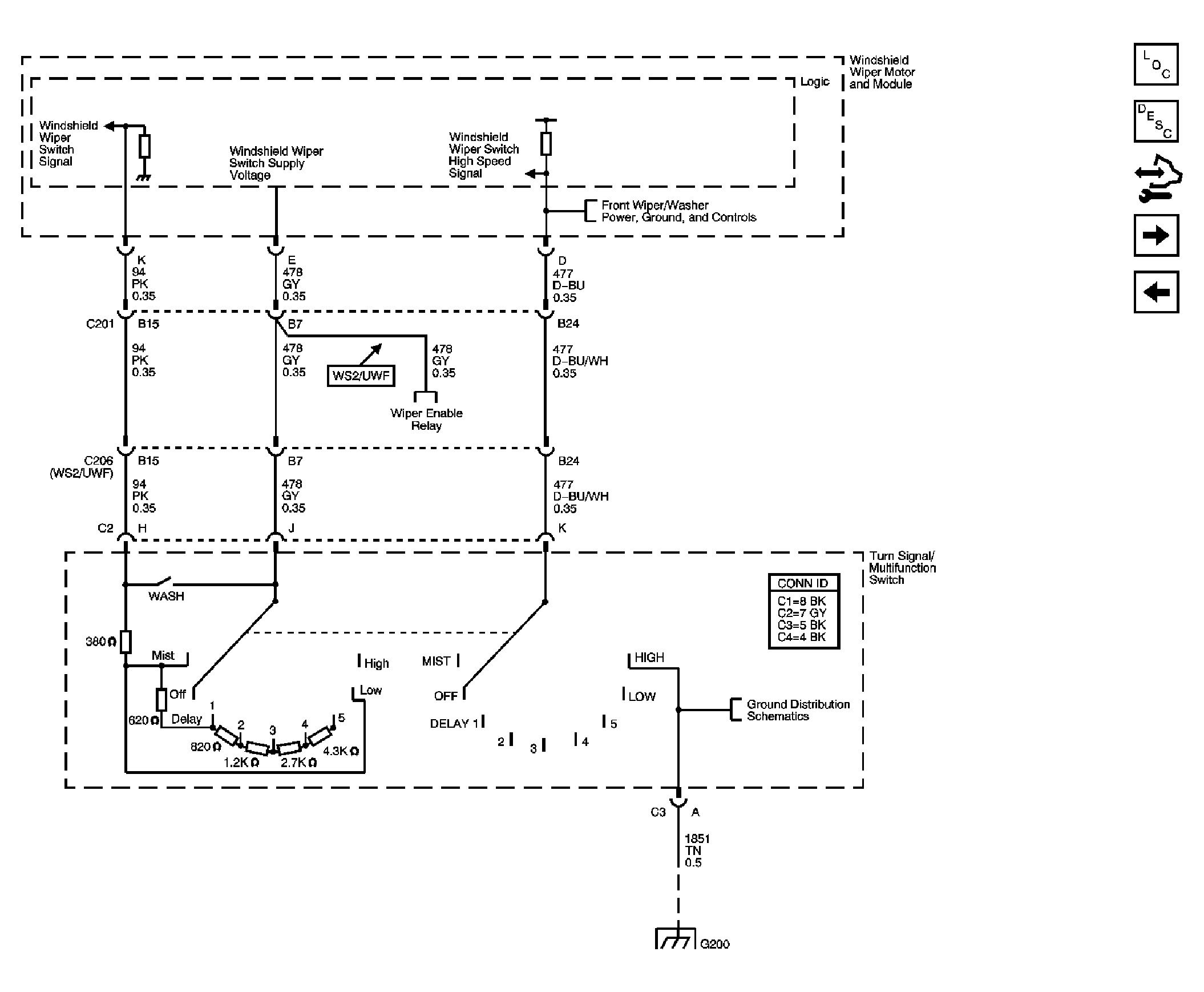

Fig 2: Front Wiper/Washer Controls Schematic

Courtesy of GENERAL MOTORS CORP.

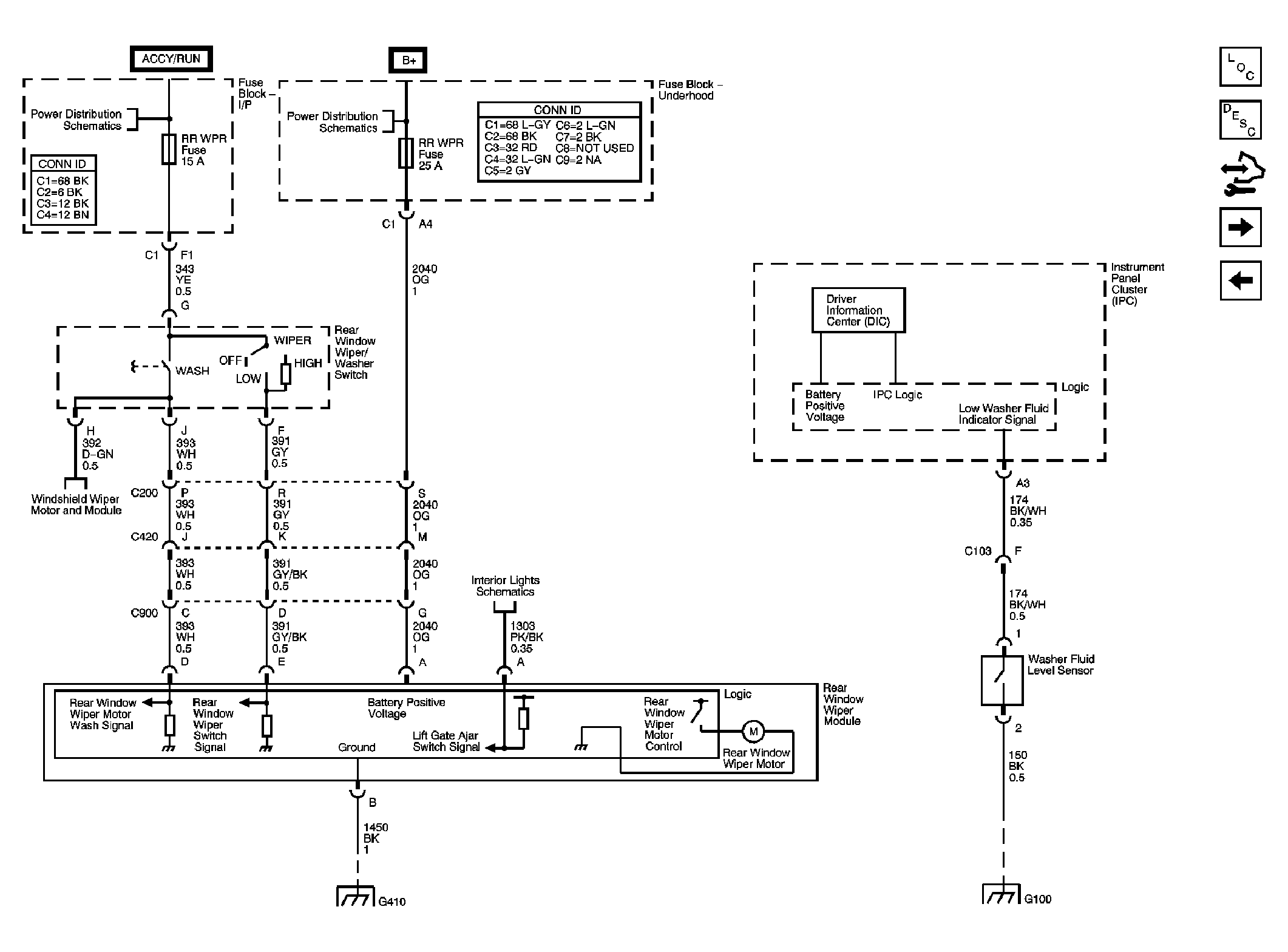

Fig 3: Rear Wiper Controls and Washer Fluid Level Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

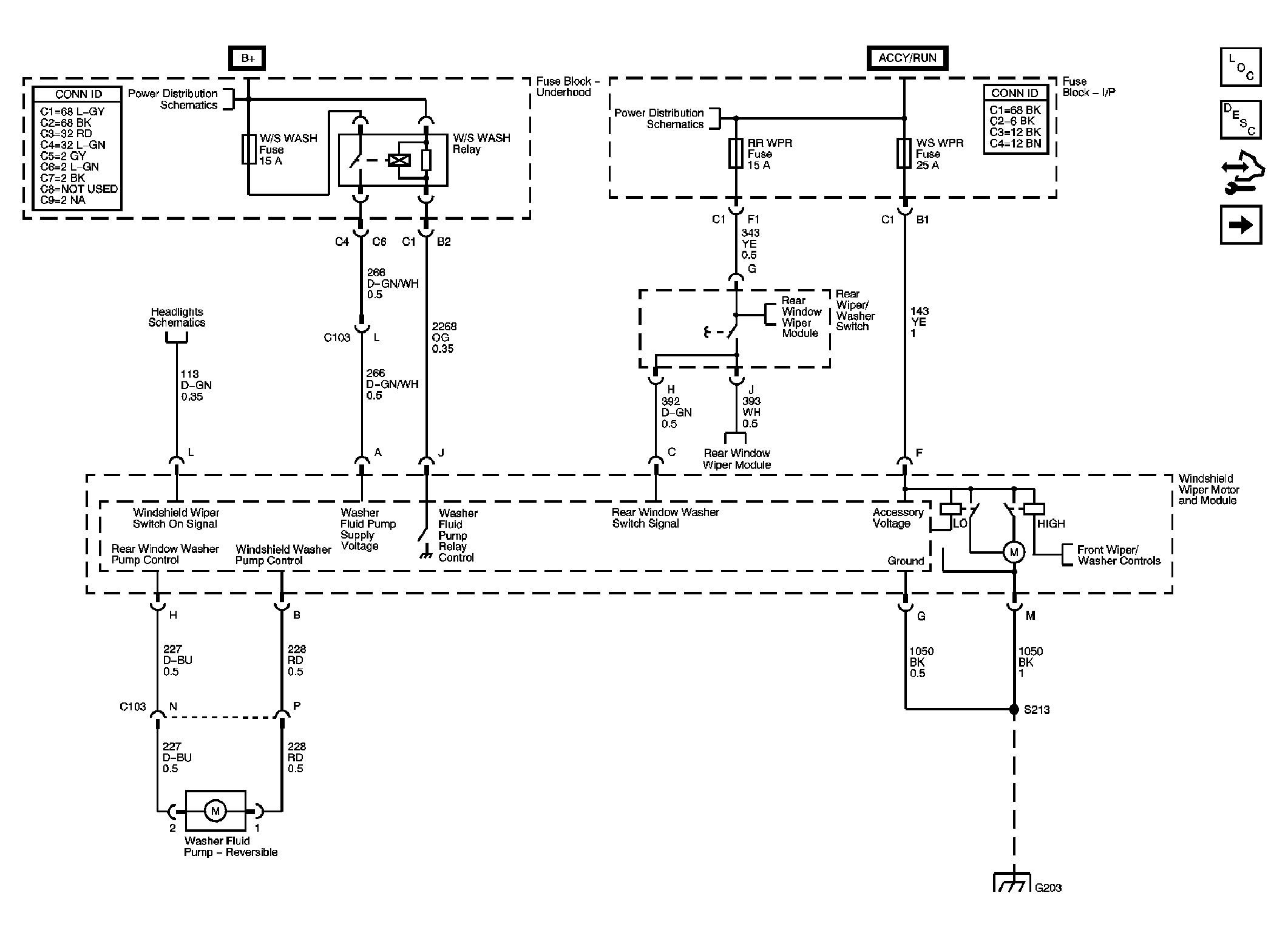

Fig 4: Heated Washers Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

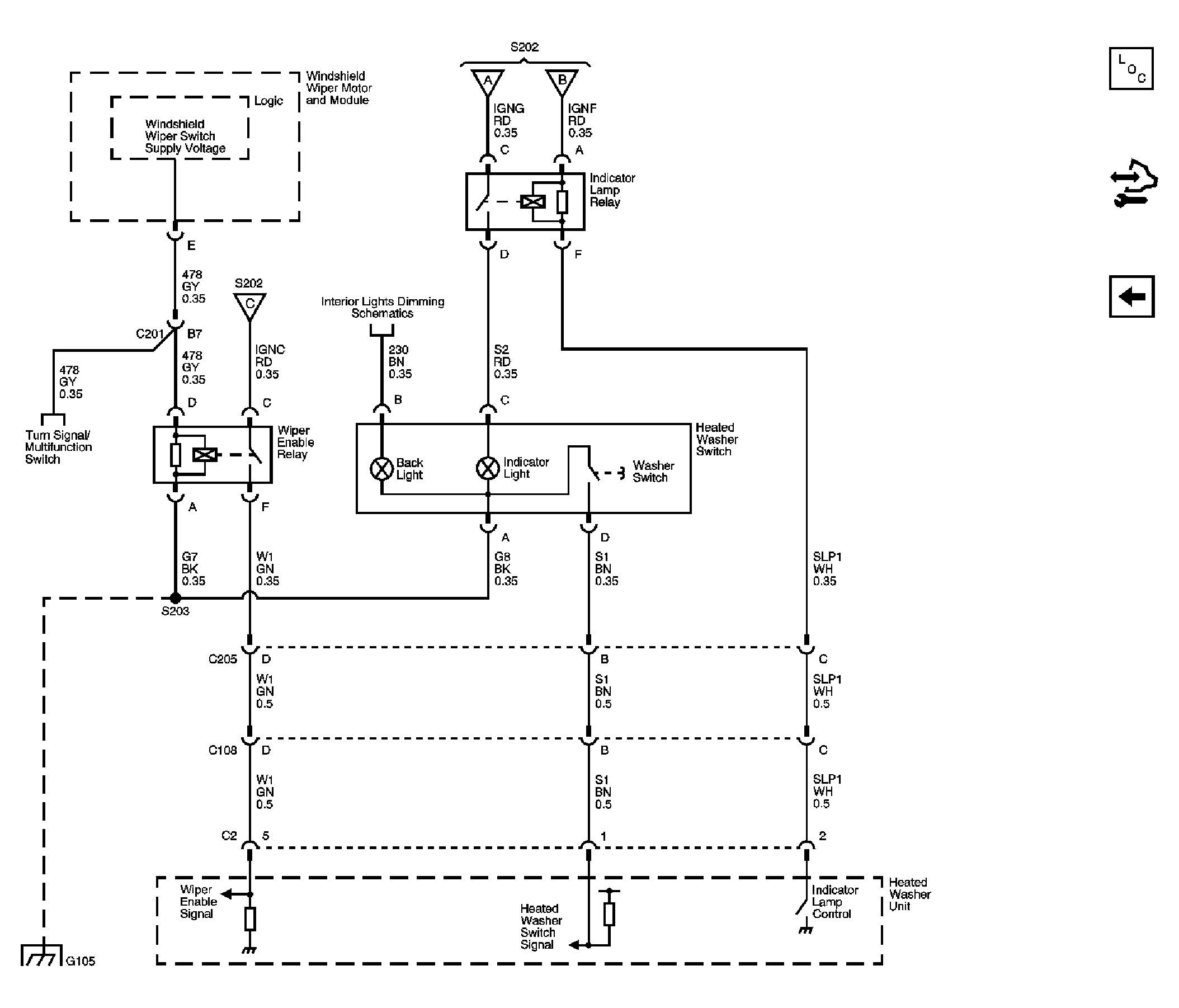

Fig 5: Heated Washers Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.
