Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim bezel. Refer to Instrument Panel Accessory Trim Plate Replacement - Left Side .

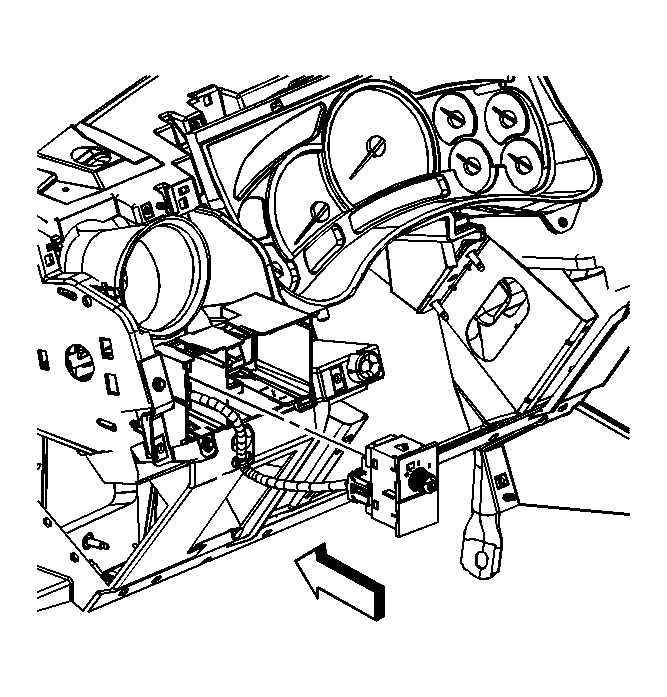

    2. Fig 1: View Of Rear Wiper/Washer Switch
    GM832834Courtesy of GENERAL MOTORS CORP.
  2. Insert a flat bladed tool at the top and bottom of the switch assembly in order to remove the switch assembly.
  3. Pull out the switch assembly in order to gain access to the connector.
  4. Disconnect the electrical connector.
  5. Remove the switch from the I/P.
