Heated Seat Module - Rear C2 (KA6)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

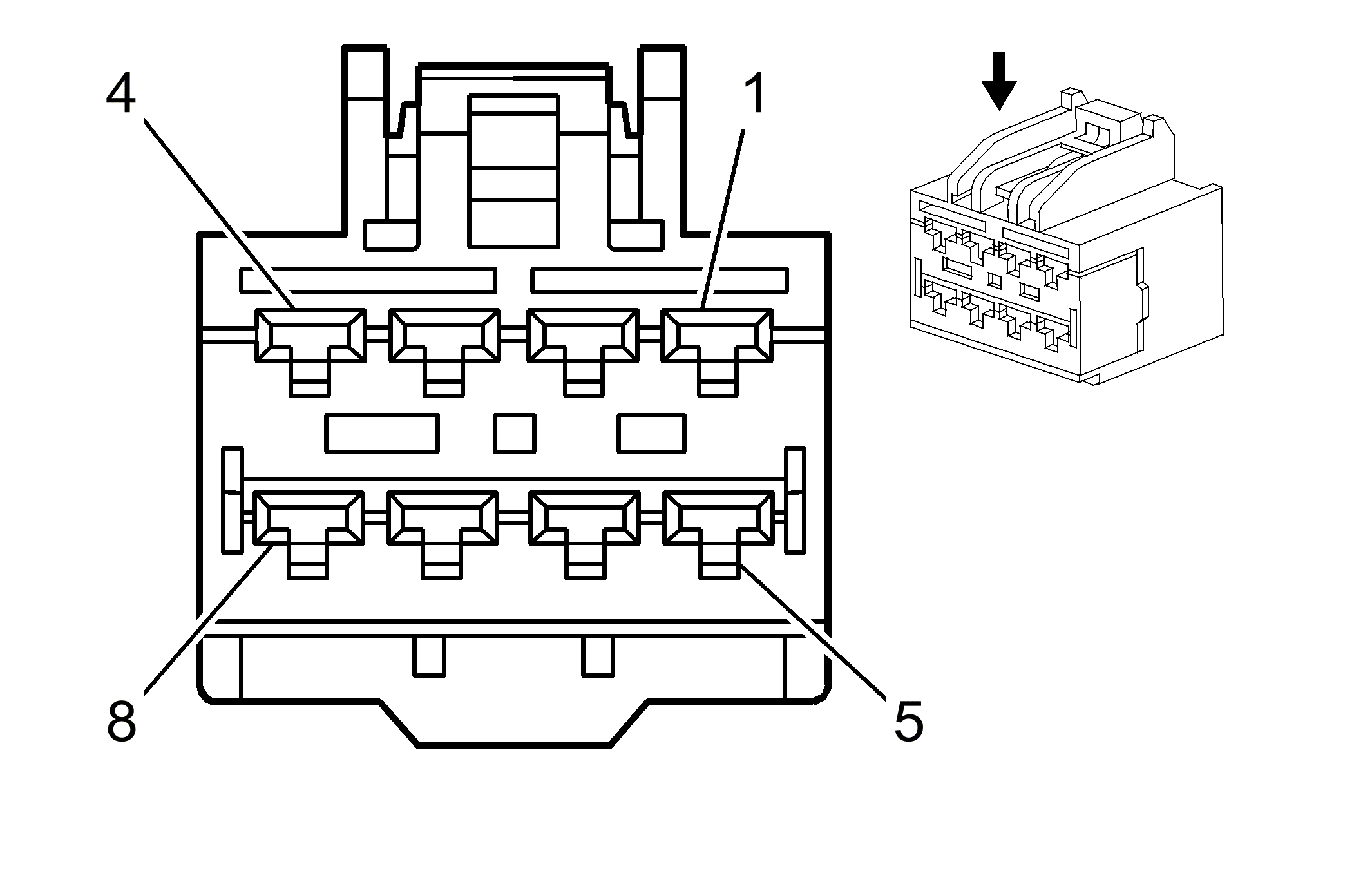

Fig 1: Heated Seat Module - Rear C2 (KA6) Connector End View
GM1664463Courtesy of GENERAL MOTORS CORP.
Heated Seat Module - Rear C2 (KA6) Connector Parts Information

Connector Part Information
  • OEM: 6098-4713
  • Service: 88988652
  • Description: 8-Way F (BK)
Terminal Part Information
  • Pins: TBD
  • Terminal/Tray: TBD
  • Core/Insulation Crimp: TBD
  • Release Tool/Test Probe: TBD
Heated Seat Module - Rear C2 (KA6) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 RD/WH 4840 Battery Positive Voltage
2 BK 1150 Ground
3 - - Not Used
4 BK 1150 Ground
5 - - Not Used
6 D-BU 2298 Low Reference
7 - - Not Used
8 WH/BK 2301 Low Reference
