Heated/Cooled Seat Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

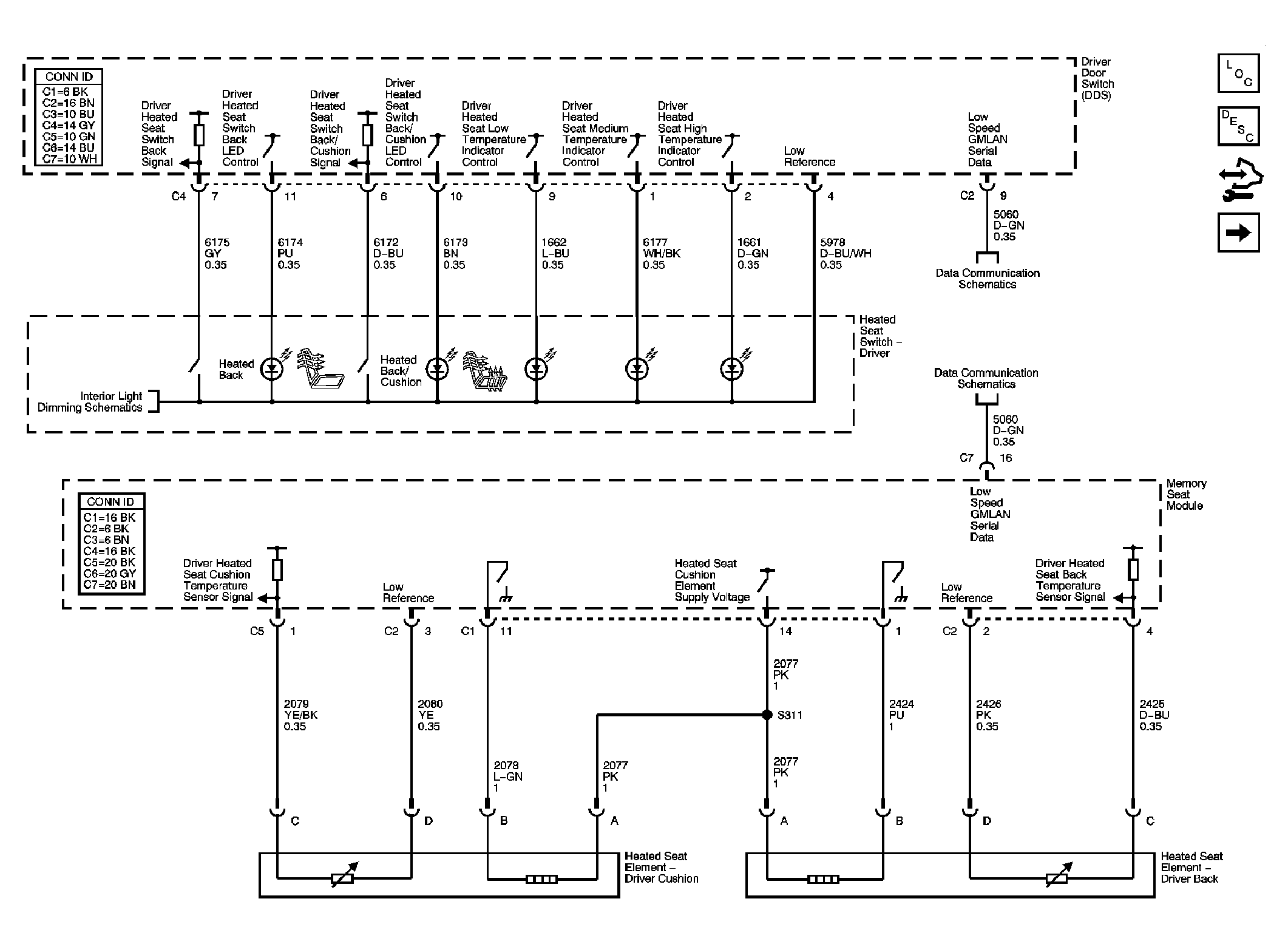

Fig 1: Heated Seat- Driver - Except KB6 Schematic

Courtesy of GENERAL MOTORS CORP.

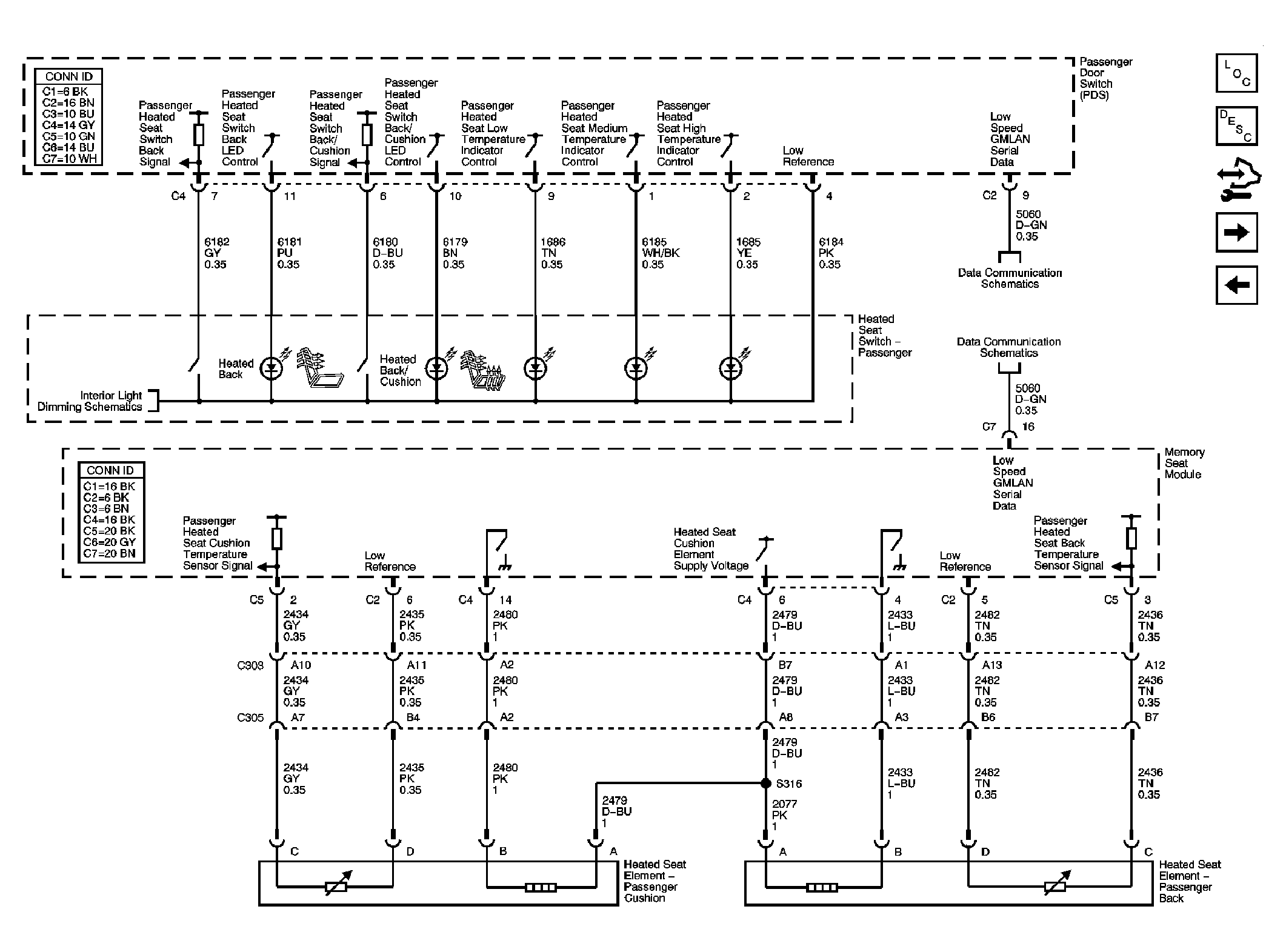

Fig 2: Heated Seat- Passenger - Except KB6 Schematic

Courtesy of GENERAL MOTORS CORP.

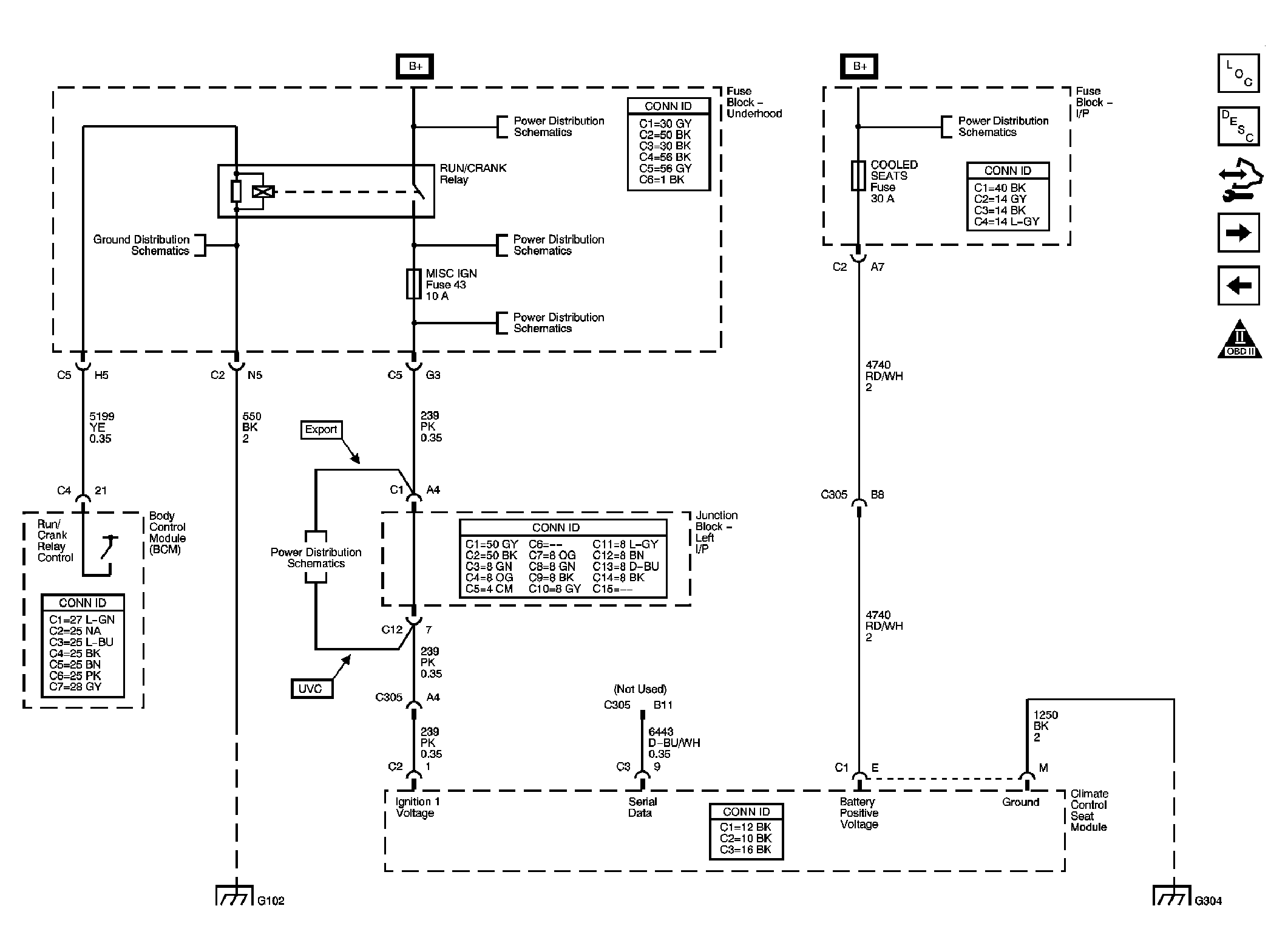

Fig 3: Heated/Cooled Seat Module Power and Ground - KB6 Schematic

Courtesy of GENERAL MOTORS CORP.

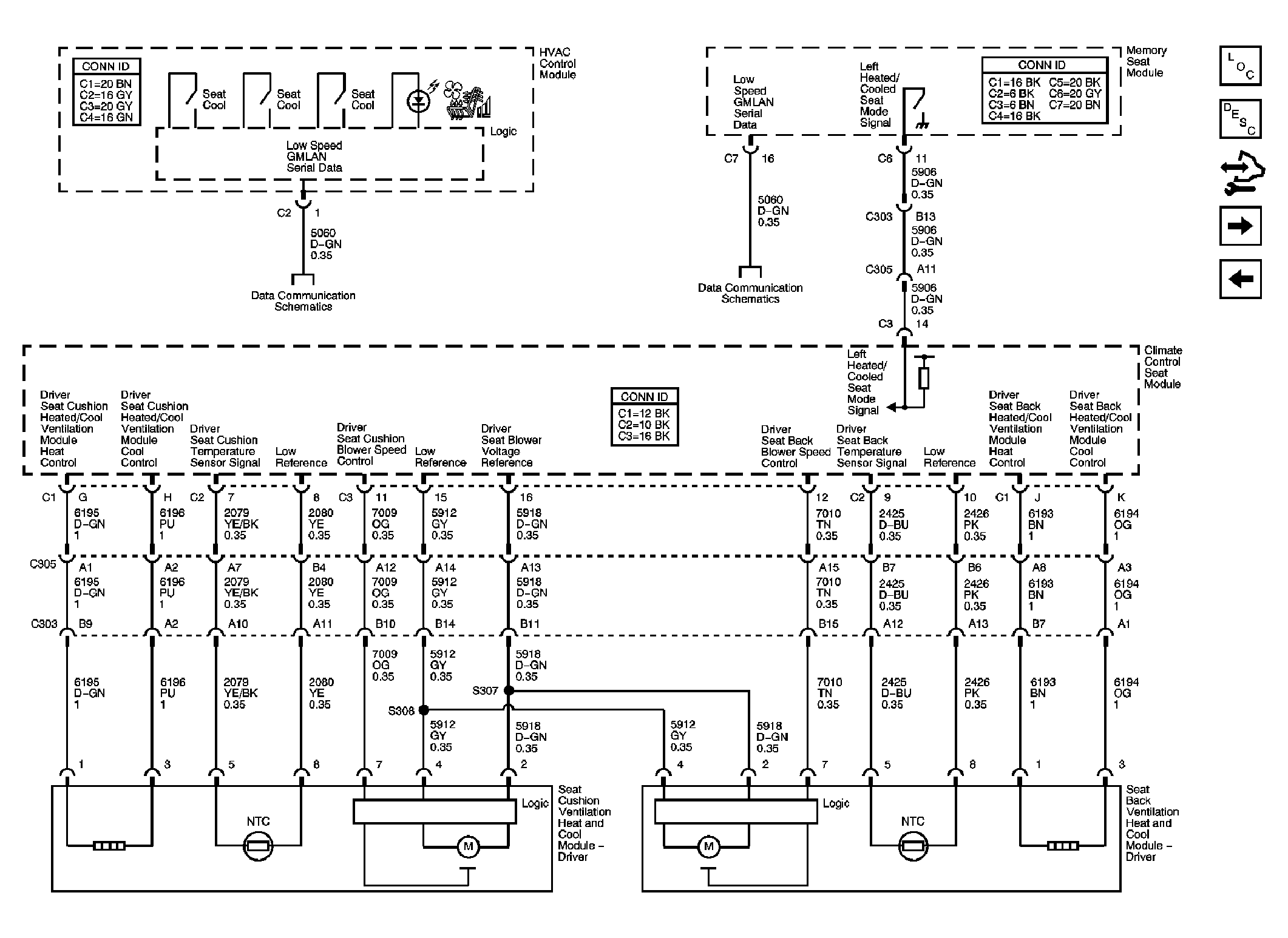

Fig 4: Heated/Cooled Seat - Driver - KB6 Schematic

Courtesy of GENERAL MOTORS CORP.

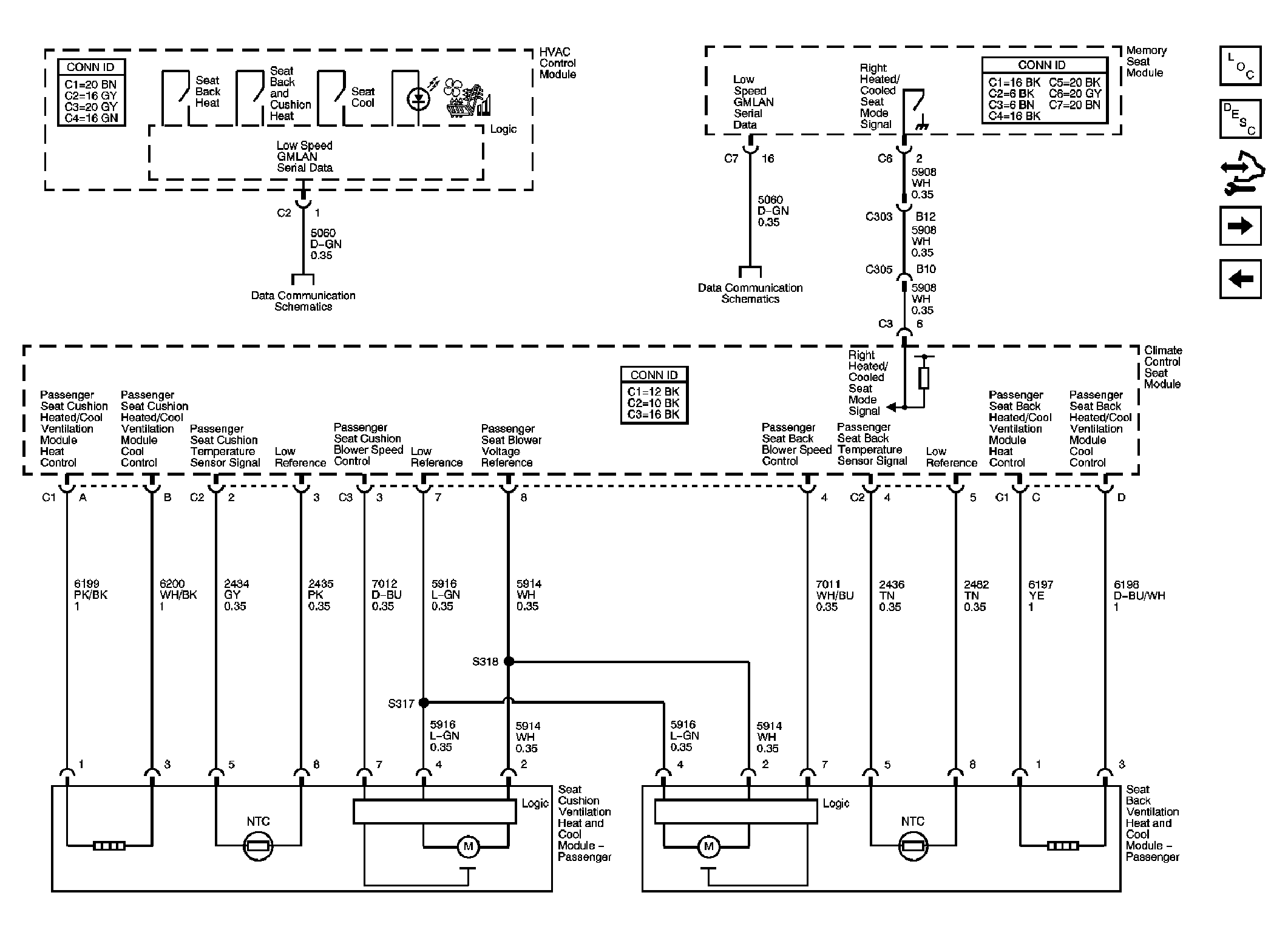

Fig 5: Heated/Cooled Seat - Passenger - KB6 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Heated Seat - Rear - KA6 Schematic

Courtesy of GENERAL MOTORS CORP.
