Splice Pack SP201

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

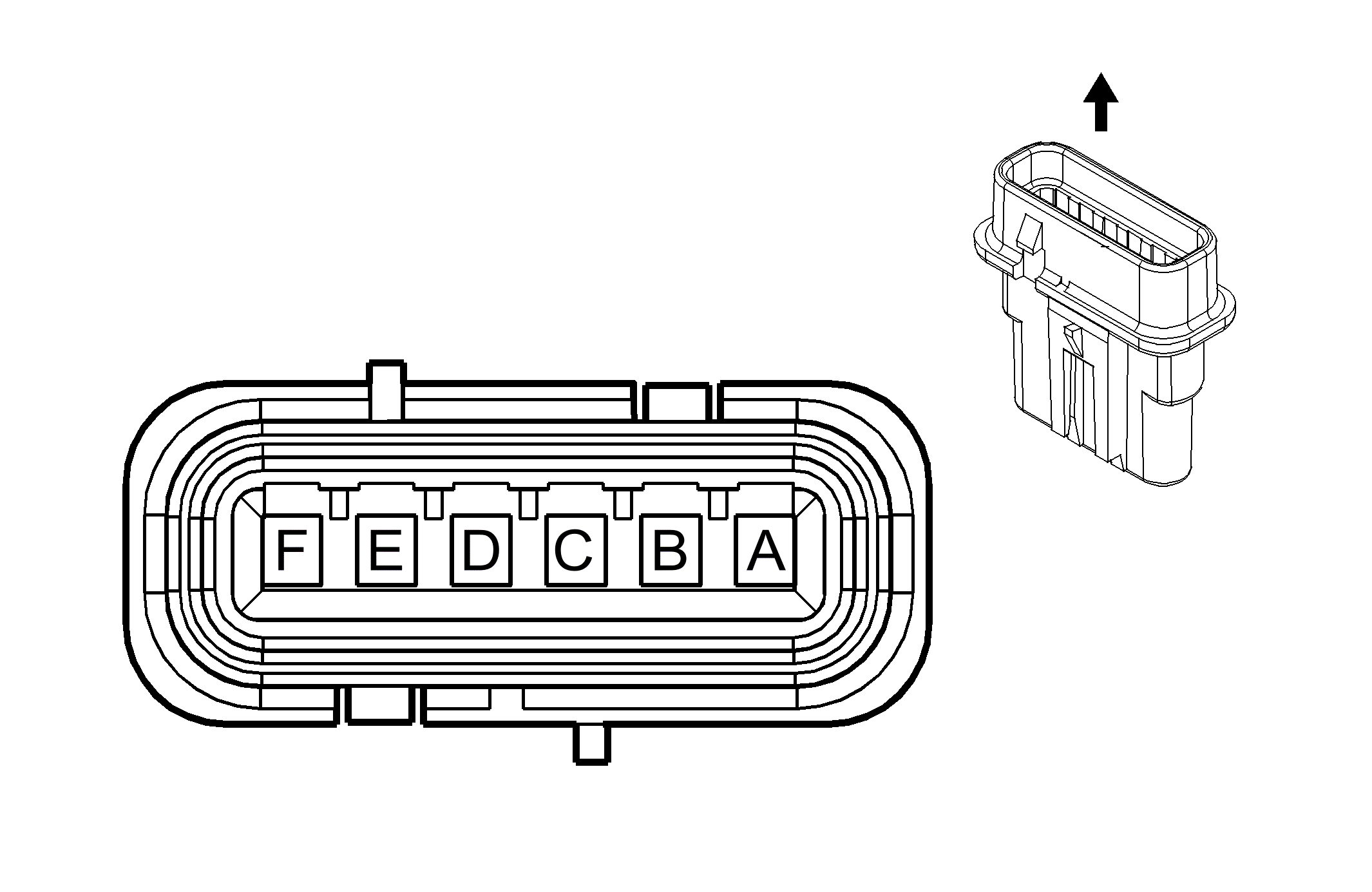

Fig 1: Splice Pack SP201 Connector End View
GM726823Courtesy of GENERAL MOTORS CORP.
Splice Pack SP201 Connector End View

Connector Part Information
  • OEM: 12191910
  • Service: 12191910
  • Description: 6-Way F GT 150 Splice Saver Sealed 4.0 (BK)
Terminal Part Information
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Splice Pack SP201 Connector Terminal Identification

Pin Wire Color Circuit No. Function
A D-GN 5060 Low Speed GMLAN Serial Data
B D-GN 5060 Low Speed GMLAN Serial Data
C D-GN 5060 Low Speed GMLAN Serial Data
D - - Not Used
E D-GN 5060 Low Speed GMLAN Serial Data
F - - Not Used
