Power and Grounding Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Left Side of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Power Brake Booster
3	Windshield Washer Solvent Heater
4	Fuse Block - Underhood
5	Engine Control Module (ECM)
6	Transmission Control Module (TCM)
7	Brake Booster Vacuum Sensor
8	Brake Fluid Level Switch

Fig 2: Below the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	I/P Cluster Trim
3	Floor Panel
4	Junction Block - Left I/P
5	Body Control Module (BCM)
6	Transfer Case Shift Control Module
7	Fuse Block - I/P

Fig 3: Right side of the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Junction Block - Right I/P

Fig 4: G100 and G101

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator
2	G100
3	Chassis
4	G101

Fig 5: G102

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Pulley
2	Exhaust Manifold
3	G102

Fig 6: G103

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G103
2	Throttle Body
3	Engine Front Cover

Fig 7: View Of G107, G108, G110, G111, & G104

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G107
2	G111
3	G108
4	G110
5	Brake Booster Assembly
6	Fuse Block - Underhood
7	G104 (8Y9)

Fig 8: G200

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Panel
2	G200

Fig 9: G201

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G201
2	I/P Trim
3	LF Fender

Fig 10: G300

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis
2	G300

Fig 11: View Of G301, G302, G303, & G304

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G303
2	G302
3	G304
4	G301

Fig 12: G305

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank
2	Frame
3	G305

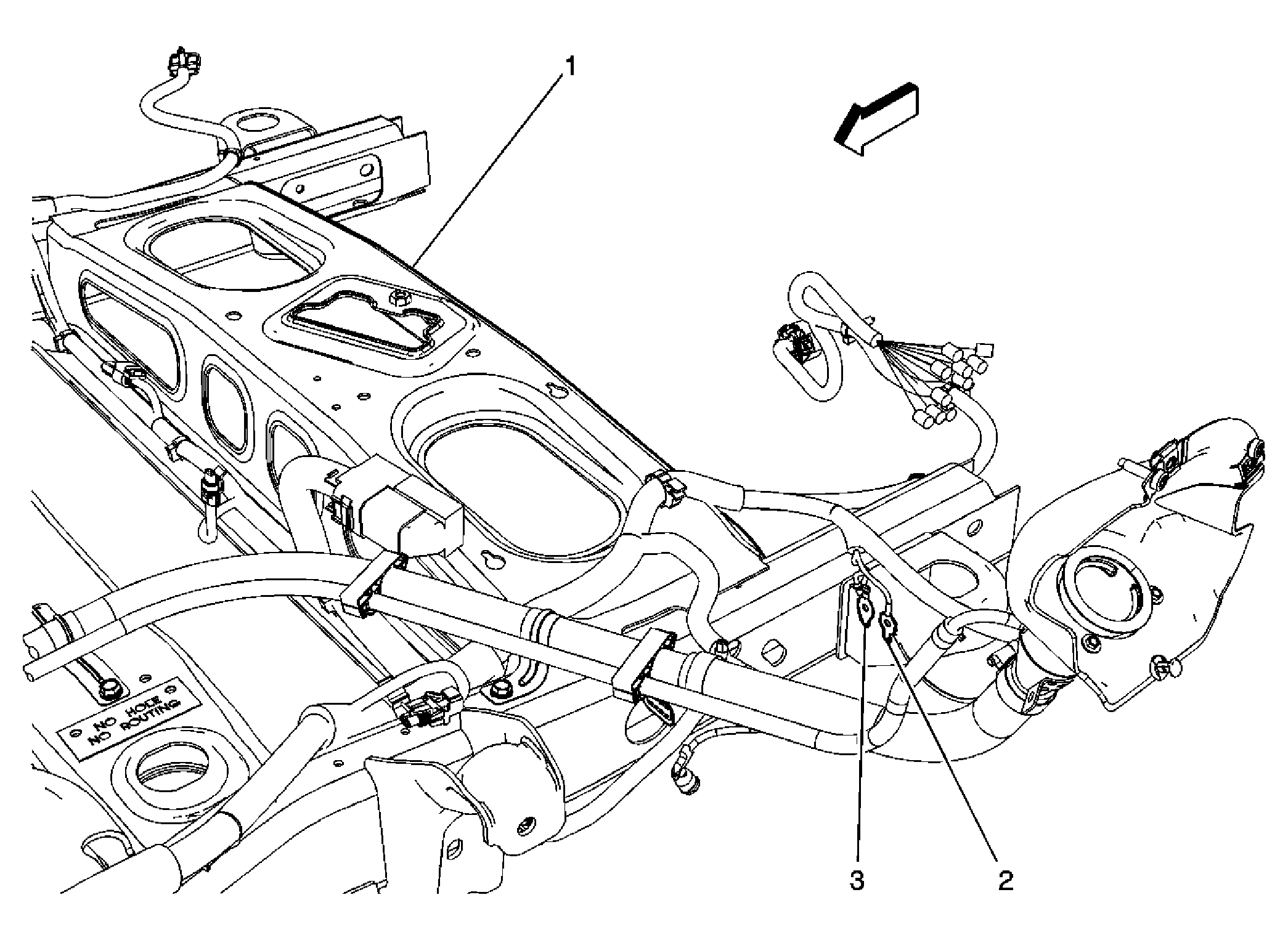

Fig 13: G400 & G401

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis
2	G400
3	G401

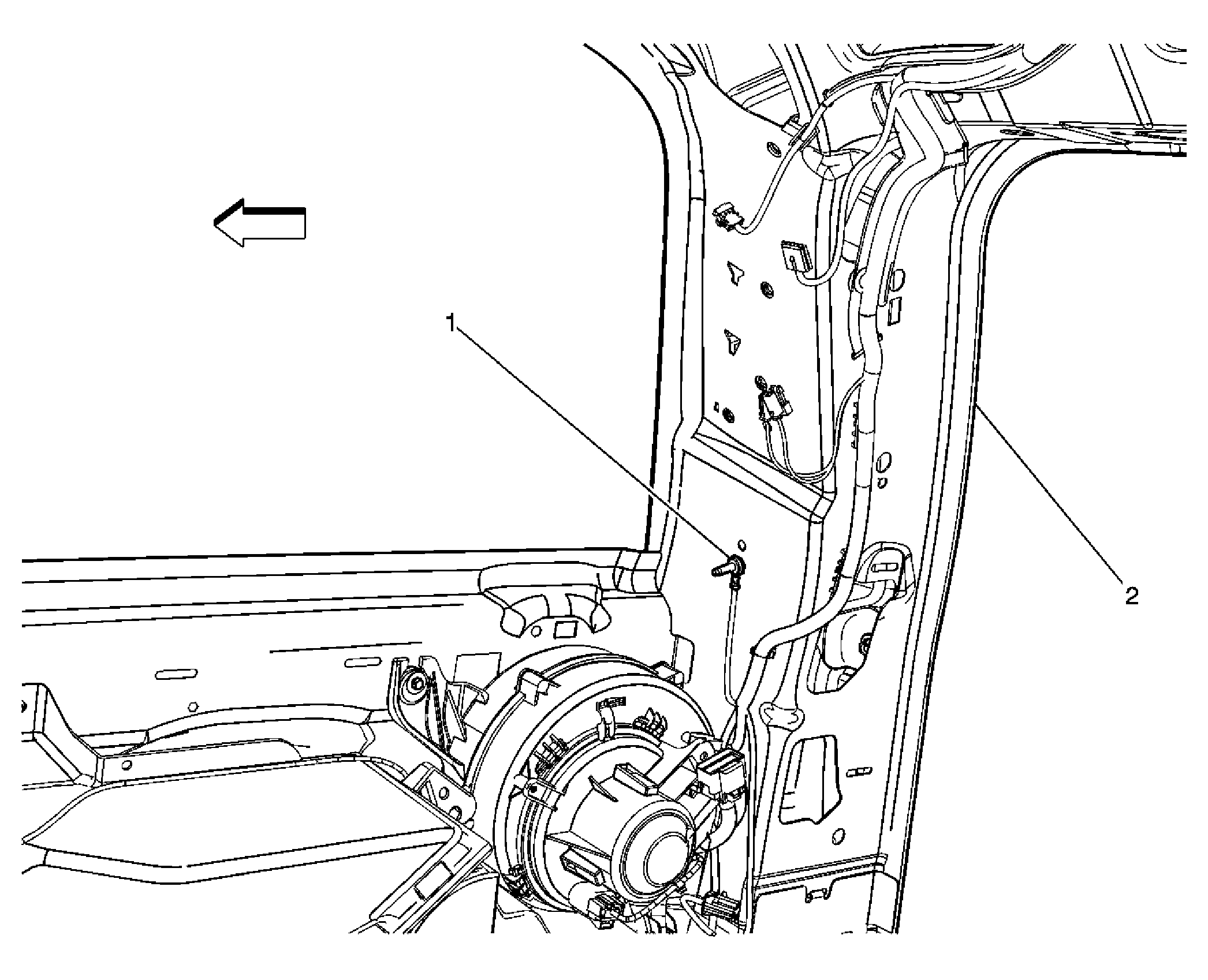

Fig 14: G402

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G402
2	RR D - Pillar
