Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not remove the pigtail from either the heated oxygen sensor (HO2S) or the oxygen sensor (O2S). Removing the pigtail or the connector will affect sensor operation.
Handle the oxygen sensor carefully. Do not drop the HO2S. Keep the in-line electrical connector and the louvered end free of grease, dirt, or other contaminants. Do not use cleaning solvents of any type.
Do not repair the wiring, connector or terminals. Replace the oxygen sensor if the pigtail wiring, connector, or terminal is damaged.
This external clean air reference is obtained by way of the oxygen sensor signal and heater wires. Any attempt to repair the wires, connectors, or terminals could result in the obstruction of the air reference and degraded sensor performance.
The following guidelines should be used when servicing the heated oxygen sensor:
  • Do not apply contact cleaner or other materials to the sensor or vehicle harness connectors. These materials may get into the sensor causing poor performance.
  • Do not damage the sensor pigtail and harness wires in such a way that the wires inside are exposed. This could provide a path for foreign materials to enter the sensor and cause performance problems.
  • Ensure the sensor or vehicle lead wires are not bent sharply or kinked. Sharp bends or kinks could block the reference air path through the lead wire.
  • Do not remove or defeat the oxygen sensor ground wire, where applicable. Vehicles that utilize the ground wired sensor may rely on this ground as the only ground contact to the sensor. Removal of the ground wire will cause poor engine performance.
  • Ensure that the peripheral seal remains intact on the vehicle harness connector in order to prevent damage due to water intrusion. The engine harness may be repaired using Packard's Crimp and Splice Seals Terminal Repair Kit. Under no circumstances should repairs be soldered since this could result in the air reference being obstructed.

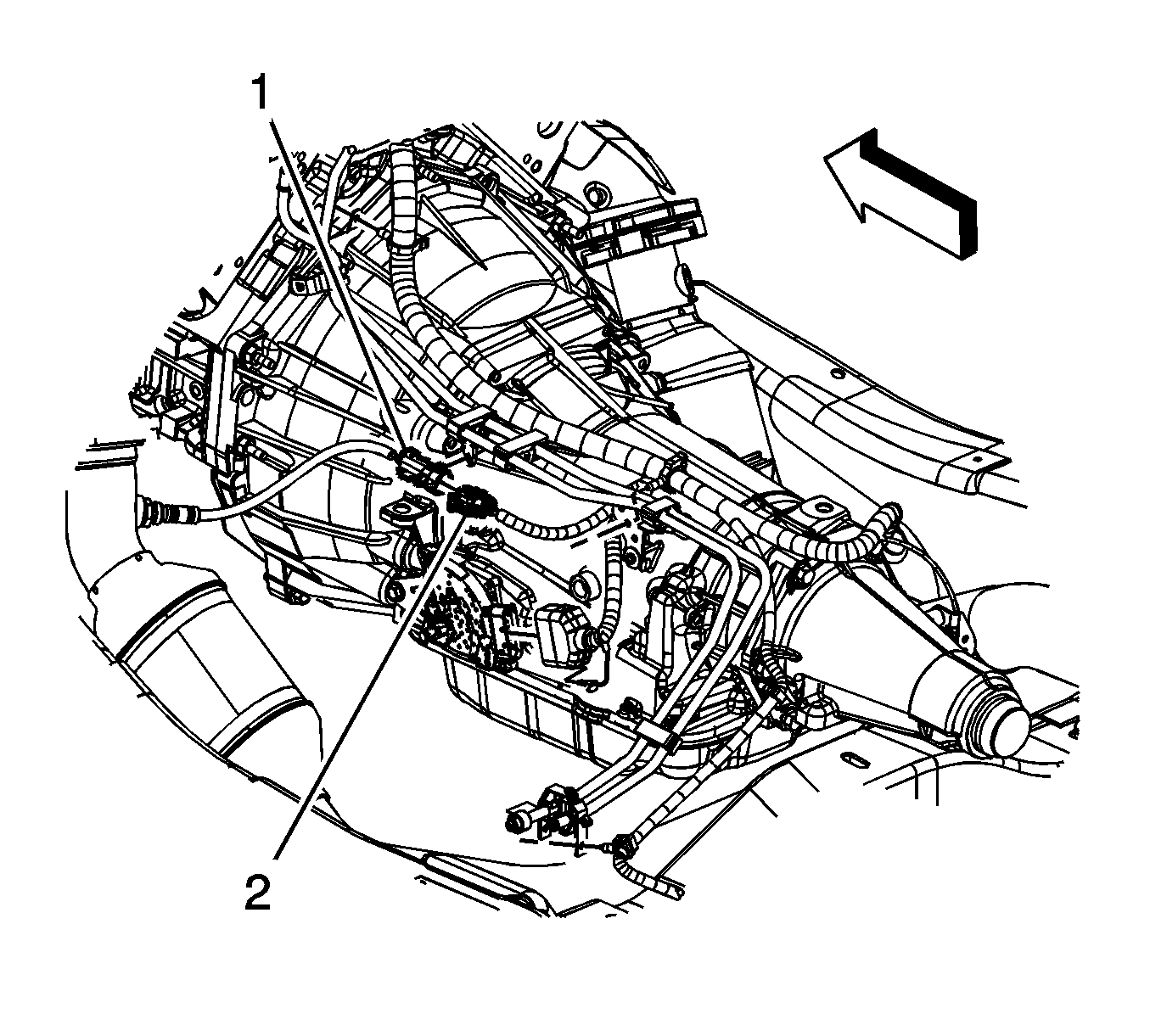

    Fig 1: View Of Left Front HO2S Electrical Connector Clip & Engine Wiring Harness Electrical Connector
    GM1704004Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Unbolt the front propeller shaft from the front differential, if equipped with four wheel drive (4WD). Refer to Front Propeller Shaft Replacement .
  3. For vehicles equipped with a 4L60-E/4L70-E automatic transmission perform the following steps, for vehicles equipped with a 6L80-E automatic transmission proceed to step 7.
  4. Remove the connector position assurance (CPA) retainer.
  5. Disconnect the engine wiring harness electrical connector (2) from the HO2S.
  6. Remove the HO2S electrical connector clip (1) from the fuel line clip.

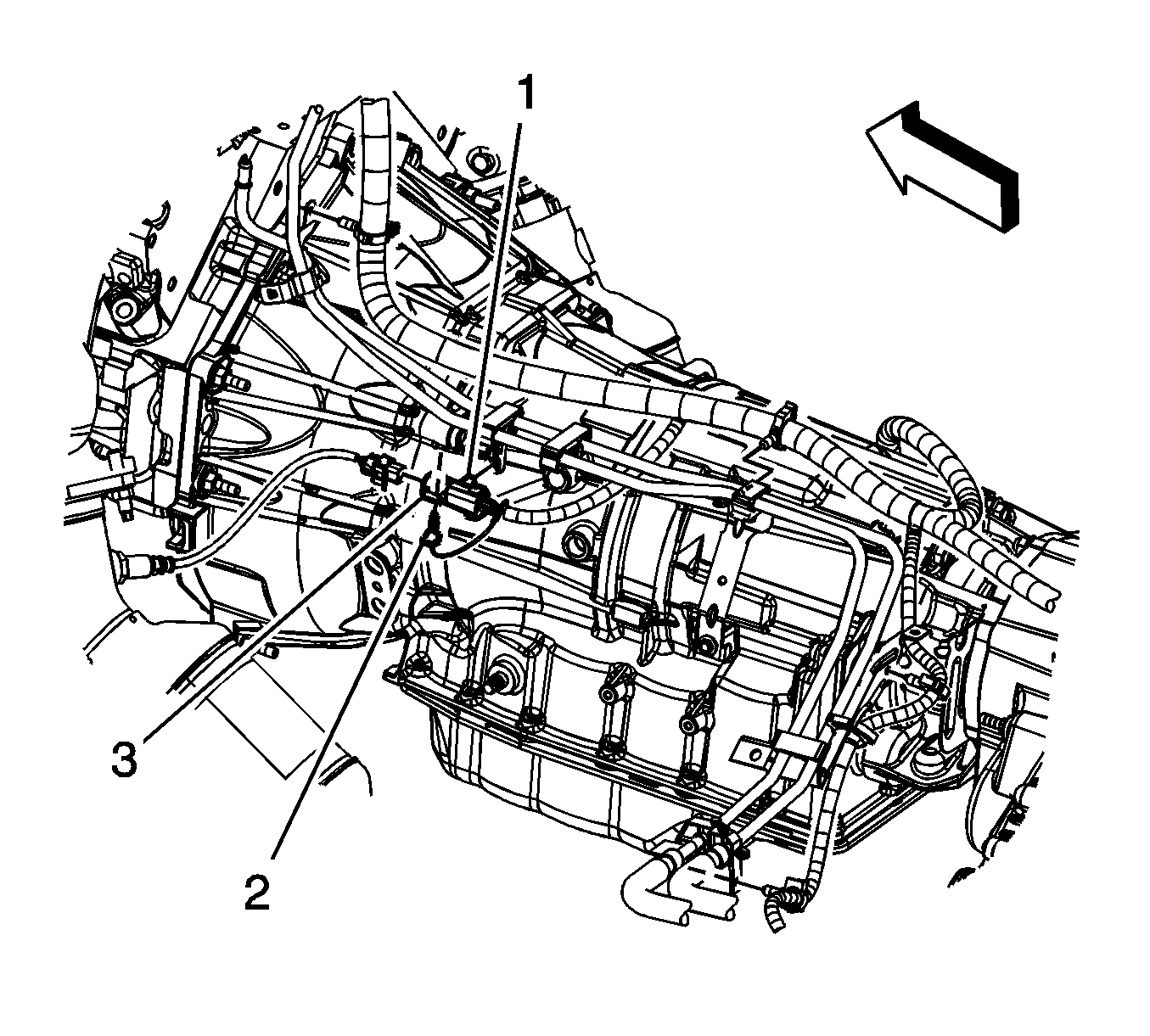

    7. Fig 2: View Of Engine Wiring Harness Electrical Connector Clip & Electrical Connector
    GM1704002Courtesy of GENERAL MOTORS CORP.
  7. Remove the CPA retainer (2).
  8. Remove the engine wiring harness electrical connector clip (1) from the fuel line clip.
  9. Disconnect the engine wiring harness electrical connector (3) from the HO2S.
    10. Fig 3: View Of Catalytic Converter Assembly HO2S's
    GM1704008Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Excessive Force and Oxygen Sensor Notice .
  10. Remove the HO2S (1 or 2).
