Fuel Tank Draining (Single Tank)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to Gasoline/Gasoline Vapors Caution .

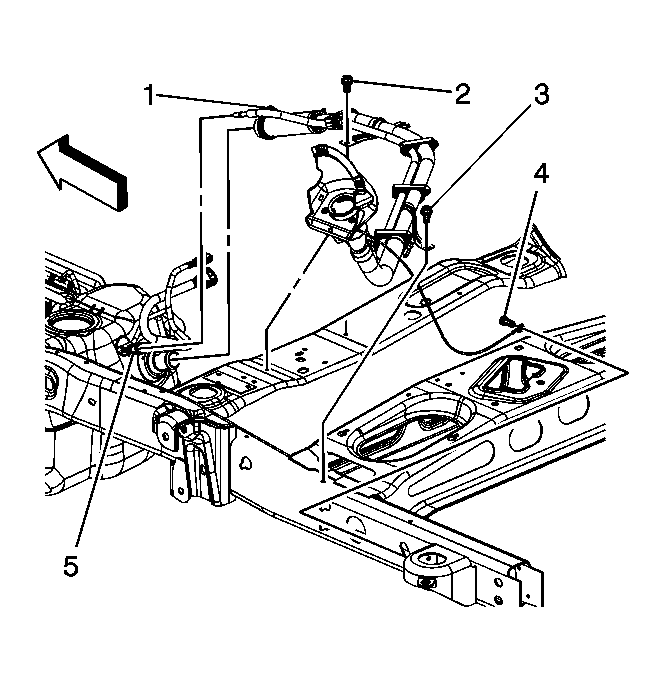

Fig 1: View Of Fuel Fill Hose, Pipe Bracket Bolts & Quick Connect Fitting

Courtesy of GENERAL MOTORS CORP.

Loosen the fuel fill cap in order to relieve the fuel tank vapor pressure.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Loosen the fuel fill hose clamp (1).
Remove the fill pipe bracket bolts (2, 3) in order to remove the fill hose from the fuel tank.
Remove the fuel fill hose from the fuel tank.
Insert the hose from the pump devise into the fuel tank.
Using a hand or air operated pump device, drain as much fuel from the tank as possible.
