Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

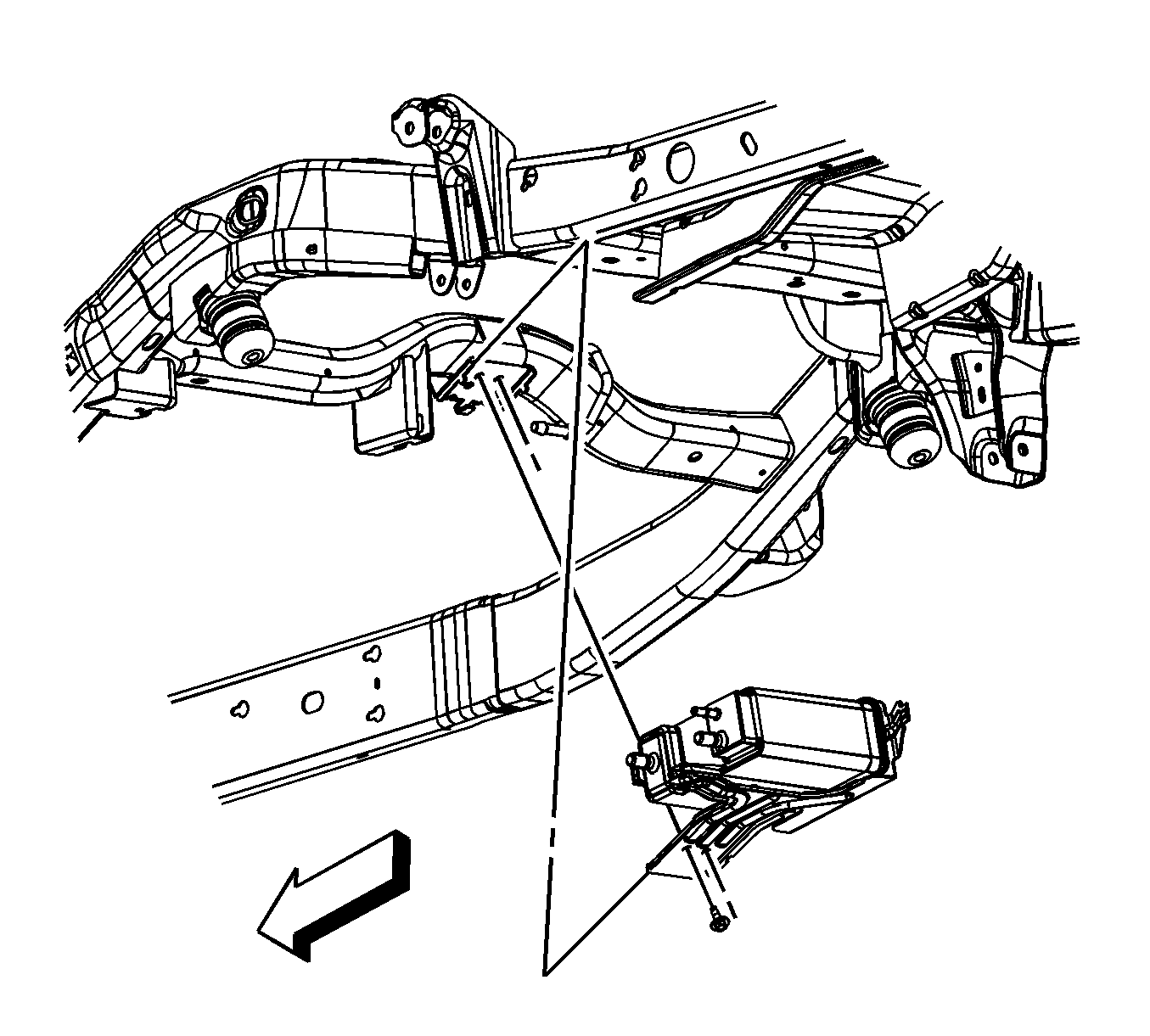

    Fig 1: View Of EVAP Canister, Bracket & Bolts
    GM1706540Courtesy of GENERAL MOTORS CORP.
  1. If necessary, install the EVAP canister to the bracket.
    2. NOTE: Refer to Fastener Notice .
  2. If necessary, install the EVAP canister to bracket bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

  3. Position the EVAP canister.

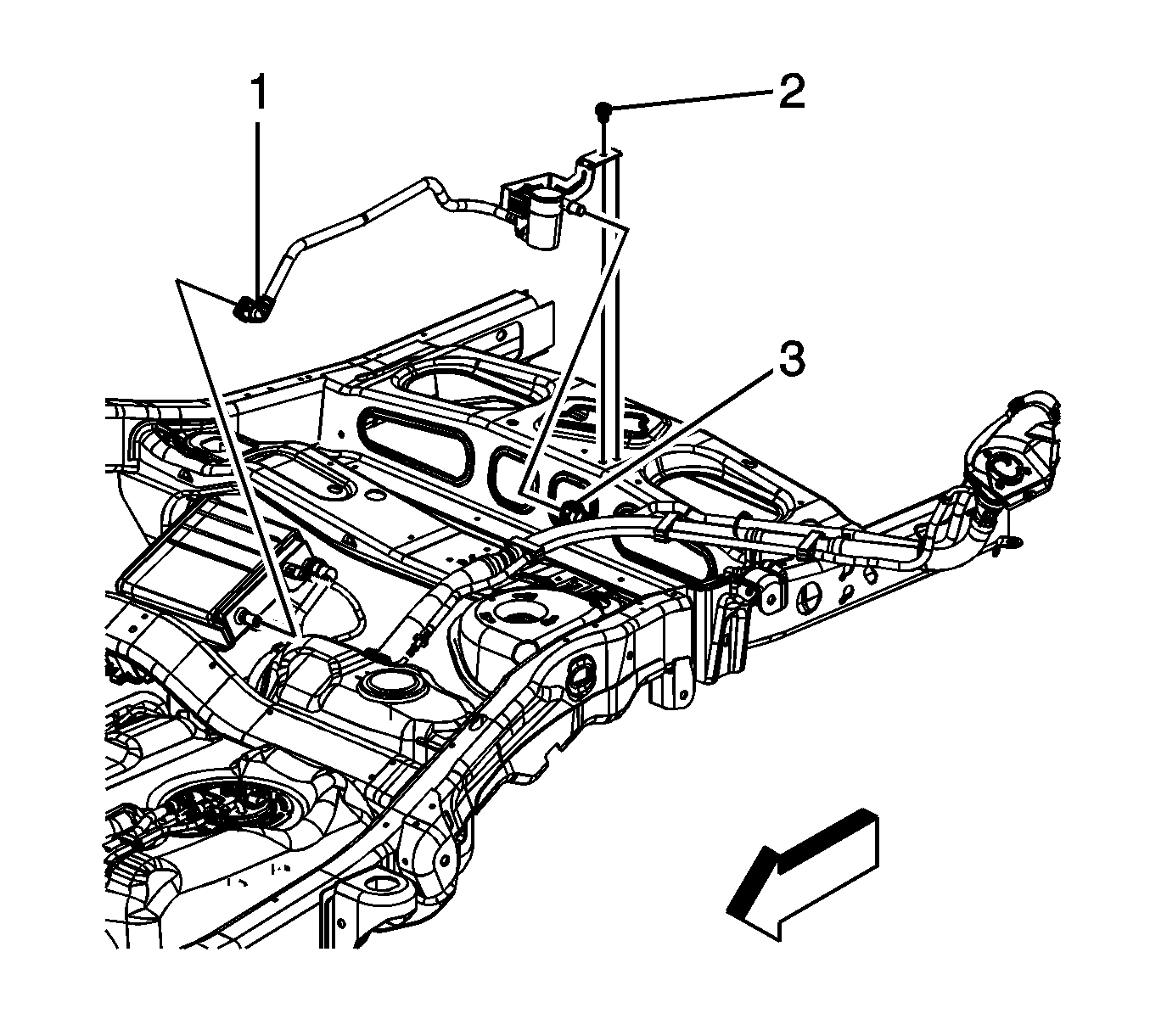

    4. Fig 2: View Of Quick Connect Fittings
    GM1706533Courtesy of GENERAL MOTORS CORP.
  4. Connect the EVAP canister vent solenoid quick connecting fitting (1) to the EVAP canister. Refer to Quick Connect Fitting Service - Plastic Collar .
    5. Fig 3: View Of Fuel Tank EVAP Lines & Canister
    GM1704492Courtesy of GENERAL MOTORS CORP.
  5. Connect the fuel tank EVAP line quick connect fittings (1) to the EVAP canister. Refer to Quick Connect Fitting Service - Plastic Collar .
  6. Install the EVAP canister bracket bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  7. Lower the vehicle.
