Engine Controls Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

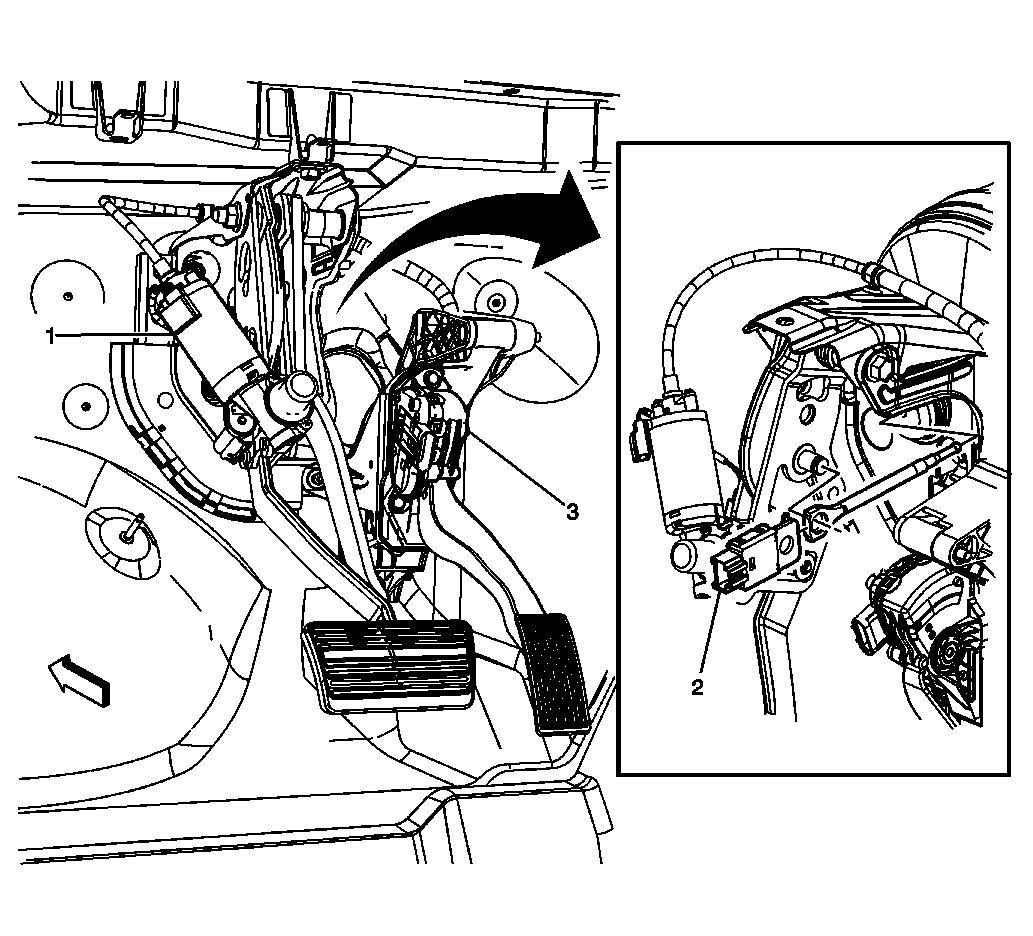

Fig 1: Pedal Assemblies

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Adjustable Pedal Assembly (JF4)
2	Accelerator Pedal Position (APP) Sensor

Fig 2: Top of the Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injector 6
2	Ignition Coil 8
3	Fuel Injector 8
4	Fuel Injector 7
5	Ignition Coil 7
6	Fuel Injector 5
7	Ignition Coil 5
8	Ignition Coil 3
9	Fuel Injector 3
10	Ignition Coil 1
11	Fuel Injector 1
12	Manifold Absolute Pressure (MAP) Sensor
13	Fuel Injector 2
14	Ignition Coil 1
15	Ignition Coil 2
16	Fuel Injector 2
17	Ignition Coil 6

Fig 3: Right Side of the Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil 8
2	Ignition Coil 6
3	Ignition Coil 4
4	Manifold Absolute Pressure (MAP) Sensor
5	Throttle Body
6	Ignition Coil 2
7	Knock Sensor (KS) - 2
8	Oil Level Switch
9	Starter
10	Valve Lifter Oil Manifold (VLOM) Assembly (DOD)
11	Engine Oil Pressure (EOP) Sensor

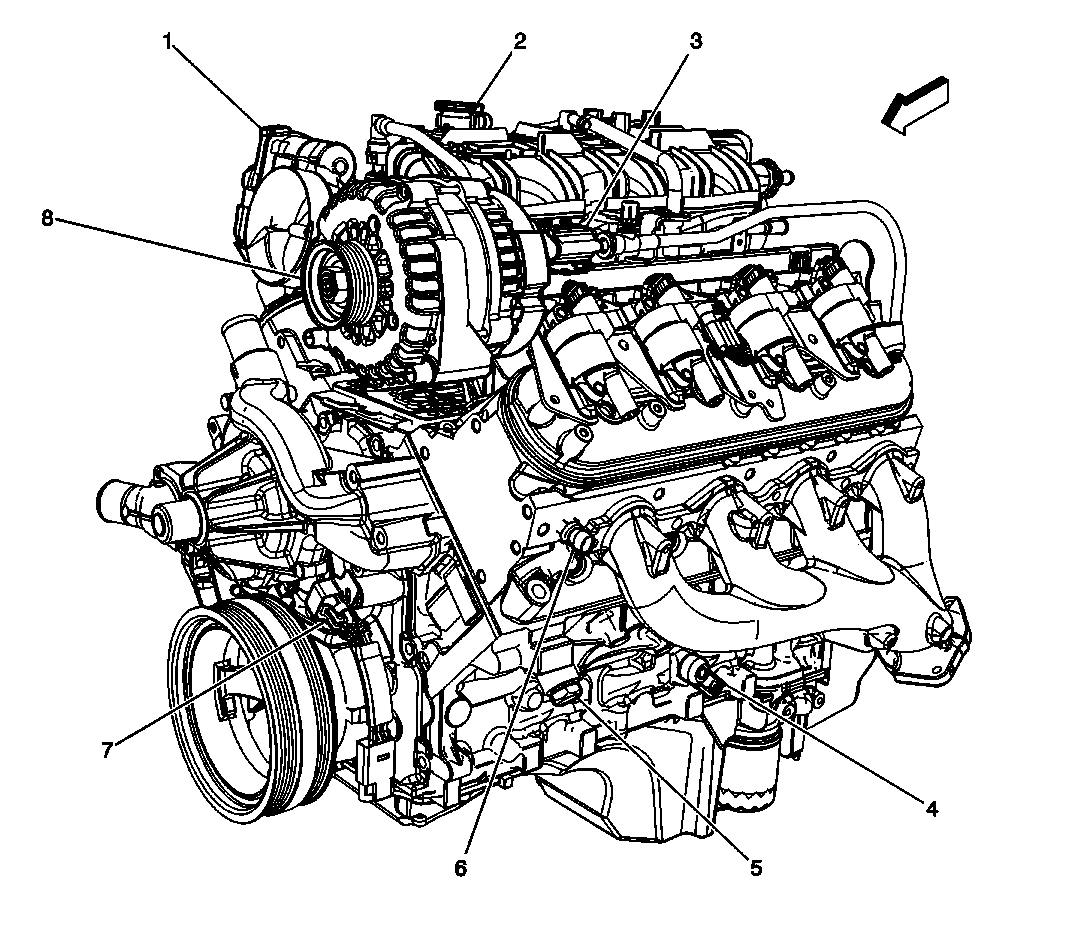

Fig 4: Front of the Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Body
2	Manifold Absolute Pressure (MAP) Sensor
3	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4	Knock Sensor (KS) - 1
5	Engine Block Heater
6	Engine Coolant Temperature (ECT) Sensor
7	Camshaft Position (CMP) Sensor
8	Generator

Fig 5: RR of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	A/C Low Pressure Sensor
3	A/C Compressor Clutch
4	A/C Refrigerant Pressure Switch
5	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Fig 6: Left Side of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Power Brake Booster
3	Windshield Washer Solvent Heater
4	Fuse Block - Underhood
5	Engine Control Module (ECM)
6	Transmission Control Module (TCM)
7	Brake Booster Vacuum Sensor
8	Brake Fluid Level Switch

Fig 7: Chassis Fuel Components (Short Wheel Base)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis
2	Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
3	Fuel Tank Pressure (FTP) Sensor
4	Fuel Pump and Sender Assembly
