Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold the second row seats full forward.
  2. Lower the midgate window to the full open position.
  3. Remove the rear folding floor trim panels. Refer to Seat Back Cover Replacement - Rear Folding .

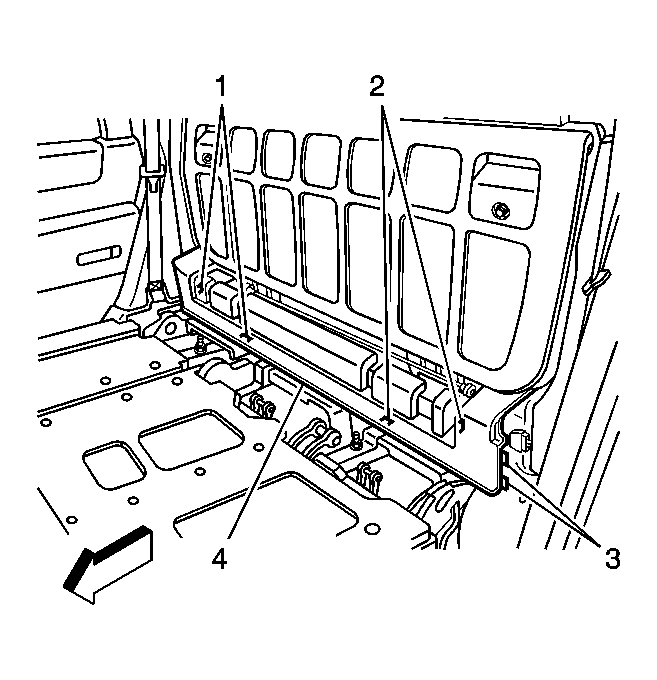

    4. Fig 1: View Of Midgate Components
    GM1427695Courtesy of GENERAL MOTORS CORP.
  4. Remove the lower center garnish molding (4). Refer to Endgate Center Molding Replacement .
  5. Remove the midgate inner panel. Refer to Midgate Inner Panel Replacement .
    6. Fig 2: Midgate Window
    GM1412518Courtesy of GENERAL MOTORS CORP.
  6. Remove the midgate window. Refer to Midgate Window Replacement .
    7. Fig 3: Midgate Window Run Channels
    GM1412517Courtesy of GENERAL MOTORS CORP.
  7. Remove the midgate window channels. Refer to Midgate Window Channel Replacement .
  8. Remove the midgate window regulator. Refer to Midgate Window Regulator Replacement .
  9. Remove the midgate latches. Refer to Midgate Latch Replacement .

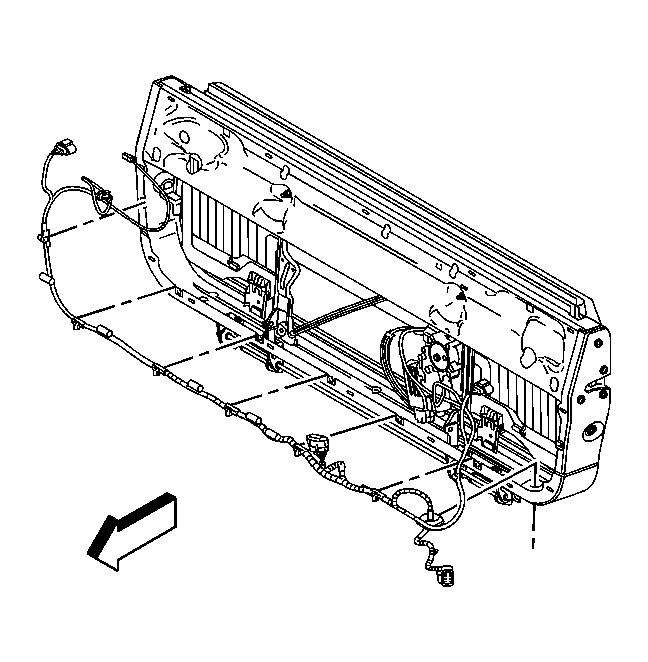

    10. Fig 4: Midgate Wiring Harness
    GM1412515Courtesy of GENERAL MOTORS CORP.
  10. Remove the midgate electrical harness. Refer to Folding Rear Panel Harness Replacement .

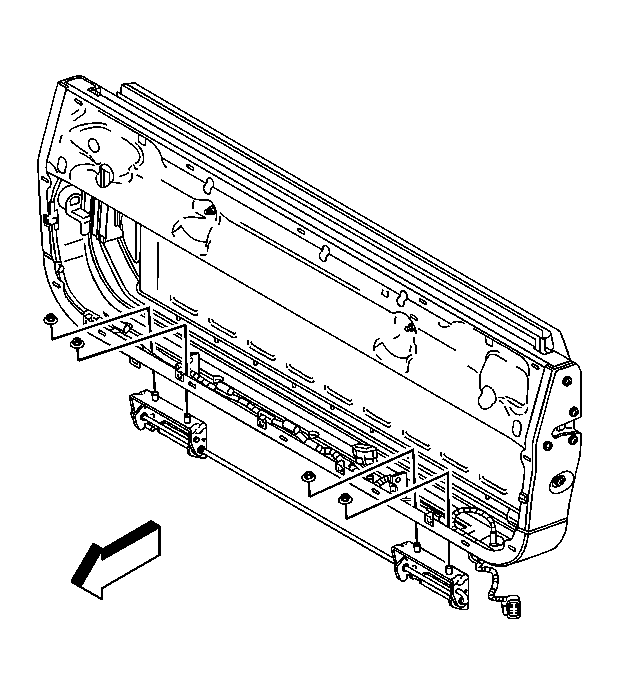

    11. Fig 5: Midgate Hinges
    GM1412514Courtesy of GENERAL MOTORS CORP.
  11. Remove the midgate hinges. Refer to Midgate Hinge Replacement .
  12. With the aid of an assistant, remove the midgate structure from the vehicle.
