Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the midgate inner panel. Refer to Midgate Inner Panel Replacement .
  2. Remove the midgate window sealing strip. Refer to Midgate Window Outer Sealing Strip Replacement .
  3. Remove the midgate window. Refer to Midgate Window Replacement .
  4. Remove the midgate window regulator. Refer to Midgate Window Regulator Replacement .
  5. Remove the midgate window run channels. Refer to Midgate Window Channel Replacement .
  6. Remove the midgate sliding hinge filler panel rivets.
  7. Remove the midgate hinged filler panel from the structure.

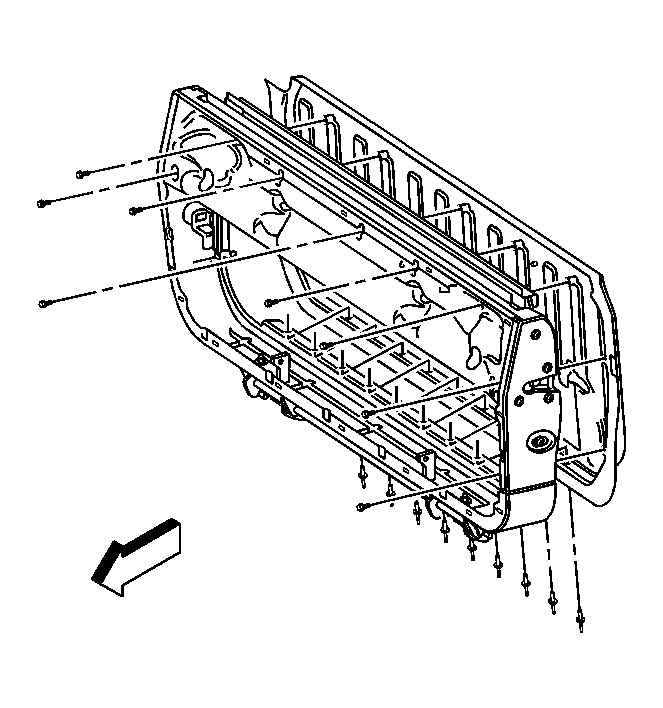

    8. Fig 1: Midgate Outer Panel To The Midgate Structure
    GM1412511Courtesy of GENERAL MOTORS CORP.
  8. Remove the bolts retaining the midgate outer panel to the midgate structure.
  9. Remove the midgate outer panel from the midgate.
