Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

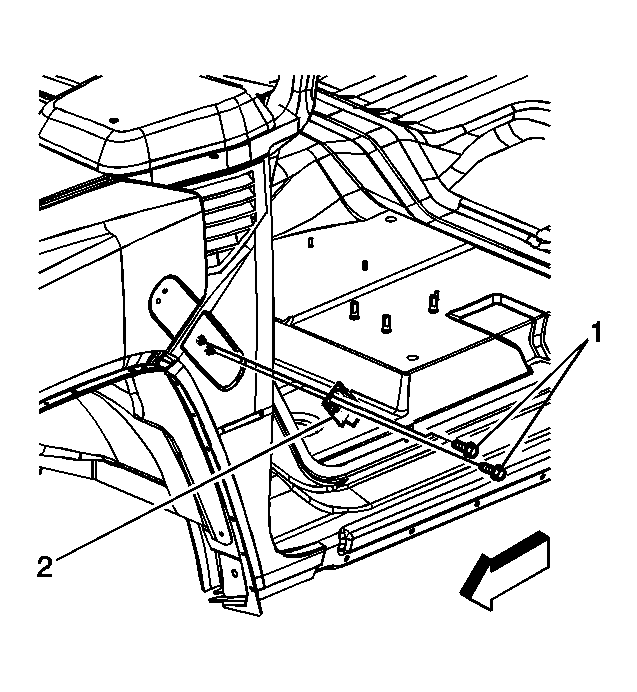

    Fig 1: Hood Latch Receiver
    GM859398Courtesy of GENERAL MOTORS CORP.
  1. Align the hood latch receiver (2) to the fender extension.
    2. NOTE: Refer to Fastener Notice .
  2. Install the fasteners (1) that retain the hood latch receiver (2) to the fender extension.

    Tighten:  Tighten the fasteners to 9 N.m (7 lb ft).
