Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Refer to Hood Hold-Open Device Caution .
  1. Open the hood.

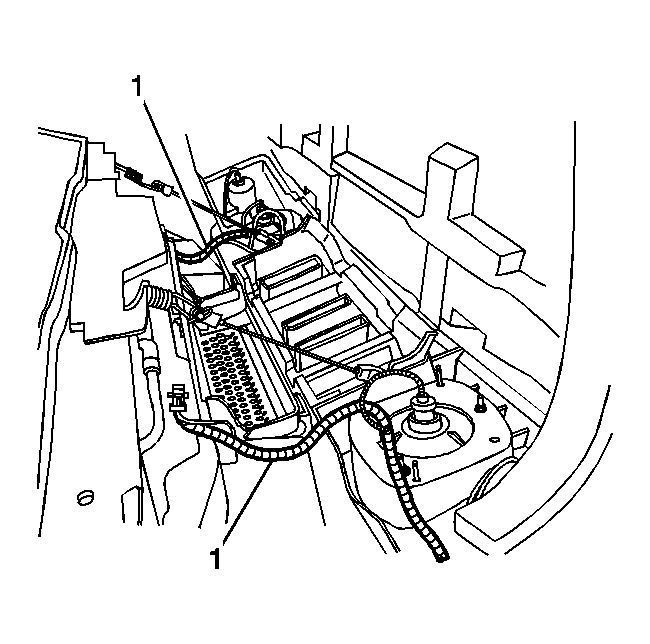

    2. Fig 1: Underhood Lighting Electrical Connectors & Wiring Harness
    GM822822Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the underhood lighting electrical connectors and remove the wiring harness (1) from the hood.
    3. Fig 2: Hood Support Cable Pins
    GM822819Courtesy of GENERAL MOTORS CORP.
  3. With the hood properly supported, remove the hood support cables by removing the hood support cable pins (1).
  4. Remove the hood hinges. Refer to Hood Hinge Replacement .
  5. With the aid of assistants, remove the hood from the vehicle.
