Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

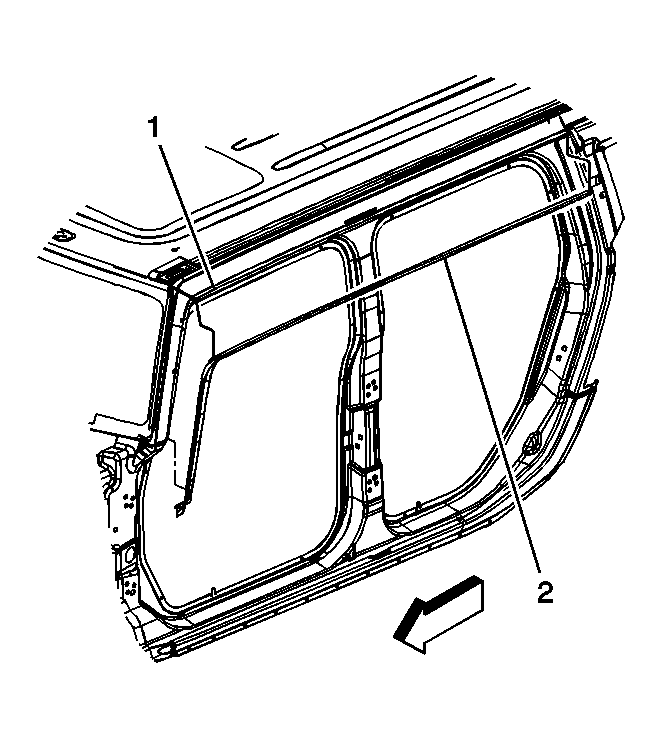

    Fig 1: Upper Door Weatherstrip (Front Door)
    GM862170Courtesy of GENERAL MOTORS CORP.
  1. Starting at the center of the door openings, install the weatherstrip (2) to the pinch-weld flange (1) and work across the right and left sides towards the ends of the weatherstrip, being careful not to stretch the weatherstrip during installation.
  2. Close the door.
