Removal Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Open the front door on the side of the vehicle where the fender extension is being serviced.
  3. Remove the fender flare. Refer to Front Wheel Opening Flare Replacement (Base) or Front Wheel Opening Flare Replacement (WS2, BVX, Lower) or Front Wheel Opening Flare Replacement (WS2, BVX, Upper) .

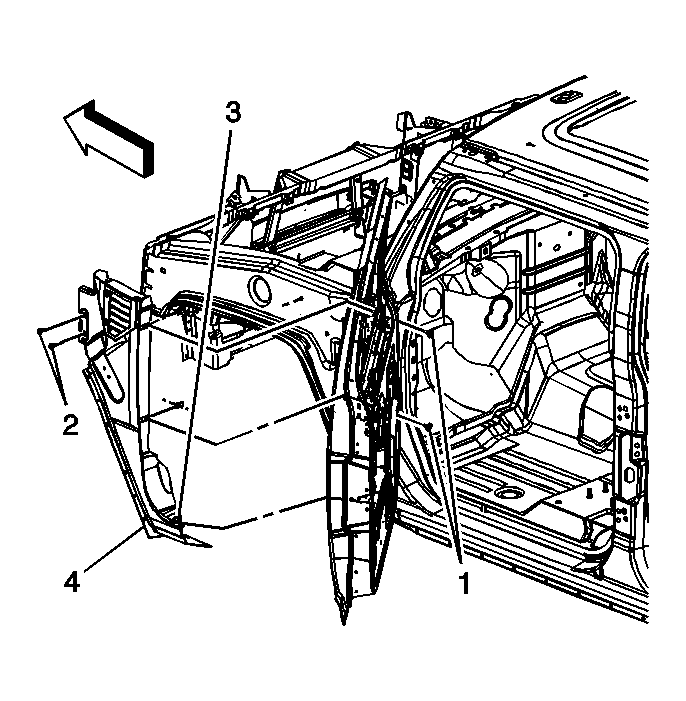

    4. Fig 1: Front Fender Extension
    GM861166Courtesy of GENERAL MOTORS CORP.
  4. Through the door jamb, remove the fasteners (1) retaining the rear of the fender extension to the vehicle.
  5. Remove the fasteners (2) retaining the side of the fender extension to the vehicle.
  6. Through the wheelhouse, remove the fastener retaining the bottom of the fender extension to the vehicle.
  7. Remove the fender extension (4) from the vehicle.
