Installation Procedure

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the check link in position in the door.

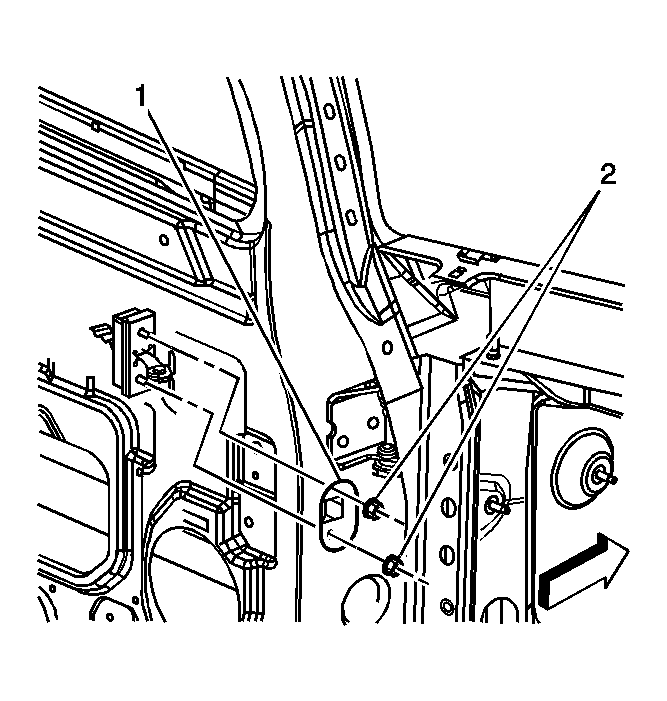

    2. Fig 1: Rubber Grommet & Front Door Check Link Opening
    GM838577Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the nuts (2) that retain the check link to the door.

    Tighten:  Tighten the nuts to 9 N.m (7 lb ft).

  3. Replace the rubber grommet in the door check link opening (1).
    4. Fig 2: Front Door Check Link Fasteners
    GM838583Courtesy of GENERAL MOTORS CORP.
  4. Install the fasteners (1) that retain the check link to the vehicle.

    Tighten:  Tighten the fasteners to 9 N.m (7 lb ft).

  5. Install the water deflector. Refer to Front Side Door Water Deflector Replacement or Rear Side Door Water Deflector Replacement .
  6. Install door trim panel. Refer to Front Side Door Trim Panel Replacement or Rear Side Door Trim Panel Replacement .
