Installation Procedure

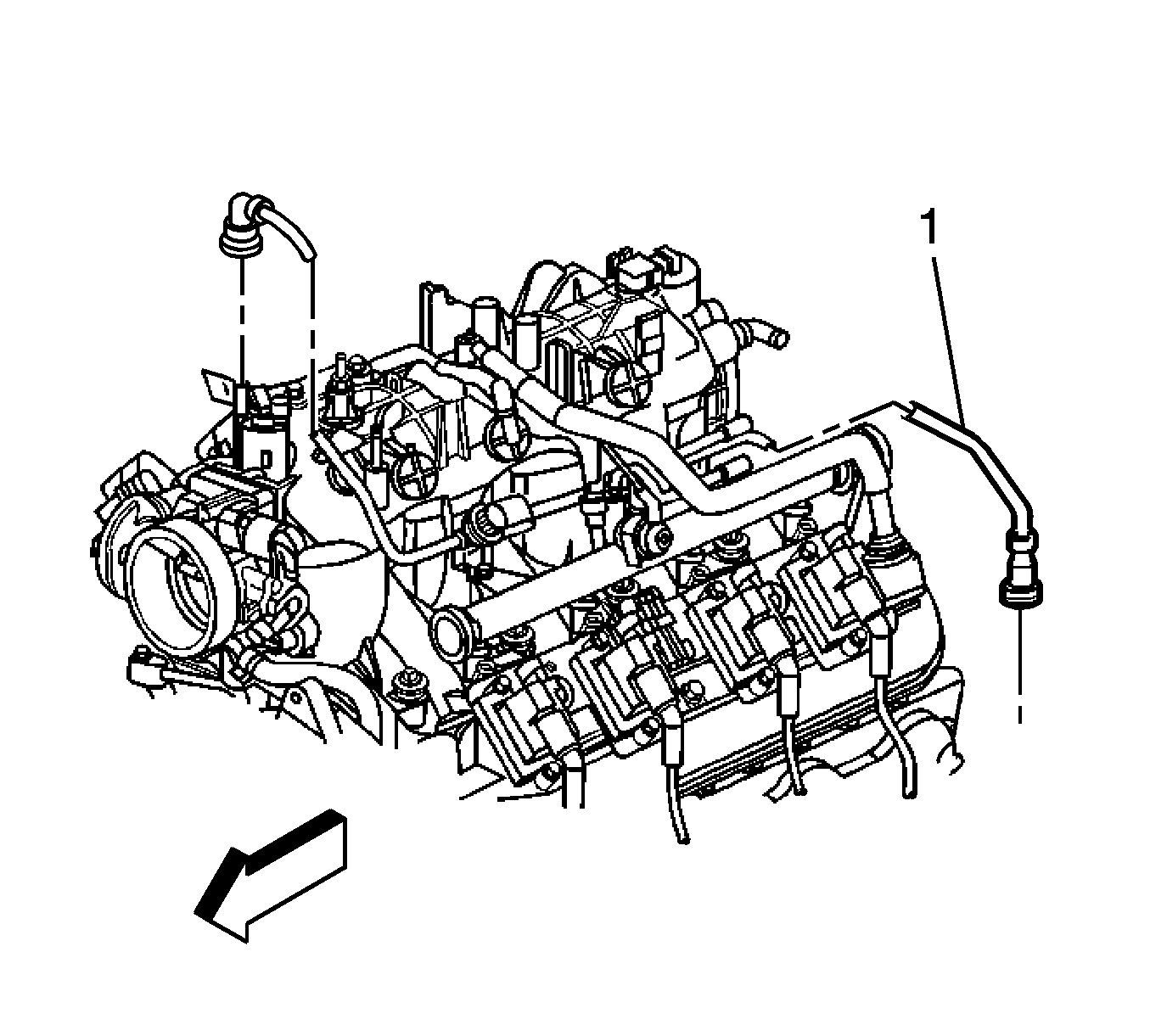

    Fig 1: View Of EVAP Purge Solenoid Vent Tube
    GM372717Courtesy of GENERAL MOTORS CORP.
  1. Remove the caps from the EVAP canister purge solenoid and the chassis EVAP pipe.
  2. Install the EVAP pipe on the engine.
  3. Connect the engine compartment EVAP pipe (3) to the chassis EVAP pipe.
  4. Connect the engine compartment EVAP pipe (2) to the EVAP canister purge solenoid (1).
