Evaporative Emission Canister Replacement

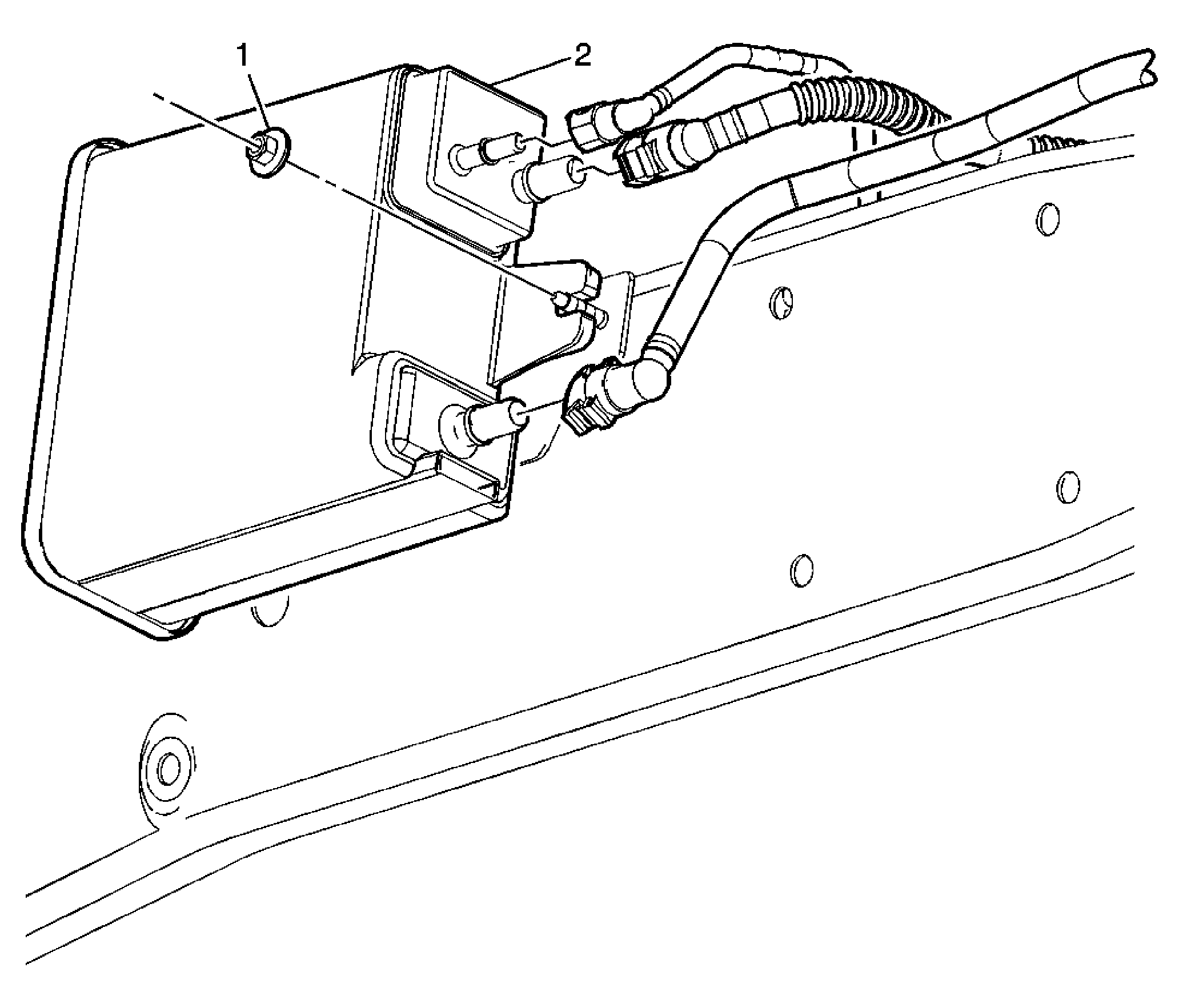

Fig 1: Evaporative Emission Canister Replacement
GM2000491Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief (With CH 48027)  or Fuel Pressure Relief (Without CH 48027) .
  2. Disconnect the plastic collar quick connect fittings from the carbon canister. Refer to Plastic Collar Quick Connect Fitting Service .
1 Evaporative Emission Canister Nut
NOTE: Refer to Fastener Notice .

Tighten:  19 N.m (14 lb ft)
2 Evaporative Emission Canister
