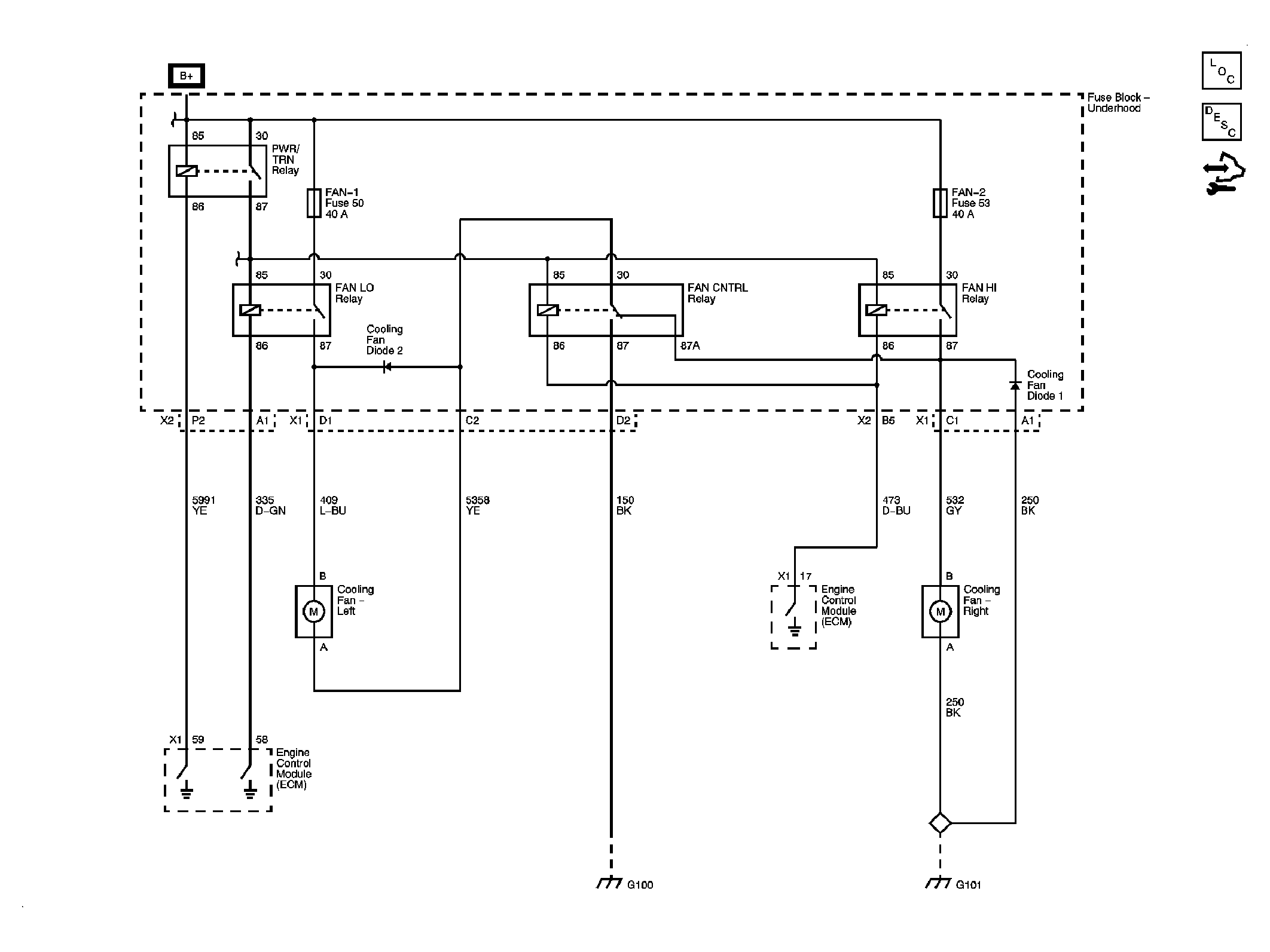

Home >> Hummer >> 2008 >> H2 4D Utility Wagon >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling >> Schematic and Routing Diagrams >> Engine Cooling Schematics
