Installation Procedure

    Fig 1: Surge Tank Components
    GM801110Courtesy of GENERAL MOTORS CORP.
  1. Install the surge tank outlet hose (3) to the vehicle.
  2. Install the surge tank outlet hose (3) to the surge tank (2).
  3. Reposition the surge tank outlet hose clamp (5) to the surge tank (2).

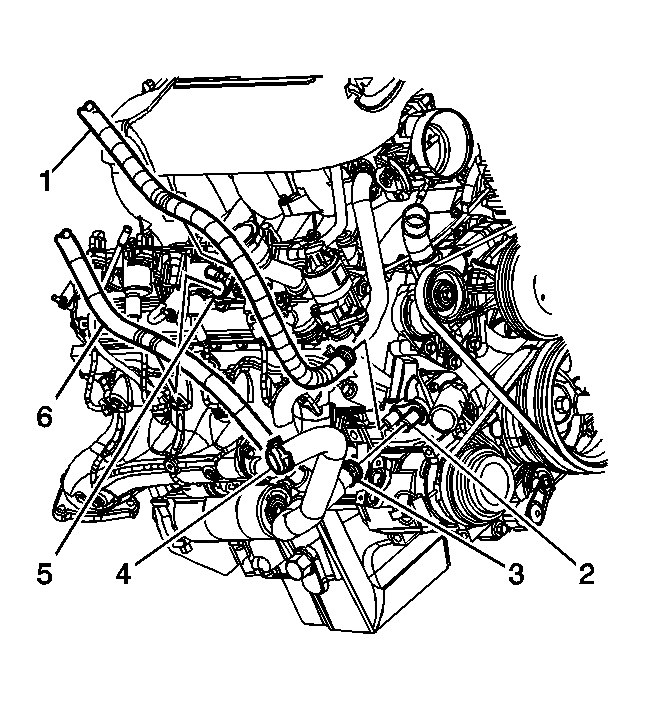

    4. Fig 2: Surge Tank Hose & Engine (Outlet)
    GM814578Courtesy of GENERAL MOTORS CORP.
  4. Install the surge tank outlet hose (6) to the engine (2).
  5. Reposition the surge tank outlet hose clamp (3) to the engine (2).
  6. Connect the heater inlet hose to the heater core.
    IMPORTANT: Firmly push the quick connect onto the heater core pipe until you hear an audible click.
  7. Pull the heater inlet hose to ensure the connection.

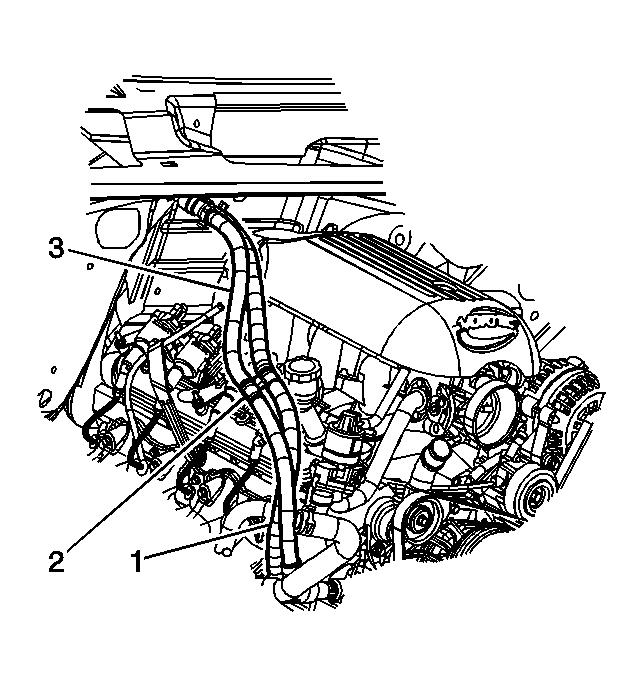

    8. Fig 3: Heater Hose & Mounting Clip
    GM814572Courtesy of GENERAL MOTORS CORP.
  8. Install the heater hose (3) to the mounting clip (2).
    9. Fig 4: Identifying Heater Hose To Heater Core Fittings
    GM362171Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Firmly push the quick connect onto the heater core pipe until you hear an audible click.
  9. Connect the surge tank outlet hose to the heater core outlet pipe.
  10. Pull the surge tank outlet hose to ensure the connection.
  11. Install the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
  12. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill)  or Cooling System Draining and Filling (Vac-N-Fill) .
