Removal Procedure

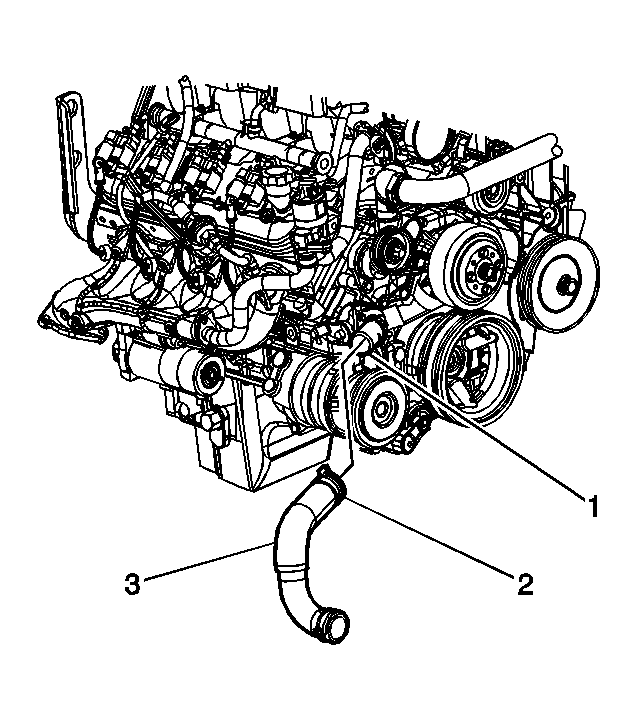

    Fig 1: Radiator Hose & Engine (Outlet)
    GM814575Courtesy of GENERAL MOTORS CORP.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill)  or Cooling System Draining and Filling (Vac-N-Fill) .
  2. Remove the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
  3. Reposition the radiator outlet hose clamp (2) from the engine (1).
  4. Remove the radiator outlet hose (3) from the engine (1).
    5. Fig 2: Radiator Hose & Radiator (Outlet)
    GM801112Courtesy of GENERAL MOTORS CORP.
  5. Reposition the radiator outlet hose clamp (2) from the radiator (1).
  6. Remove the radiator outlet hose (3) from the radiator (1).
  7. Remove the outlet hose from the vehicle.
