Removal Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill)  or Cooling System Draining and Filling (Vac-N-Fill) .
  2. Remove the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .

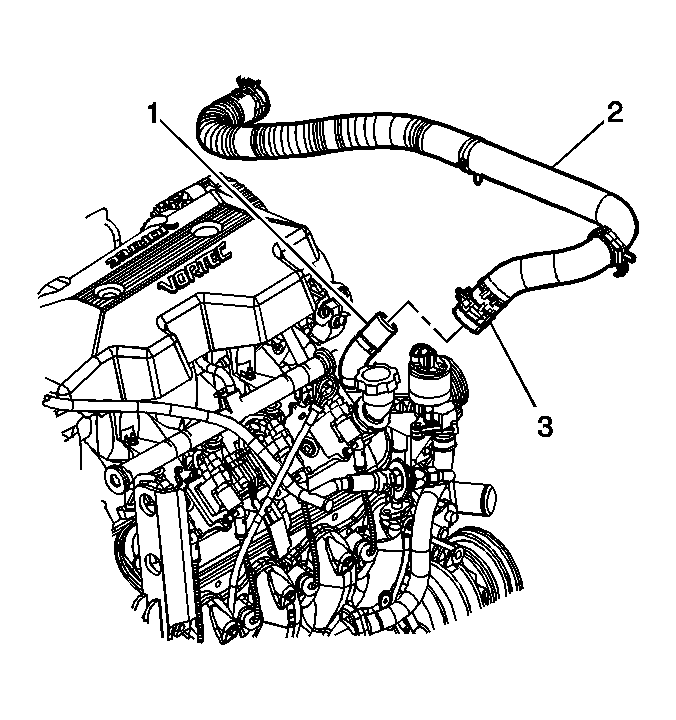

    3. Fig 1: Radiator Hose & Engine (Inlet)
    GM814579Courtesy of GENERAL MOTORS CORP.
  3. Reposition the radiator inlet hose clamp (3) from the engine (1).
  4. Remove the radiator inlet hose (2) from the engine (1).
  5. Remove the radiator inlet hose (4) from the mounting clip (3).
    6. Fig 2: Radiator Hose & Radiator (Inlet)
    GM801113Courtesy of GENERAL MOTORS CORP.
  6. Reposition the radiator inlet hose clamp (5) from the radiator (6).
  7. Remove the radiator inlet hose (4) from the radiator (6).
  8. Remove the inlet hose from the vehicle.
