Luggage Compartment/Rear of Vehicle Component Views

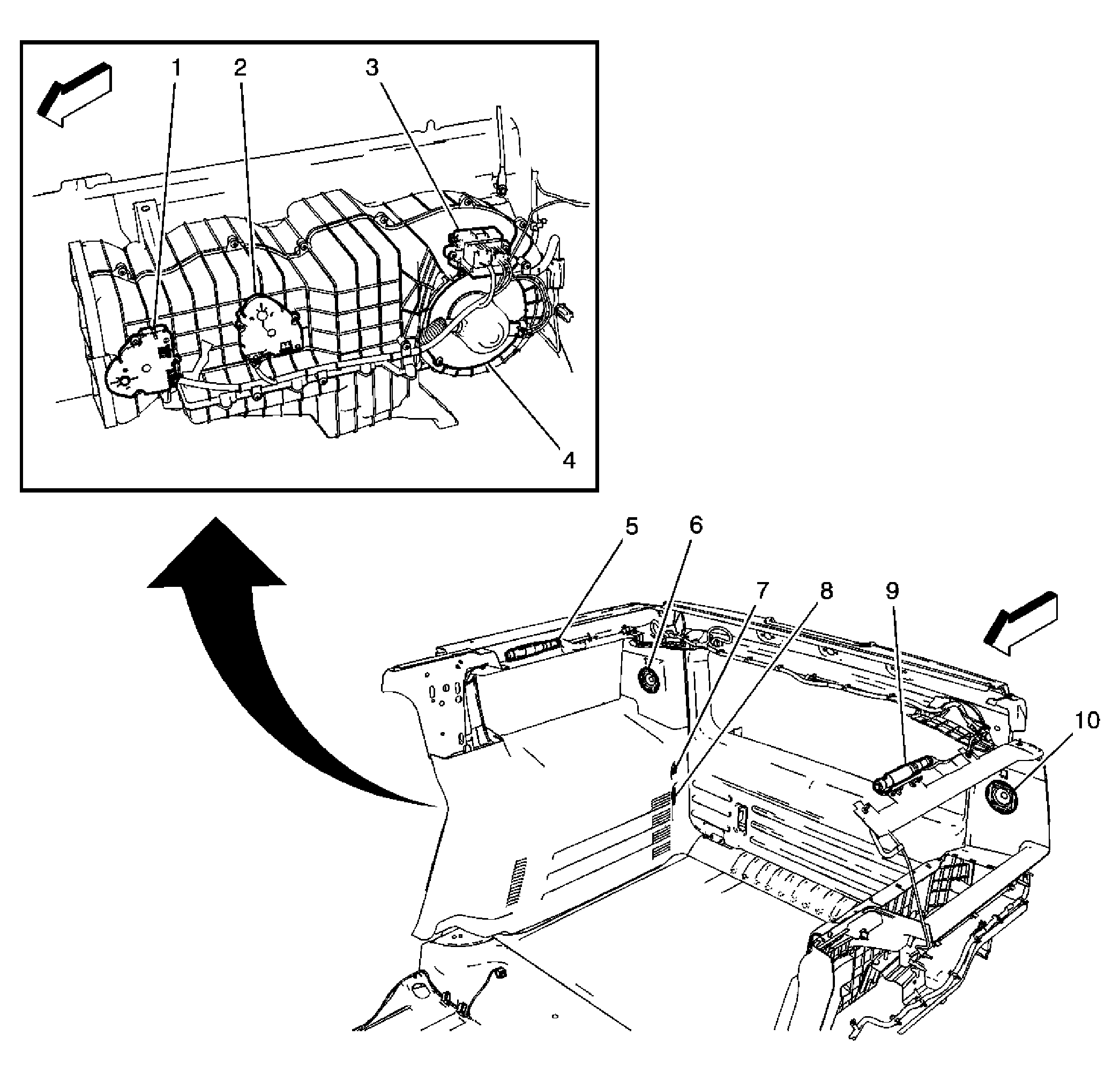

| Callout | Component Name |
|---|---|
| 1 | Mode Actuator-Auxiliary |
| 2 | Air Temperature Actuator-Auxiliary |
| 3 | HVAC Blower Control Processor-Auxiliary |
| 4 | Blower Motor-Auxiliary |
| 5 | Inflatable Restraint Roof Rail Module - Right Rear (AS3) |
| 6 | Speaker - Right Twiddler |
| 7 | Auxiliary Power Outlet - Cargo |
| 8 | Air Suspension Inflator Switch (ZM6) |
| 9 | Inflatable Restraint Roof Rail Module - Left Rear (AS3) |
| 10 | Speaker - Left Twiddler |

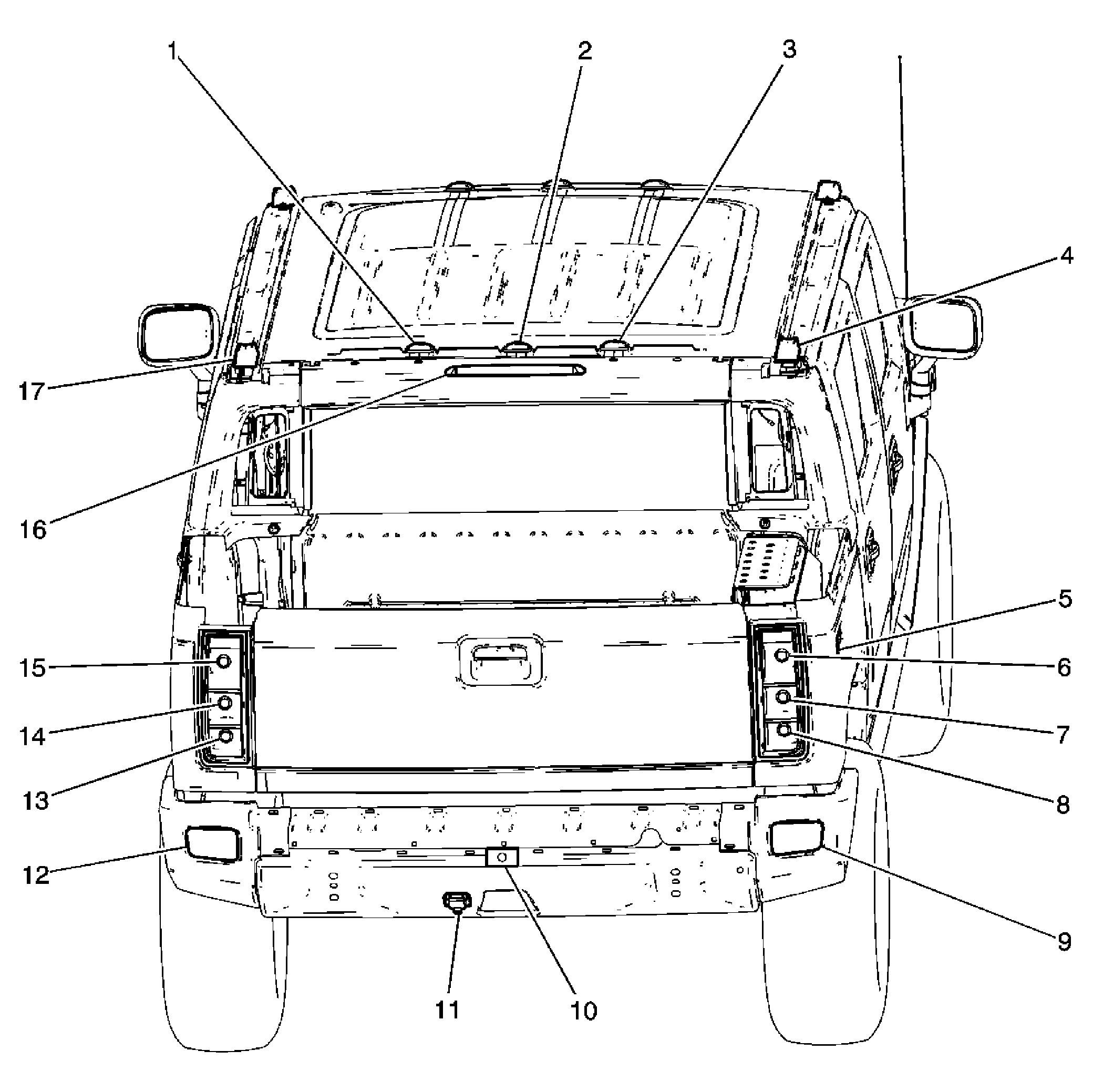

| Callout | Component Name |
|---|---|
| 1 | Roof Marker Lamp - Rear Left |
| 2 | Roof Marker Lamp - Rear Middle |
| 3 | Roof Marker Lamp - Rear Right |
| 4 | Clearance Lamp - RR |
| 5 | Marker Lamp - RR |
| 6 | Tail/Stop Lamp - Right |
| 7 | Turn Signal Lamp - RR |
| 8 | Backup Lamp - Right |
| 9 | Tail/Stop and Turn Signal Lamp - Right |
| 10 | Trailer Connector |
| 11 | Tail/Stop and Turn Signal Lamp - Left |
| 12 | Backup Lamp - Left |
| 13 | Turn Signal Lamp - Left Rear |
| 14 | Tail/Stop Lamp - Left |
| 15 | Center High Mounted Stop Lamp (CHMSL) |
| 16 | Clearance Lamp - Left Rear |

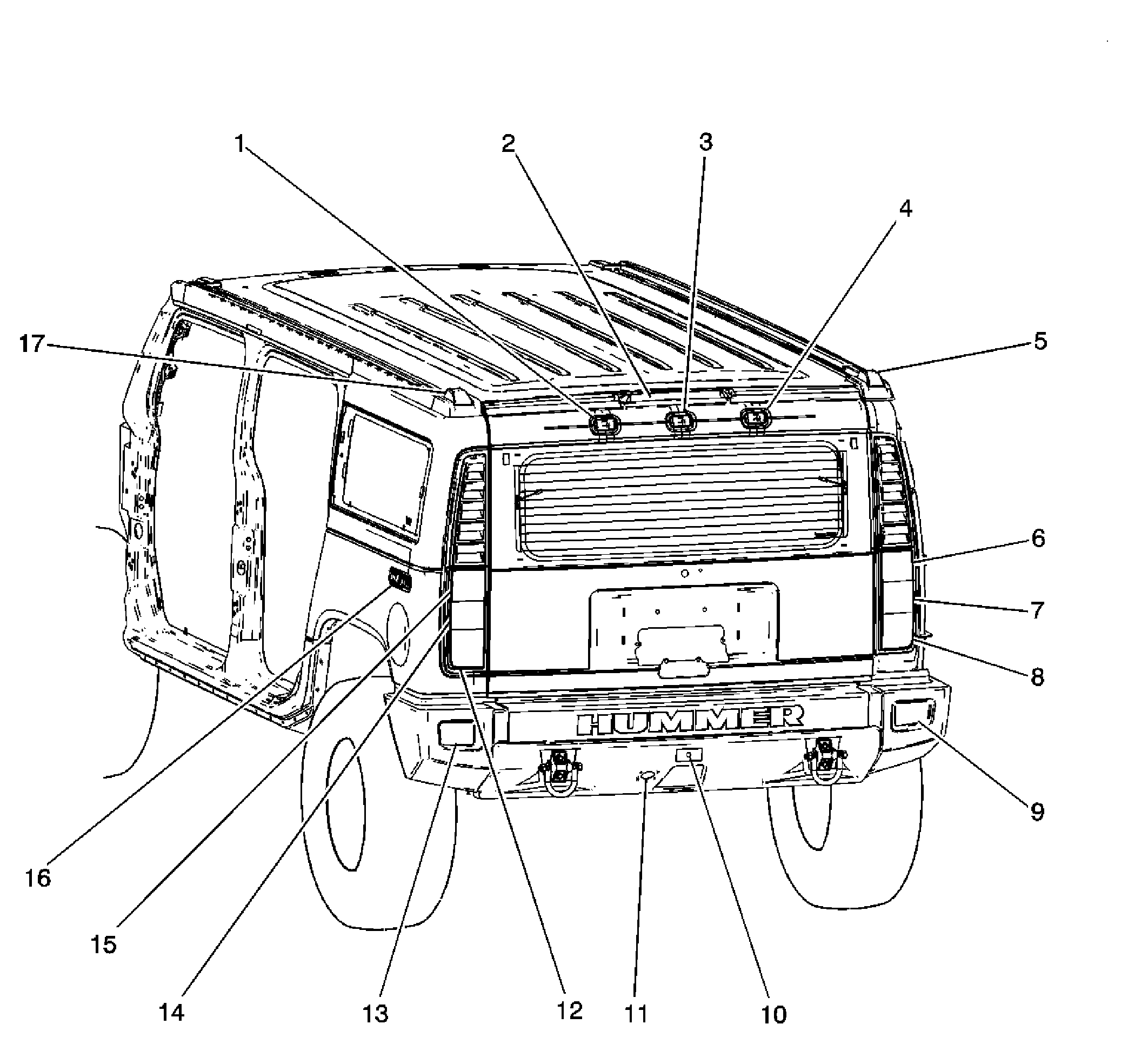

| Callout | Component Name |
|---|---|
| 1 | Roof Marker Lamp - Rear Left |
| 2 | Center High Mounted Stop Lamp (CHMSL) |
| 3 | Roof Marker Lamp - Rear Middle |
| 4 | Roof Marker Lamp - Rear Right |
| 5 | Clearance Lamp - RR |
| 6 | Tail/Stop Lamp - Right |
| 7 | Turn Signal Lamp - RR |
| 8 | Backup Lamp - Right |
| 9 | Tail/Stop and Turn Signal Lamp - Right |
| 10 | Rear View Camera (UVC) |
| 11 | Trailer Connector |
| 12 | Backup Lamp - Left |
| 13 | Tail/Stop and Turn Signal Lamp - Left |
| 14 | Turn Signal Lamp - LR |
| 15 | Tail/Stop Lamp - Left |
| 16 | Marker Lamp - LR |
| 17 | Clearance Lamp - LR |
| Callout | Component Name |
|---|---|
| 1 | License Lamp |
