Junction Block - Right I/P X3

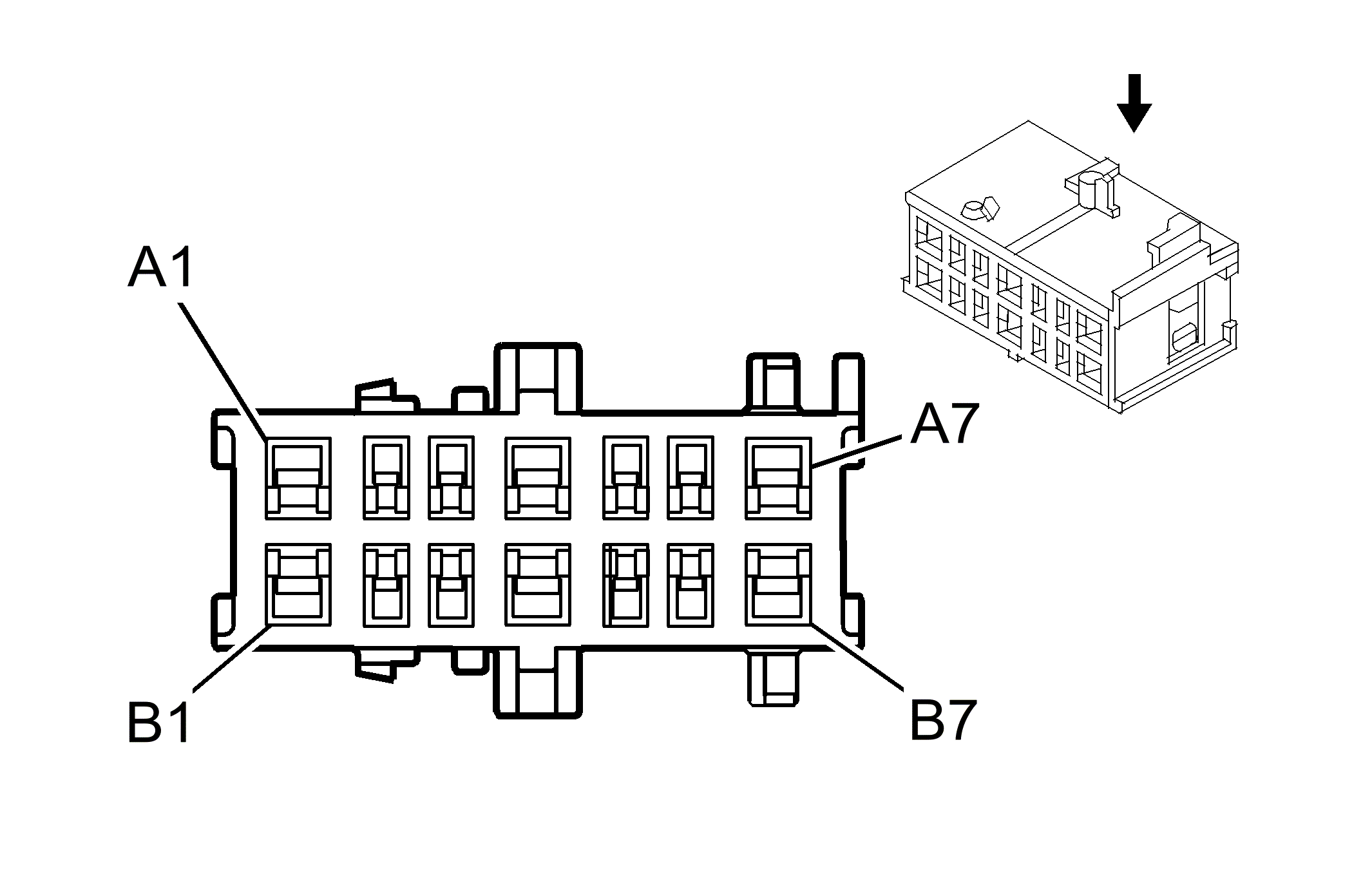

Fig 1: Junction Block - Right I/P X3 Connector End Views
GM1667402Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15467622
  • Service: 19115664
  • Description: 14-Way F GT 150/280 Series (L-GY)
Terminal Part Information
  • Pins: A1, B1
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: Pins A1 - 2/A
  • Core/Insulation Crimp: Pins B1 - E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: A2, B2
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: C/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: A7, B4
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: F/D
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pin Wire Circuit Function
A1 0.8 D-GN 117 Right Front Speaker Output (-)
A2 0.8 L-GN 200 Right Front Speaker Output (+)
A3-A6 - - Not Used
A7 3 BK 1050 Ground
B1 0.35 D-GN 5060 Low Speed GMLAN Serial Data
B2 0.8 RD/WH 240 Battery Positive Voltage
B3 - - Not Used
B4 3 RD/WH 1340 Battery Positive Voltage
B5-B7 - - Not Used
