Junction Block - Left I/P X9

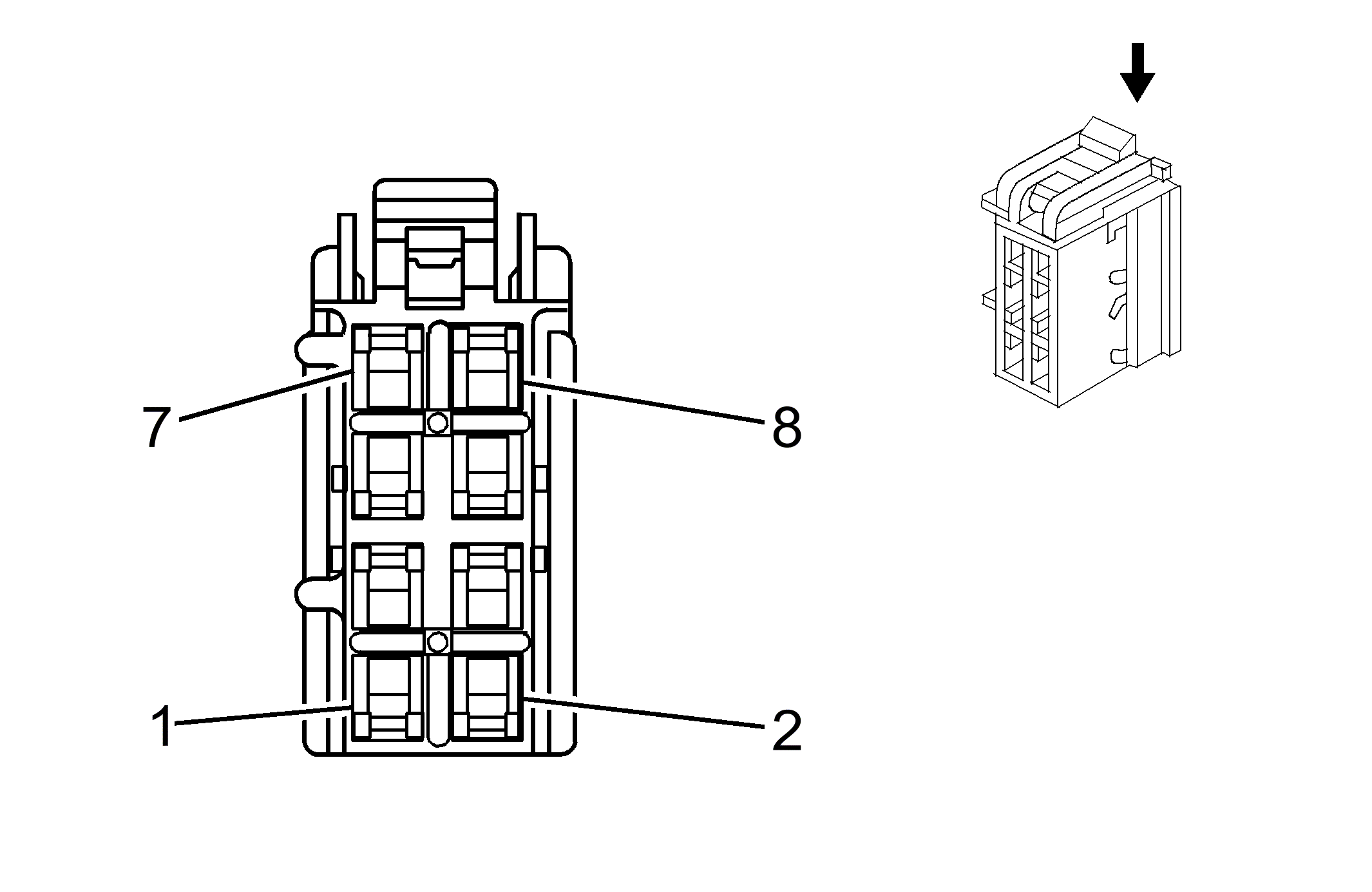

Fig 1: Junction Block - Left I/P X9
GM1665720Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13516831
  • Service: 19149289
  • Description: 8-Way F GT 280 Series (BK)
Terminal Part Information
  • Pins: 1, 2, 4, 5, 7, 8
  • Terminal/Tray: 13525970/4
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: 3, 6
  • Terminal/Tray: -
  • Core/Insulation Crimp: -
  • Release Tool/Test Probe: -
  • Pins: 8
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Pin Wire Circuit Function
1 0.35 PK 1639 Ignition 1 Voltage
2 0.35 WH/BK 5515 Inside Air Temperature Sensor Assembly Control
3 - - Not Used
4 0.35 D-GN 734 Inside Air Temperature Sensor Signal
5 0.35 PK 1139 Ignition 1 Voltage
6 - - Not Used
7 0.35 D-GN 6101 Low Reference
8 0.5 GY 157 Courtesy Lamp Control
8 0.5 GY 157 Courtesy Lamp Control
