Junction Block - Left I/P X8

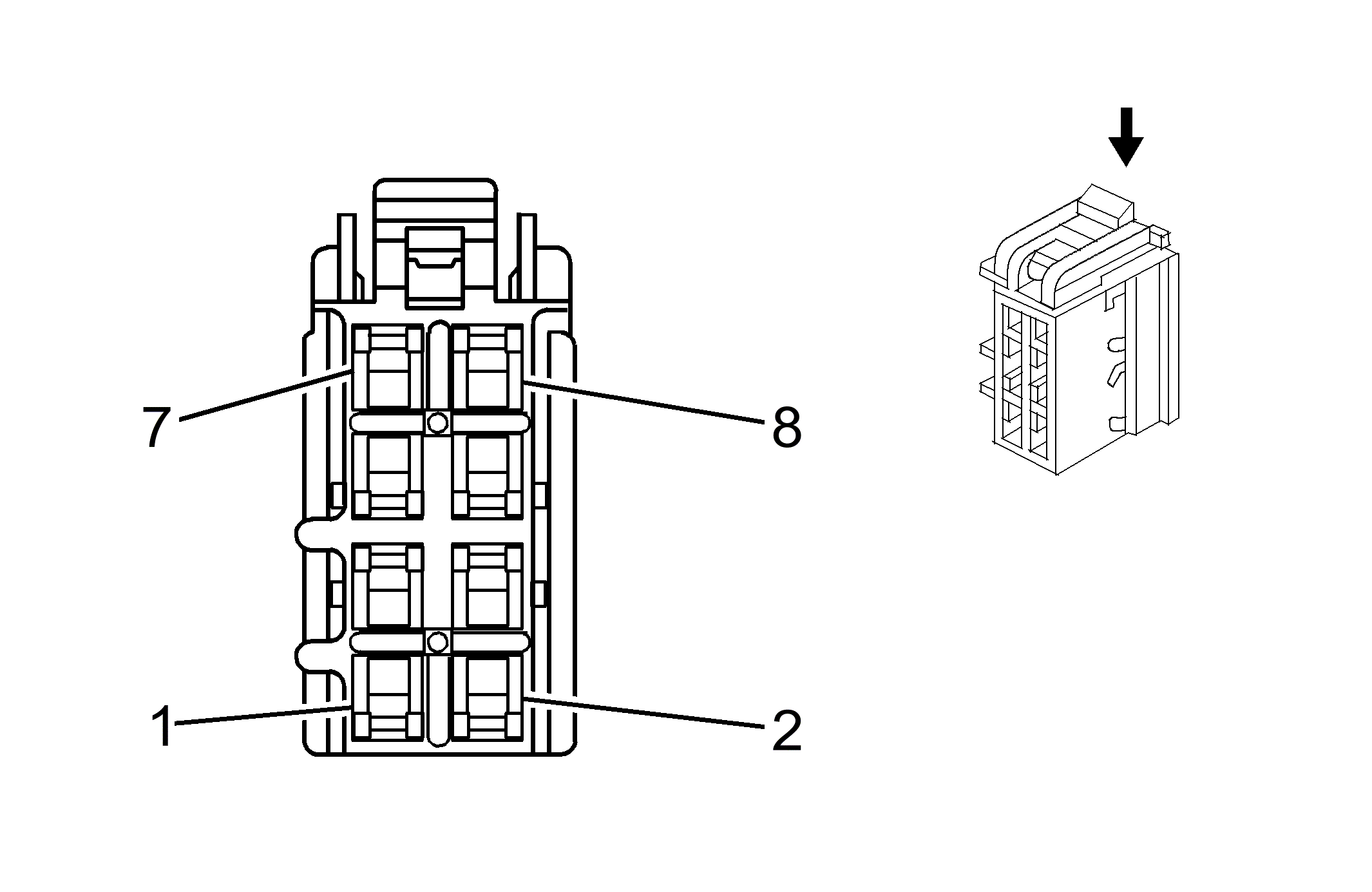

Fig 1: Junction Block - Left I/P X8
GM1665729Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13516835
  • Service: See Catalog
  • Description: 8-Way F GT 280 Series (GN)
Terminal Part Information
  • Pins: 3, 4, 6, 7
  • Terminal/Tray: 13525970/4
  • Core/Insulation Crimp: Pins 3 - 2/A
  • Core/Insulation Crimp: Pins 4, 6, 7 - E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pin Wire Circuit Function
1-2 - - Not Used
3 1 BK 1050 Ground
4 0.5 YE 643 Accessory Voltage (CF5)
5 - - Not Used
6 0.35 D-BU 2307 Passenger Air Bag On Indicator Control
7 0.35 D-GN 2308 Passenger Air Bag Off Indicator Control
8 - - Not Used
