Junction Block - Left I/P X4

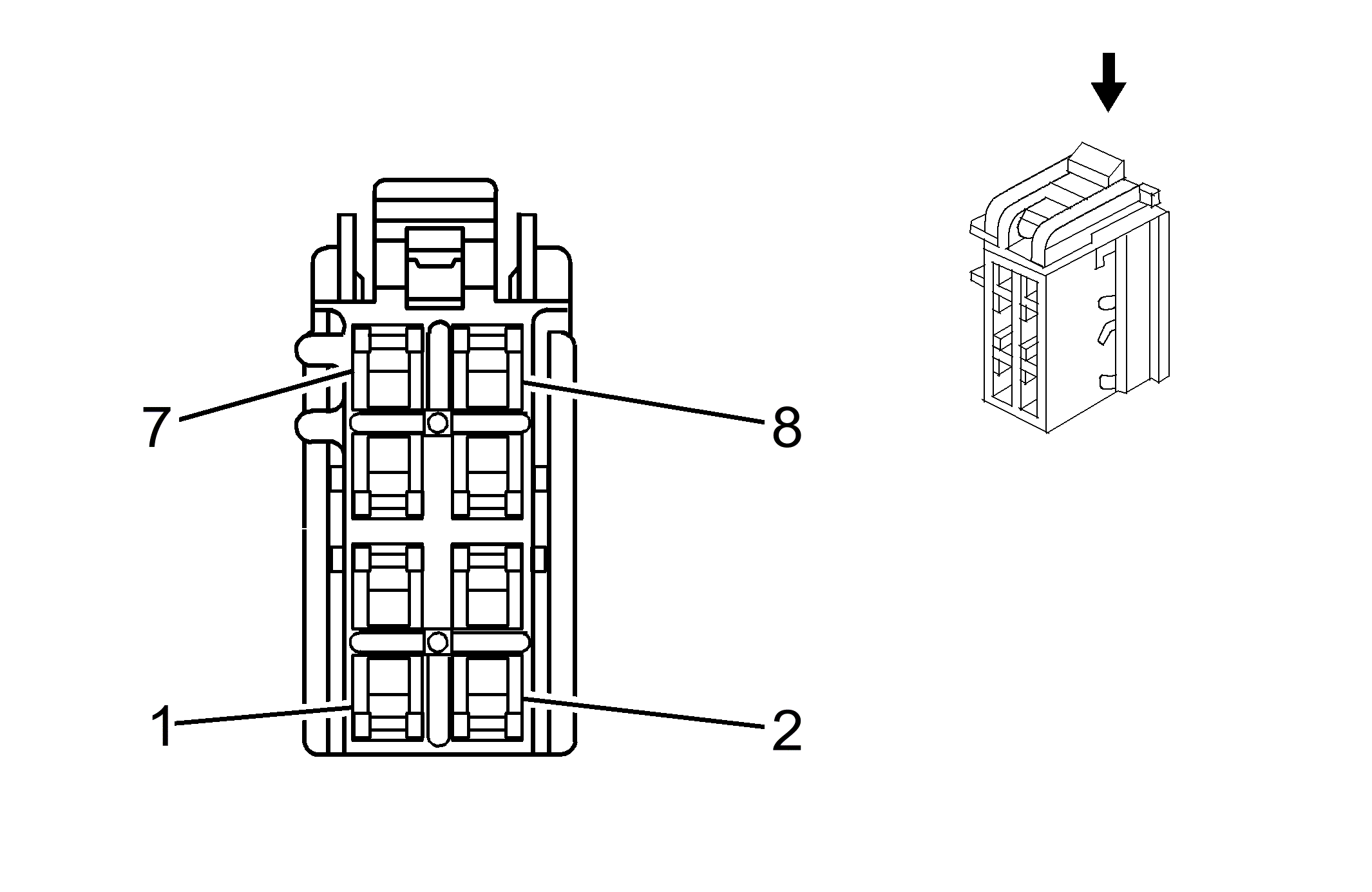

Fig 1: Junction Block - Left I/P X4
GM1665714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13516829
  • Service: 19115667
  • Description: 8-Way F GT 280 Series (OG)
Terminal Part Information
  • Pins: 1, 3, 4-7
  • Terminal/Tray: 13525970/4
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pin Wire Circuit Function
1 0.35 D-GN 5060 Low Speed GMLAN Serial Data
2 - - Not Used
3 0.5 D-GN/WH 817 Vehicle Speed Signal (UVB)
4 0.5 BK 2550 Ground
0.5 BK 2550 Ground
5 0.5 BK 2550 Ground (U2K)
0.5 BK 2550 Ground (UE1)
6 0.5 RD/WH 3240 Battery Positive Voltage (U42)
7 0.5 BK 2550 Ground (U42)
8 - - Not Used
