Junction Block - Left I/P X3

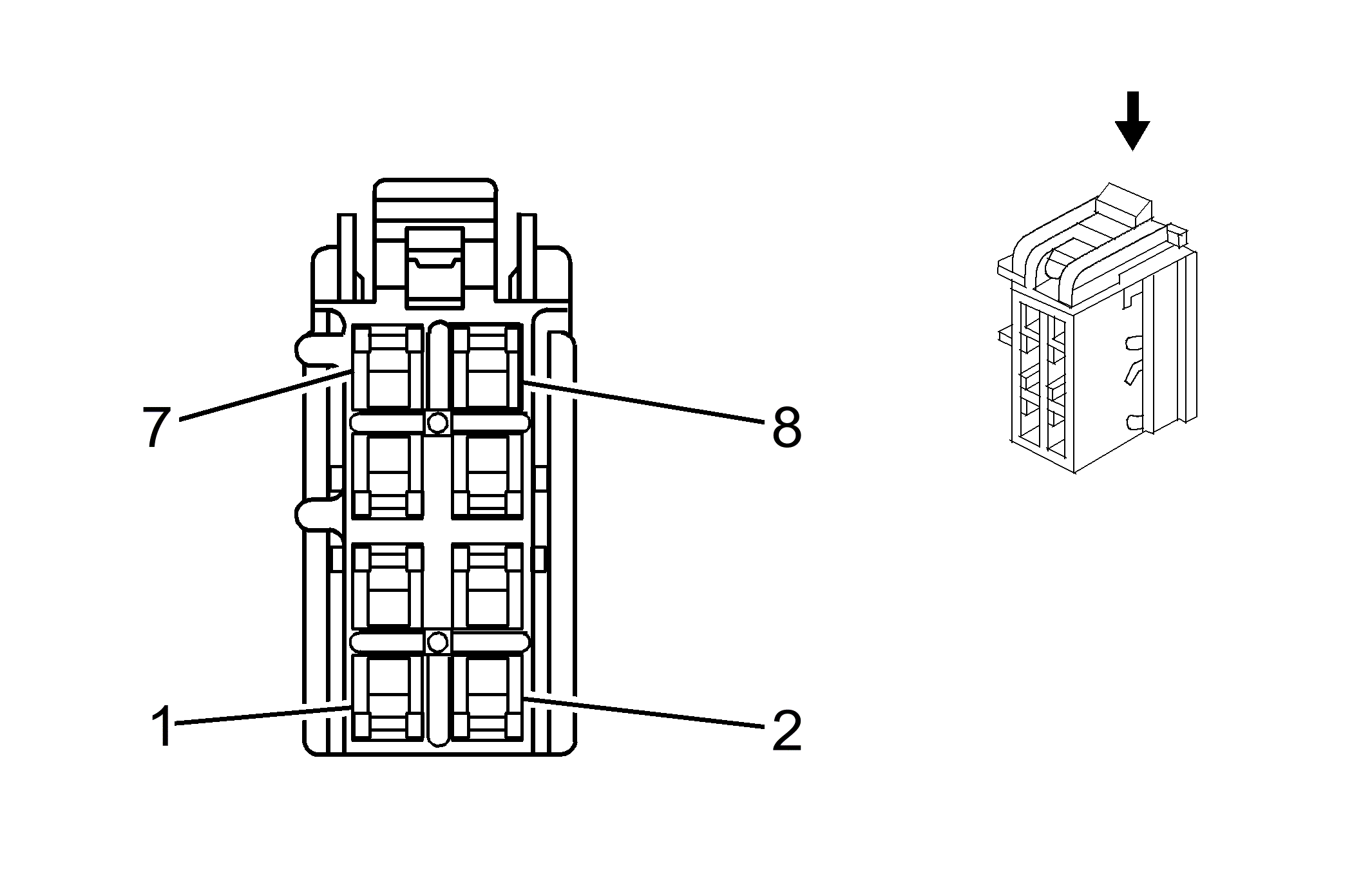

Fig 1: Junction Block - Left I/P X3
GM1665716Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13516840
  • Service: 19149295
  • Description: 8-Way F GT 280 Series (GN)
Terminal Part Information
  • Pins: 1, 3, 4, 5, 7
  • Terminal/Tray: 13525970/4
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: 2
  • Terminal/Tray: 13525969/4
  • Core/Insulation Crimp: 4/4
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pin Wire Circuit Function
1 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus+
2 2 BK 1050 Ground
3 0.5 TN 2501 High Speed GMLAN Serial Data Bus-
4 0.35 YE 6817 LED Dimming Supply
5 0.5 TN 2501 High Speed GMLAN Serial Data Bus-
6 - - Not Used
7 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus+
8 - - Not Used
