Junction Block - Left I/P X10

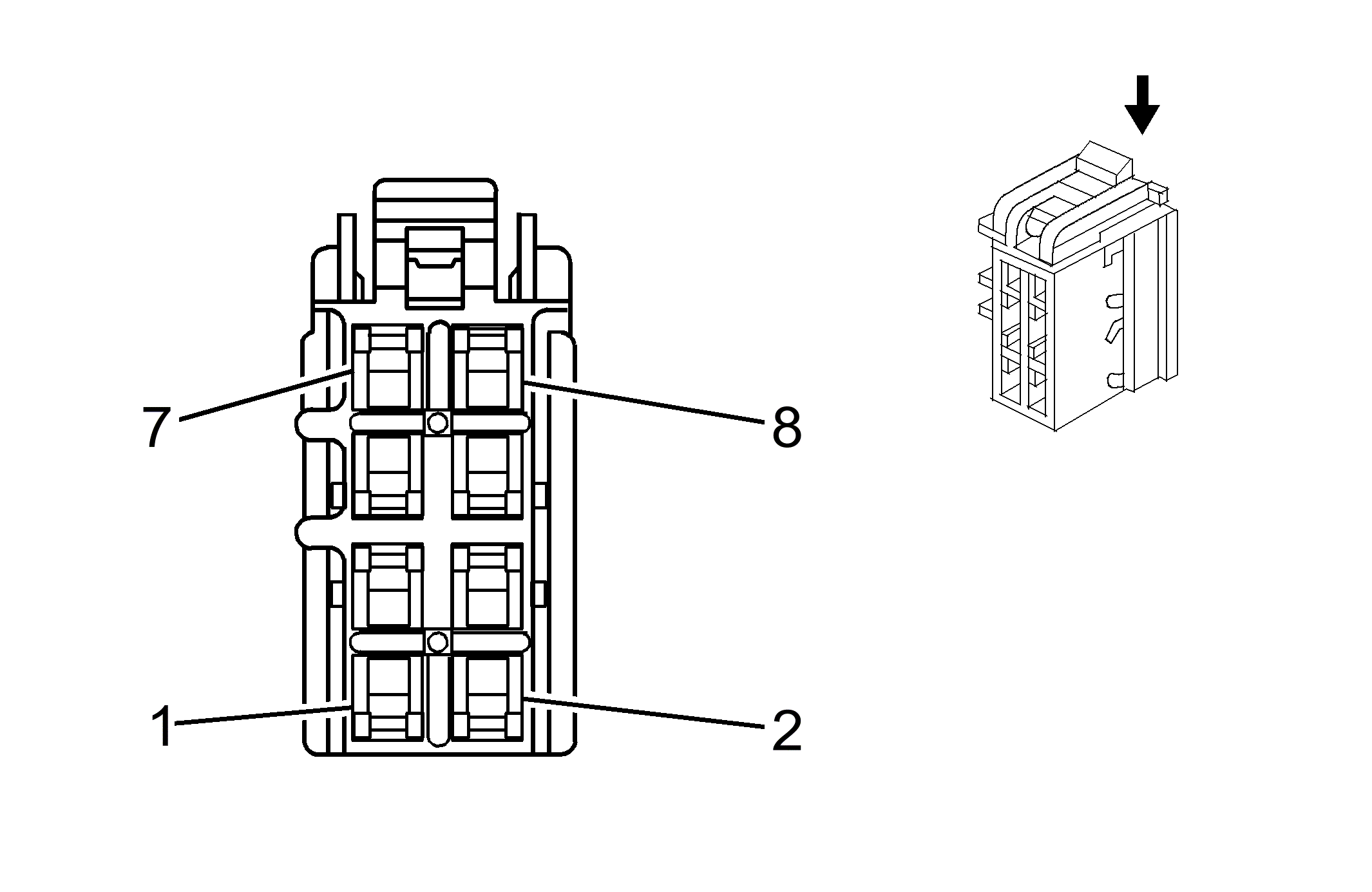

Fig 1: Junction Block - Left I/P X10

GM1665718

Courtesy of GENERAL MOTORS CORP.

Connector Part Information

OEM: 13516830
Service: 19149291
Description: 8-Way F GT 280 Series (GY)

Terminal Part Information

Terminal/Tray: 13525970/4
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	1540	Battery Positive Voltage (UG1)
2	0.35 OG	6815	Inadvertent Power Supply Voltage
3	0.35 PK	1691	Automatic Day/Night Mirror Low Reference
4	0.35 BN/WH	230	Instrument Panel Lamps Dimming Control (CF5)
5	0.35 YE	61	Low Reference
6	0.35 D-GN/WH	636	Ambient Air Temperature Sensor Signal
7	0.35 GY	1690	Automatic Day/Night Mirror Signal
8	0.35 D-BU	38	Backup Lamp Relay Control
