Junction Block - I/P X12

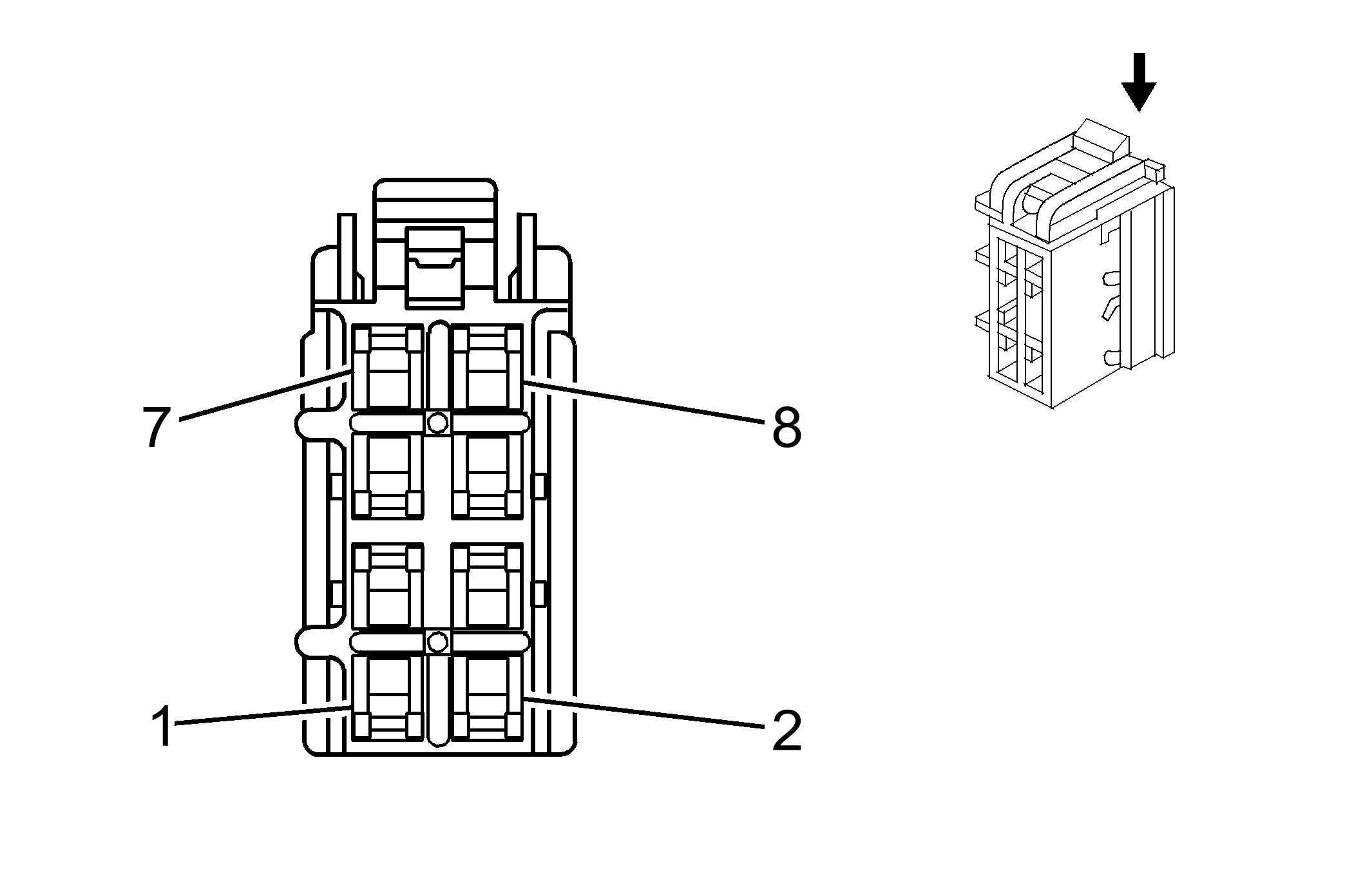

Fig 1: Junction Block - I/P X12
GM1665727Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13516834
  • Service: 19149292
  • Description: 8-Way F GT 280 Series (BN)
Terminal Part Information
  • Pins: 1, 2, 8
  • Terminal/Tray: 13525969/4
  • Core/Insulation Crimp: Pins 1 - F/D
  • Core/Insulation Crimp: Pins 2, 8 - 4/4
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: 3, 5
  • Terminal/Tray: 13525970/4
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pin Wire Circuit Function
1 3 RD/WH 5040 Battery Positive Voltage
2 2 RD/WH 3540 Battery Positive Voltage (SUT)
3 0.5 L-BU 1320 CHMSL Supply Voltage
4 - - Not Used
5 0.5 GY 157 Courtesy Lamp Control
0.5 GY 157 Courtesy Lamp Control (SUV)
6-7 - - Not Used
8 2 BK 2550 Ground
