Junction Block - I/P X11

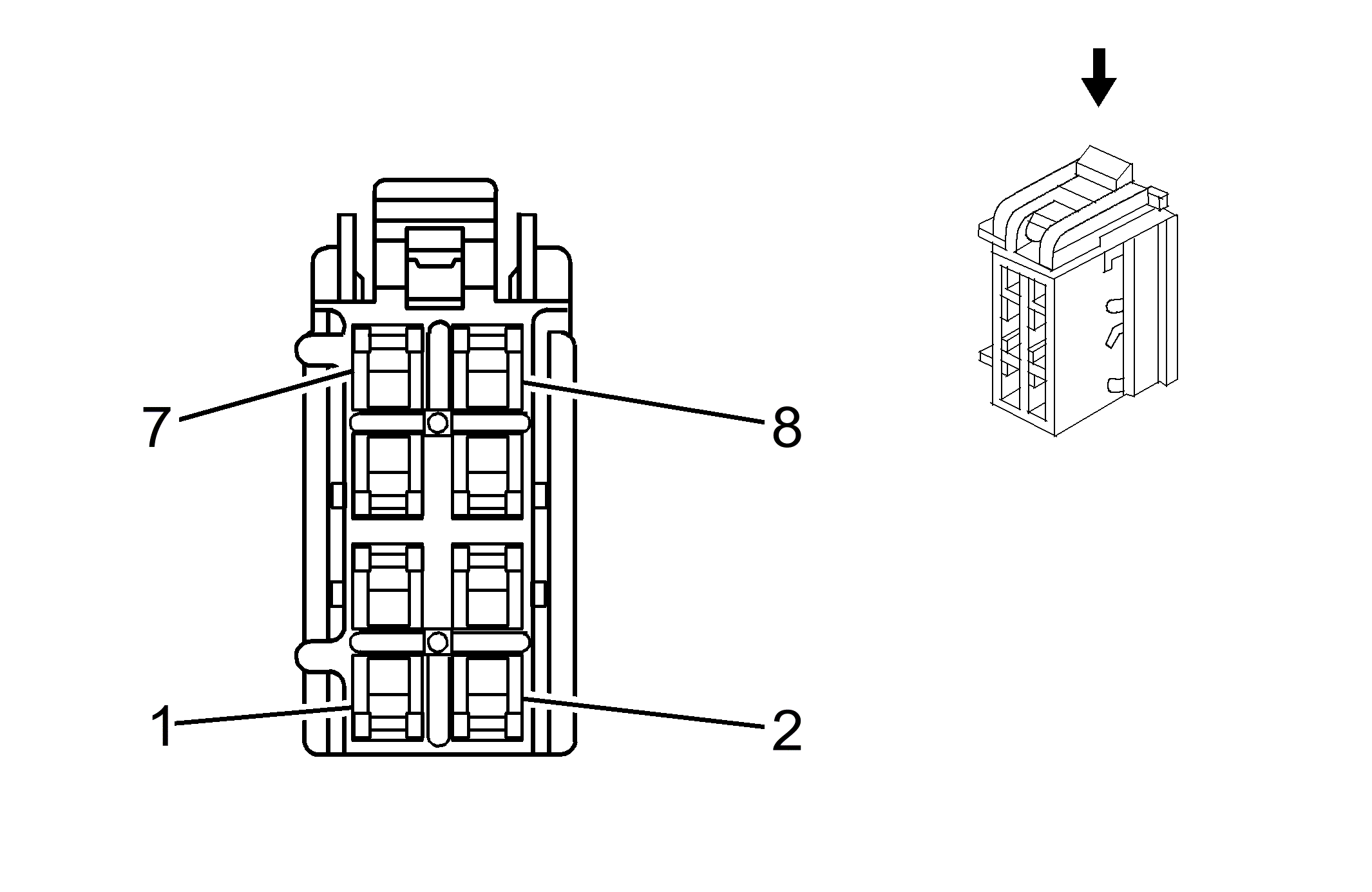

Fig 1: Junction Block - I/P X11

GM1665725

Courtesy of GENERAL MOTORS CORP.

Connector Part Information

OEM: 13516833
Service: 19115668
Description: 8-Way F GT 280 Series (L-GY)

Terminal Part Information

Pins: 1, 2
Terminal/Tray: 13525969/4
Core/Insulation Crimp: F/D
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: 3, 4, 6-8
Terminal/Tray: 13525970/4
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pin	Wire	Circuit	Function
1	3 RD/WH	1340	Battery Positive Voltage
2	3 RD/WH	1440	Battery Positive Voltage
3	0.35 PK	1639	Ignition 1 Voltage (SUV)
4	0.35 BN/WH	230	Instrument Panel Lamps Dimming Control
4	0.35 BN/WH	230	Instrument Panel Lamps Dimming Control
5	-	-	Not Used
6	0.35 PK	1139	Ignition 1 Voltage
7	0.5 RD/WH	4440	Battery Positive Voltage
8	0.5 RD/WH	4440	Battery Positive Voltage
