Fuse Block - Underhood X5

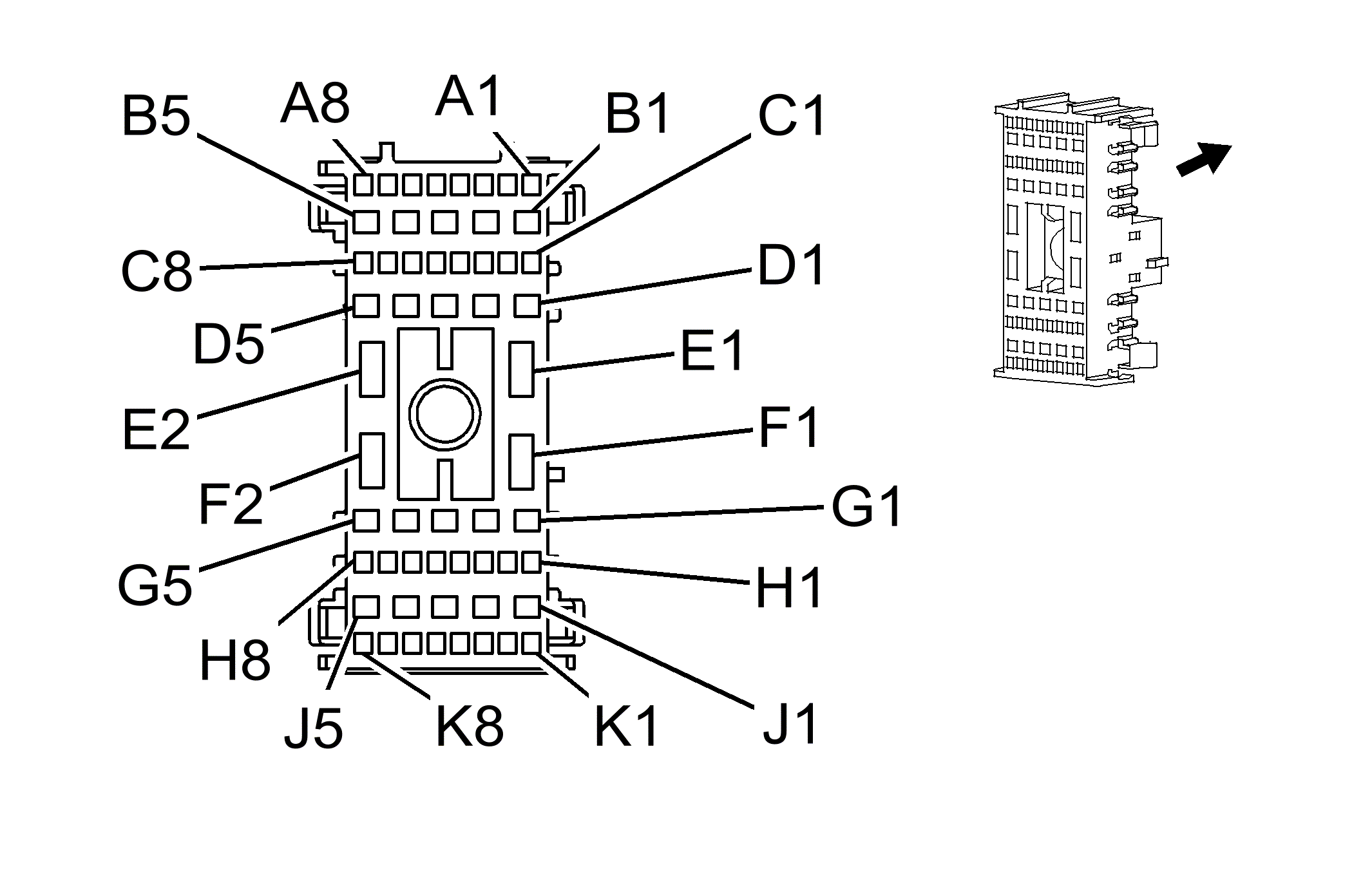

Fig 1: Fuse Block - Underhood X5
GM1665658Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13513345
  • Service: 19115658
  • Description: 56-Way F GT 150 280 Metri-Pack Series (GY)
Terminal Part Information
  • Pins: A2, B1-B3, C4, C8, D1, D2, D4, G2, G3, G4, G5, H1, H3, H5, H8, J5, K1, K3, K5
  • Terminal/Tray: 15496302/5
  • Core/Insulation Crimp: Pins A2, B1, B2, C4, C8, D1, D2, D4, G2, G3, G4, G5, H1, H3, H5, H8, J5, K1, K3 - E/A
  • Core/Insulation Crimp: Pins K5 - 2/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: E1, F1, F2
  • Terminal/Tray: 12110127/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
  • Pins: G1, J1, J2
  • Terminal/Tray: 13525969/4
  • Core/Insulation Crimp: 4/4
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pin Wire Circuit Function
A1 - - Not Used
A2 0.5 L-BU/WH 6311 TCC Brake Signal
A3-A8 - - Not Used
B1 0.5 L-BU/WH 6311 TCC Brake Signal
0.5 L-BU/WH 6311 TCC Brake Signal
B2 0.5 RD/WH 740 Battery Positive Voltage
B3 0.5 RD/WH 340 Battery Positive Voltage
1 RD/WH 340 Battery Positive Voltage
B4-C3 - - Not Used
C4 0.5 YE 43 Accessory Voltage
C5-C7 - - Not Used
C8 0.5 D-BU 45 Park Lamp Relay Control (UE1)
D1 0.5 RD/WH 540 Battery Positive Voltage
D2 0.5 RD/WH 3340 Battery Positive Voltage
D3 - - Not Used
D4 0.5 YE 643 Accessory Voltage
D5 - - Not Used
E1 5 RD/BK 1642 Battery Positive Voltage (CHW)
E2 - - Not Used
F1 3 RD/BK 1342 Battery Positive Voltage
F2 5 RD/BK 42 Battery Positive Voltage
G1 2 BK 550 Ground
G2 0.5 PK 1139 Ignition 1 Voltage
G3 0.5 PK 239 Ignition 1 Voltage
G4 0.5 PK 1639 Ignition 1 Voltage
0.5 PK 1639 Ignition 1 Voltage
G5 0.5 PK 739 Ignition 1 Voltage
H1 0.5 OG 5186 Left Trailer Turn Signal Lamp Control
H2 - - Not Used
H3 0.5 YE 5187 Right Trailer Turn Signal Lamp Control
H4 - - Not Used
H5 0.5 YE 5199 Run/Crank Relay Control
H6-H7 - - Not Used
H8 0.5 D-BU 38 Backup Lamp Relay Control
J1 2 PU 92 Windshield Wiper Motor High Speed
J2 2 D-GN 95 Windshield Washer Switch Signal
J3-J4 - - Not Used
J5 0.5 PK 839 Ignition 1 Voltage
K1 0.5 TN 860 Front Windshield Wiper Switch High Signal
K2 - - Not Used
K3 0.5 GY 91 Windshield Wiper Switch Signal 2
K4 - - Not Used
K5 1 L-BU 20 Stop Lamp Supply Voltage
K6-K8 - - Not Used
