Fuse Block - Underhood X4

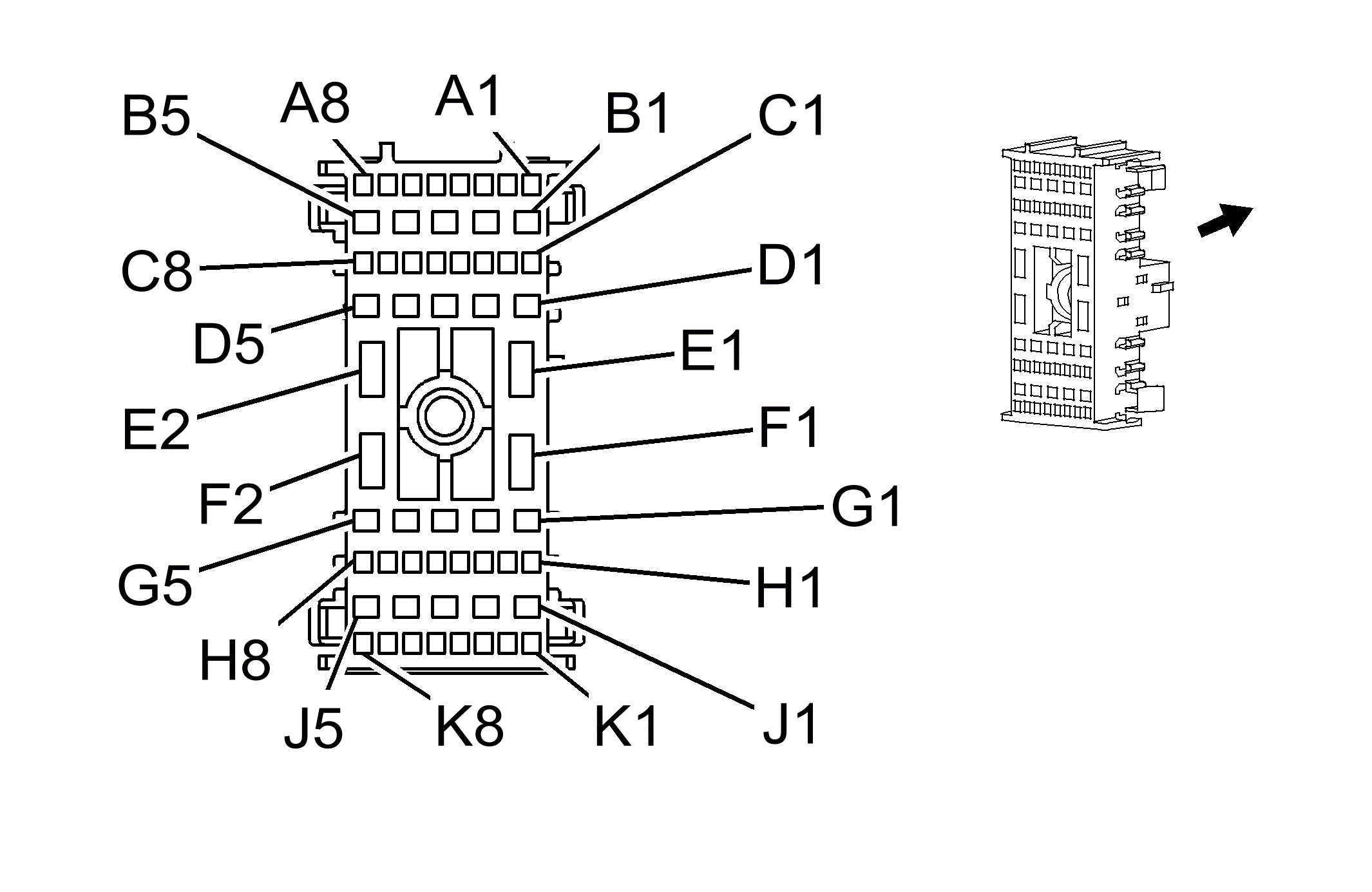

Fig 1: Fuse Block - Underhood X4
GM1665659Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13513329
  • Service: 19115656
  • Description: 56-Way F GT 150 280 Metri-Pack Series (BK)
Terminal Part Information
  • Pins: A1, A3, A7, C1, C3, D4, G1, G5, H5, K5, H1, H2, H4, J4, K1, K2
  • Terminal/Tray: 15496302/5
  • Core/Insulation Crimp: Pins A1, C1, G5, H5, K5 - 2/A
  • Core/Insulation Crimp: Pins A3, A7, C3, D4, G1, H1, H2, H4, J4, K1, K2 - E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: B5, G2, G3, J1
  • Terminal/Tray: 13525969/4
  • Core/Insulation Crimp: F/D
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: E1, E2, F2
  • Terminal/Tray: 12110127/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
Pin Wire Circuit Function
A1 0.8 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
A2 - - Not Used
A3 0.5 D-BU 477 Windshield Wiper Switch Signal 1
A4-A6 - - Not Used
A7 0.5 WH 193 Rear Defog Relay Control
A8-B4 - - Not Used
B5 3 PU 293 Rear Defog Element Supply Voltage
C1 0.8 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
C2 - - Not Used
C3 0.5 TN/WH 1969 Headlamp High Beam Relay Control
C4-D3 - - Not Used
D4 0.5 RD/WH 4440 Battery Positive Voltage
D5 - - Not Used
E1 5 RD/BK 842 Battery Positive Voltage
E2 5 RD/BK 642 Battery Positive Voltage
F1 - - Not Used
F2 5 RD/BK 542 Battery Positive Voltage
G1 0.5 TN 28 Horn Relay Control
G2 3 RD/WH 2340 Battery Positive Voltage
G3 3 RD/WH 3740 Battery Positive Voltage
G4 - - Not Used
G5 0.8 RD/WH 4540 Battery Positive Voltage
H1 0.5 BN 2509 Left Rear Park Lamps Supply Voltage
H2 0.5 BN 2609 Right Rear Park Lamps Supply Voltage
H3 - - Not Used
H4 0.5 L-GN/BK 592 DRL Relay Control
H5 0.8 D-GN/WH 1335 Right Rear Turn Signal Lamp Supply Voltage
H6-H8 - - Not Used
J1 3 RD/WH 3140 Battery Positive Voltage (CF5)
J2-J3 - - Not Used
J4 0.5 RD/WH 2840 Battery Positive Voltage
0.5 RD/WH 2840 Battery Positive Voltage
J5 0.8 RD/WH 640 Battery Positive Voltage
0.8 RD/WH 640 Battery Positive Voltage
K1 0.5 L-GN 2270 Rear Window Washer Relay Control (6)
K2 0.5 PK/WH 1970 Headlamp Low Beam Relay Control
K3-K4 - - Not Used
K5 0.8 YE/BK 1334 Left Rear Turn Signal Lamp Supply Voltage
K6-K8 - - Not Used
