Fuse Block - Underhood X3

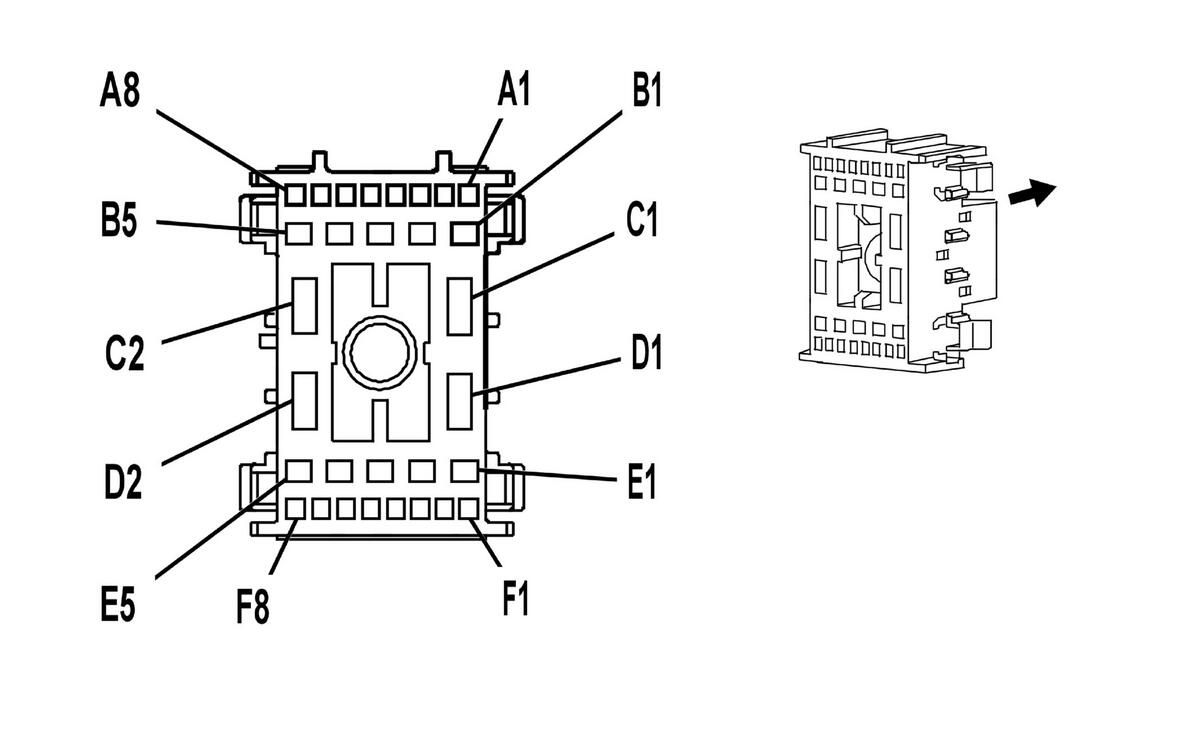

Fig 1: Fuse Block - Underhood X3
GM1665657Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13513342
  • Service: 19115657
  • Description: 30-Way F GT 150 280 Metri-Pack Series (BK)
Terminal Part Information
  • Pins: A1-A5, A7, A8, B4, E2, E3, F1, F5, F7, F8
  • Terminal/Tray: 15496302/5
  • Core/Insulation Crimp: Pins A1, A2, A7, B4, E2, F1, F8 - 2/A
  • Core/Insulation Crimp: Pins A3, A4, A5, A8, E3, F5, F7 - E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: A7, E1, E3, F8
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: B3, E4
  • Terminal/Tray: 13525969/4
  • Core/Insulation Crimp: Pins B3 - F/D
  • Core/Insulation Crimp: Pins E4 - 4/4
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: C1, D1
  • Terminal/Tray: 12110127/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
Pin Wire Circuit Function
A1 0.8 D-GN/WH 1335 Right Rear Turn Signal Lamp Supply Voltage
A2 0.8 YE/BK 1334 Left Rear Turn Signal Lamp Supply Voltage
A3 0.5 L-BU 20 Stop Lamp Supply Voltage
A4 0.5 L-BU 20 Stop Lamp Supply Voltage
A5 0.5 RD/WH 1840 Battery Positive Voltage
A6 - - Not Used
A7 0.8 BN 2509 Left Rear Park Lamps Supply Voltage
A8 0.5 BN 2509 Left Rear Park Lamps Supply Voltage
B1-B2 - - Not Used
B3 3 RD/WH 1640 Battery Positive Voltage
B4 1 BN 2109 Trailer Park Lamps Supply Voltage
B5 - - Not Used
C1 5 RD/BK 1842 Battery Positive Voltage (ZM6)
C2 - - Not Used
D1 5 RD/BK 1742 Battery Positive Voltage
D2 - - Not Used
E1 0.5 D-GN 1619 Trailer Right Rear Turn Lamp Supply Voltage
0.8 D-GN 1619 Trailer Right Rear Turn Lamp Supply Voltage
E2 1 L-GN 1624 Trailer Backup Lamps Supply Voltage
E3 0.5 L-GN 24 Backup Lamp Supply Voltage
0.5 L-GN 24 Backup Lamp Supply Voltage
E4 2 RD/WH 3440 Battery Positive Voltage
E5 - - Not Used
F1 0.8 YE 1618 Trailer Left Rear Turn Lamp Supply Voltage
F2-F4 - - Not Used
F5 0.5 PK 439 Ignition 1 Voltage
F6 - - Not Used
F7 0.5 BN 2609 Right Rear Park Lamps Supply Voltage
F8 0.8 BN 2609 Right Rear Park Lamps Supply Voltage
