Fuse Block - Underhood X1

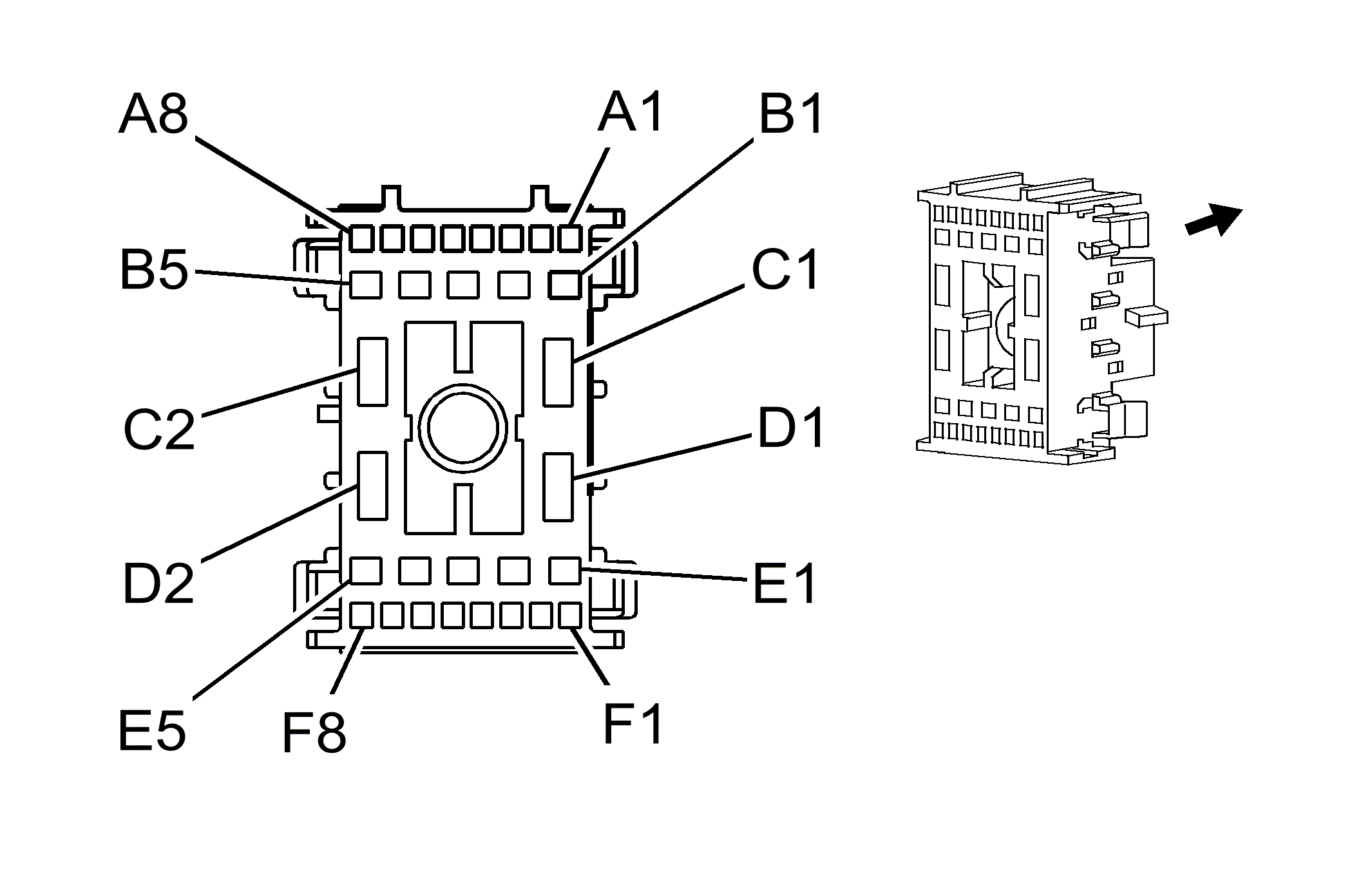

Fig 1: Fuse Block - Underhood X1
GM1665656Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13513343
  • Service: 19115674
  • Description: 30-Way F GT 150 280 Metri-Pack Series (GY)
Terminal Part Information
  • Pins: A1, A2, A4, B3, E1, E4, F4, F5, F7, F8
  • Terminal/Tray: 15496302/5
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: A7, A8, E2, E3
  • Terminal/Tray: 13525970/4
  • Core/Insulation Crimp: 2/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: B3, E5, E5
  • Terminal/Tray: 13525969/4
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: C1, C2, D1, D2
  • Terminal/Tray: 12110127/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
Pin Wire Circuit Function
A1 0.5 BK 250 Ground
A2 0.5 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
A3 - - Not Used
A4 0.5 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
A5-A6 - - Not Used
A7 1 L-GN/BK 311 Right Headlamp High Beam Supply Voltage
A8 0.8 D-GN/WH 711 Left Headlamp High Beam Supply Voltage
B1-B2 - - Not Used
B3 0.35 D-BU 545 DRL Supply Voltage
0.35 D-BU 545 DRL Supply Voltage
B4-B5 - - Not Used
C1 5 GY 532 Cooling Fan Motor Supply Voltage
C2 5 YE 5358 Auxiliary Cooling Fan Motor Supply Voltage
D1 5 L-BU 409 Cooling Fan Motor Supply Voltage
D2 5 BK 150 Ground
E1 0.5 OG 228 Windshield Washer Pump Control
E2 0.8 YE 712 Left Headlamp Low Beam Supply Voltage
E3 0.8 TN/WH 312 Right Headlamp Low Beam Supply Voltage
E4 0.5 D-BU 227 Rear Window Washer Pump Control
E5 0.8 D-GN 29 Horn Control
0.5 D-GN 29 Horn Control
F1-F3 - - Not Used
F4 0.5 BN 2609 Right Rear Park Lamps Supply Voltage
F5 0.5 BN 2609 Right Rear Park Lamps Supply Voltage
F6 - - Not Used
F7 0.5 BN 2509 Left Rear Park Lamps Supply Voltage
F8 0.5 BN 2509 Left Rear Park Lamps Supply Voltage
