Fuse Block - Underhood - X2

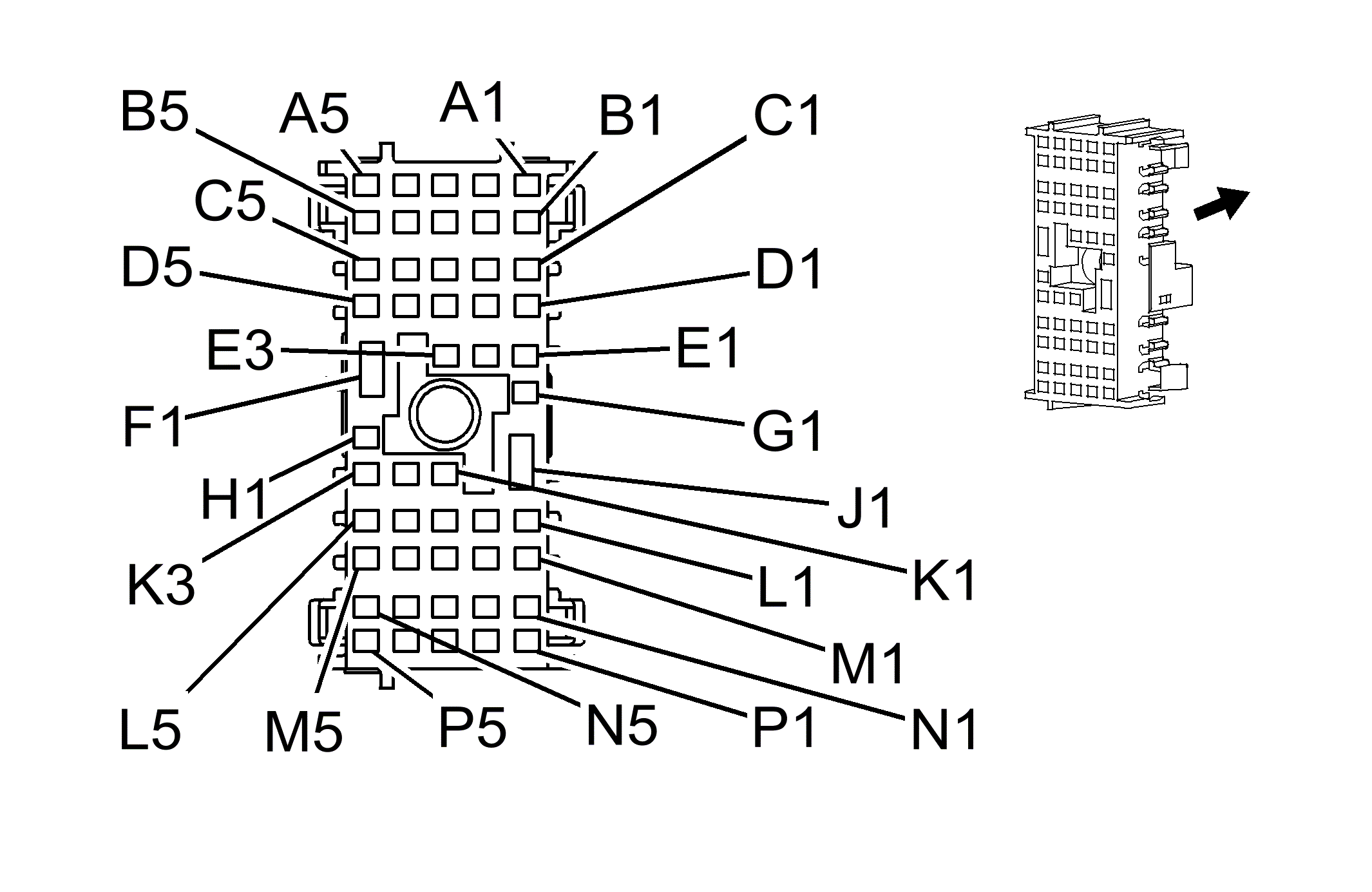

Fig 1: Fuse Block - Underhood - X2
GM1665660Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13513347
  • Service: 19115659
  • Description: 50-Way F GT 280 Metri-Pack Series (BK)
Terminal Part Information
  • Pins: A1, B5, C3, C5, D3, D4, L1-L5, M1-M5, N1, N3, N4, P2, P3, P5
  • Terminal/Tray: 13525970/4
  • Core/Insulation Crimp: Pins A1, B5, C3, C5, D3, L2-L4, M1, M3-M5, N1, N3, N4, P2, P3, P5 - See Terminal Repair Kit
  • Core/Insulation Crimp: Pins D4, L5, M2 - 2/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: F1
  • Terminal/Tray: 12110127/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
  • Pins: N5
  • Terminal/Tray: 13525969/4
  • Core/Insulation Crimp: F/D
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pin Wire Circuit Function
A1 D-GN 335 Low Speed Cooling Fan Relay Control
A2-B4 - - Not Used
B5 D-BU 473 High Speed Cooling Fan Relay Control
C1-C2 - - Not Used
C3 D-GN/WH 459 A/C Compressor Clutch Relay Control
C4 - - Not Used
C5 YE/BK 625 Starter Enable Relay Control
D1-D2 - - Not Used
D3 RD/WH 440 Battery Positive Voltage
D4 0.8 D-GN 59 A/C Compressor Clutch Supply Voltage
D5-E3 - - Not Used
F1 3 PU 6 Starter Solenoid Crank Voltage
G1-L1 - - Not Used
L2 PK 1539 Ignition 1 Voltage
PK 1539 Ignition 1 Voltage
L3 0.8 PK 1239 Ignition 1 Voltage
0.8 PK 1239 Ignition 1 Voltage
L4 0.5 PK 539 Ignition 1 Voltage
0.5 PK 539 Ignition 1 Voltage
L5 1 PK 1039 Ignition 1 Voltage
M1 PK 1839 Ignition 1 Voltage
PK 1839 Ignition 1 Voltage
M2 1 PK 1239 Ignition 1 Voltage
M3 0.8 PK 1239 Ignition 1 Voltage
0.8 PK 1239 Ignition 1 Voltage
M4 0.8 PK 1039 Ignition 1 Voltage
0.8 PK 1039 Ignition 1 Voltage
M5 0.8 PK 1039 Ignition 1 Voltage
0.8 PK 1039 Ignition 1 Voltage
N1 0.5 PK 1339 Ignition 1 Voltage
N2 - - Not Used
N3 0.5 RD/WH 1840 Battery Positive Voltage
N4 0.5 PK 2139 Ignition 1 Voltage
N5 3 BK 550 Ground
P1 - - Not Used
P2 YE 5991 Powertrain Relay Coil Control
P3 L-BU/WH 6311 TCC Brake Signal
L-BU/WH 6311 TCC Brake Signal
P4 - - Not Used
P5 PK 439 Ignition 1 Voltage
