Windshield Washer Solvent Heater X2

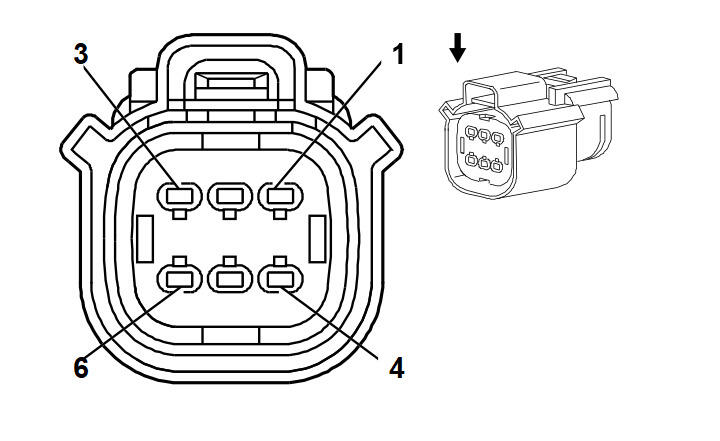

Fig 1: Windshield Washer Solvent Heater X2 Connector End View
GM1664625Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 33472-0611
  • Service: 19115669
  • Description: 6-Way F Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Pin Wire Circuit Function
1 0.5 L-GN 6096 Washer Fluid Heated Control Switch Signal
2 0.5 OG 7594 Windshield Washer Solvent Heater Switch Indicator Control
4 0.5 BK 250 Ground
5 0.5 PK 94 Windshield Washer Switch Signal
6 0.5 OG 300 Ignition 3 Voltage
