Window Motor - Passenger

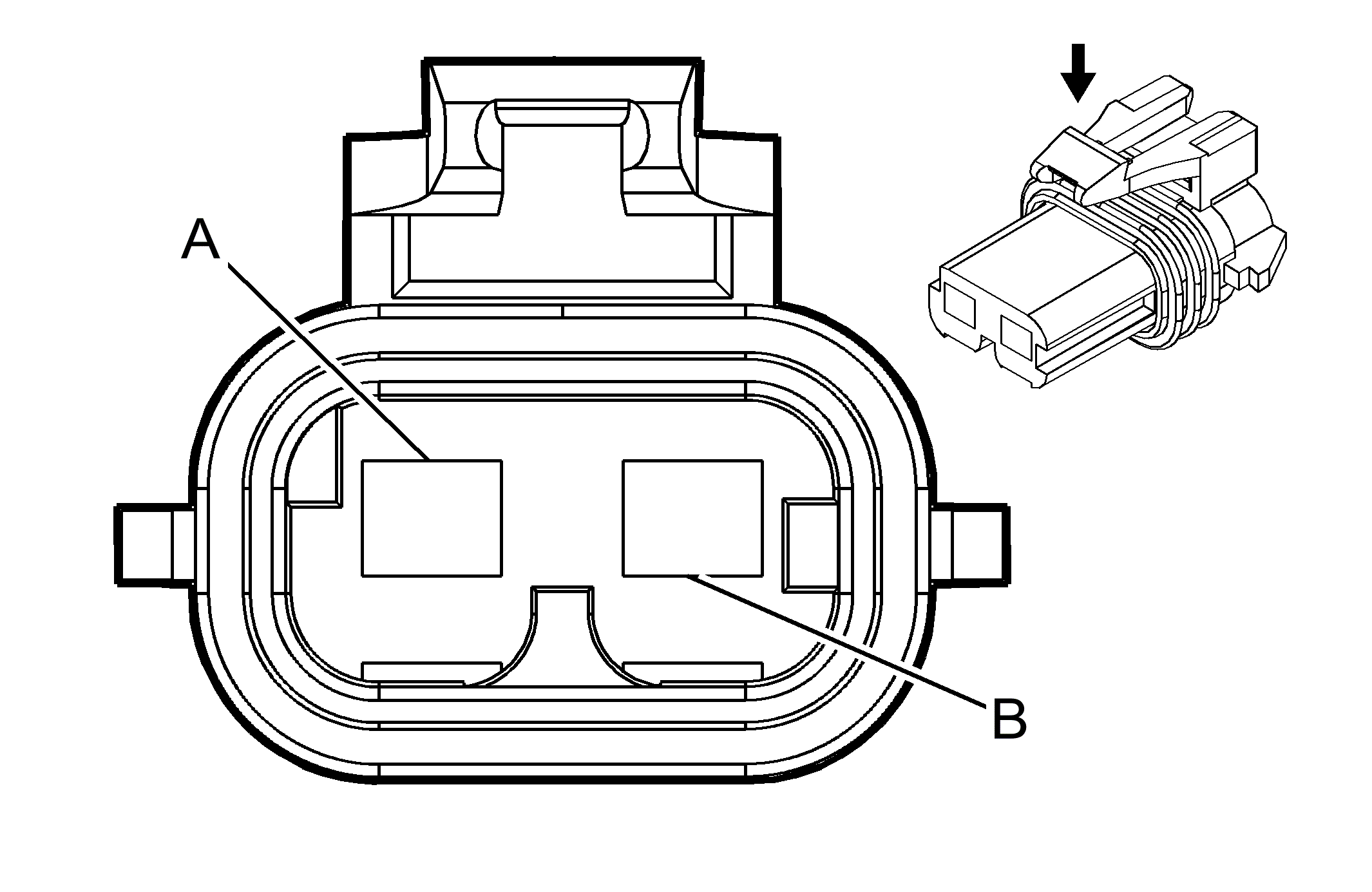

Fig 1: Window Motor - Passenger Connector End View
GM684837Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129487
  • Service: See Catalog
  • Description: 2-Way F Metri-Pack 280 Series, Flexlock, Sealed (GY)
Terminal Part Information
  • Terminal/Tray: 12110845/4
  • Core/Insulation Crimp: A/5
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pin Wire Circuit Function
A 2 D-BU 666 Power Window Motor Right Front Up Control
B 2 BN 667 Power Window Motor Right Front Down Control
