Tail/Stop and Turn Signal Lamp - Right

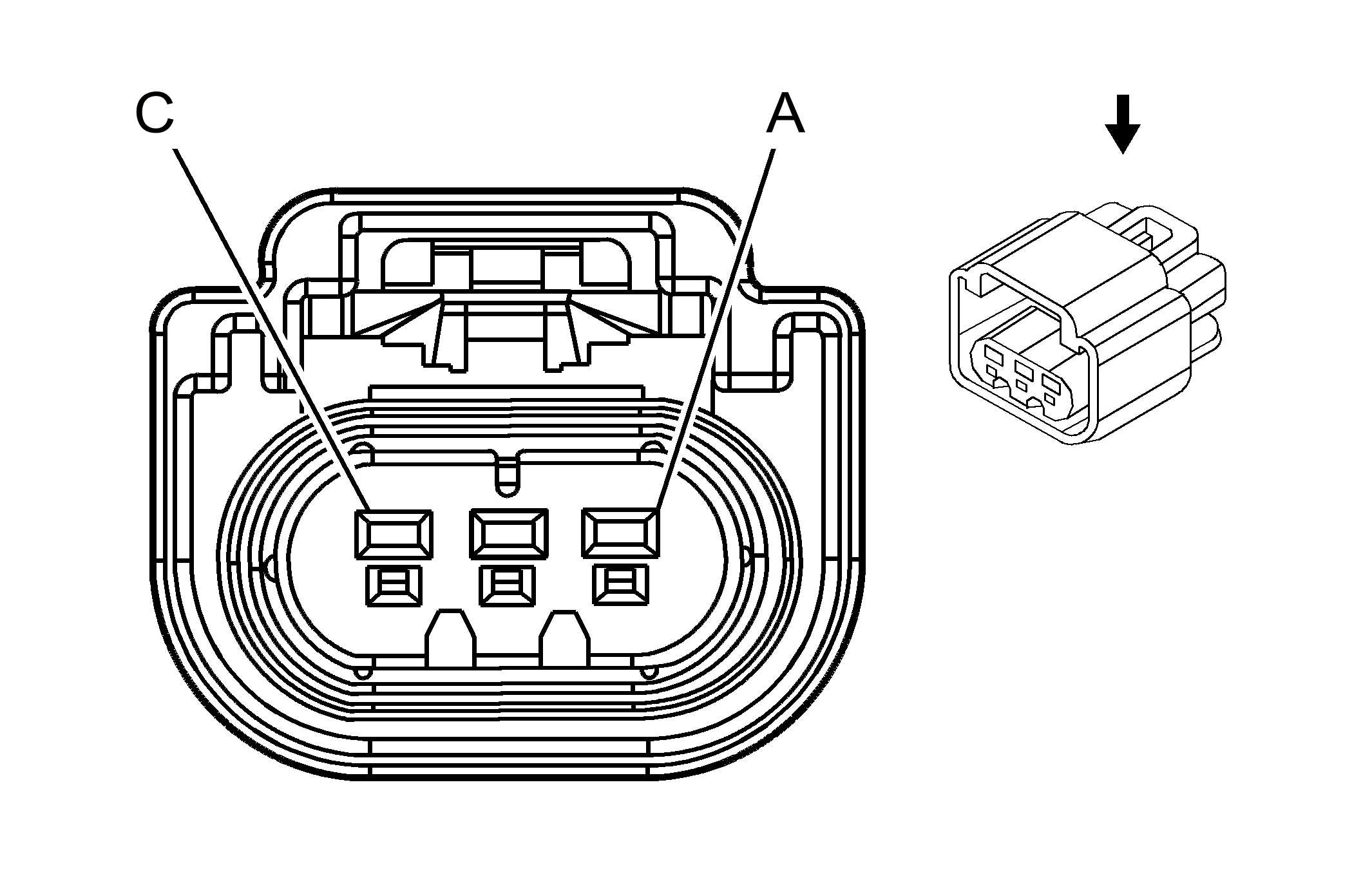

Fig 1: Tail/Stop and Turn Signal Lamp - Right Connector End View

Courtesy of GENERAL MOTORS CORP.

Connector Part Information  OEM: 15422250 Service: 88987995 Description: 3-Way F GT 150 Series, Sealed (D-GY)

Terminal Part Information  Terminal/Tray: 12191819/8 Core/Insulation Crimp: E/A Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pin	Wire	Circuit	Function
A	0.5 BK	1750	Ground
B	0.5 BN	2609	Right Rear Park Lamps Supply Voltage
C	0.5 D-GN	1619	Trailer Right Rear Turn Lamp Supply Voltage
