Speaker - Left Front Tweeter

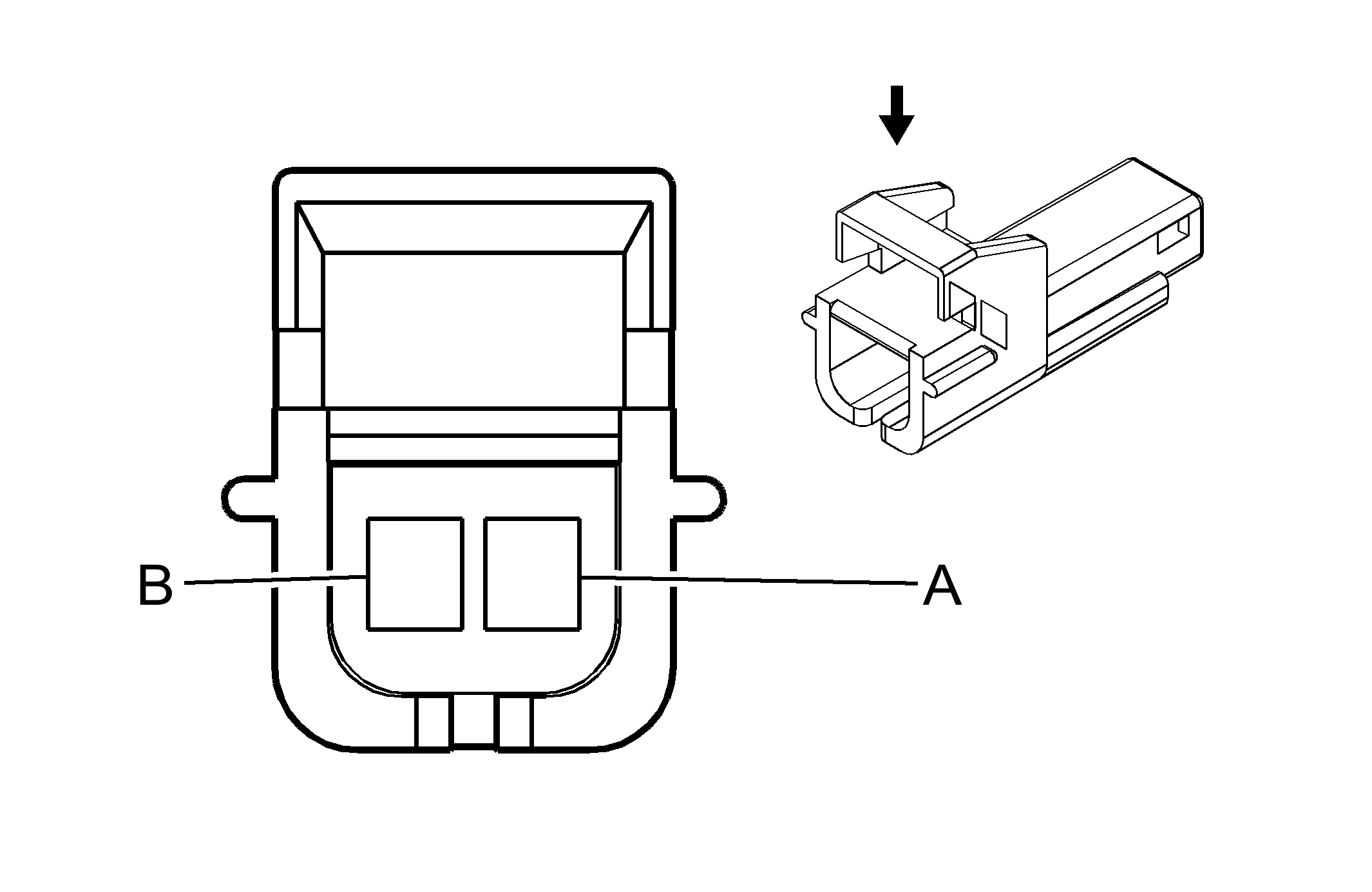

Fig 1: Speaker - Left Front Tweeter Connector End View
GM766913Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15496090
  • Service: See Catalog
  • Description: 2-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12047581/2
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094429/J-35616-3 (GY)
Pin Wire Circuit Function
A 0.8 GY 118 Left Front Speaker Output (-)
B 0.8 TN 201 Left Front Speaker Output (+)
