Rear Window Defogger Grid X1 (SUV)

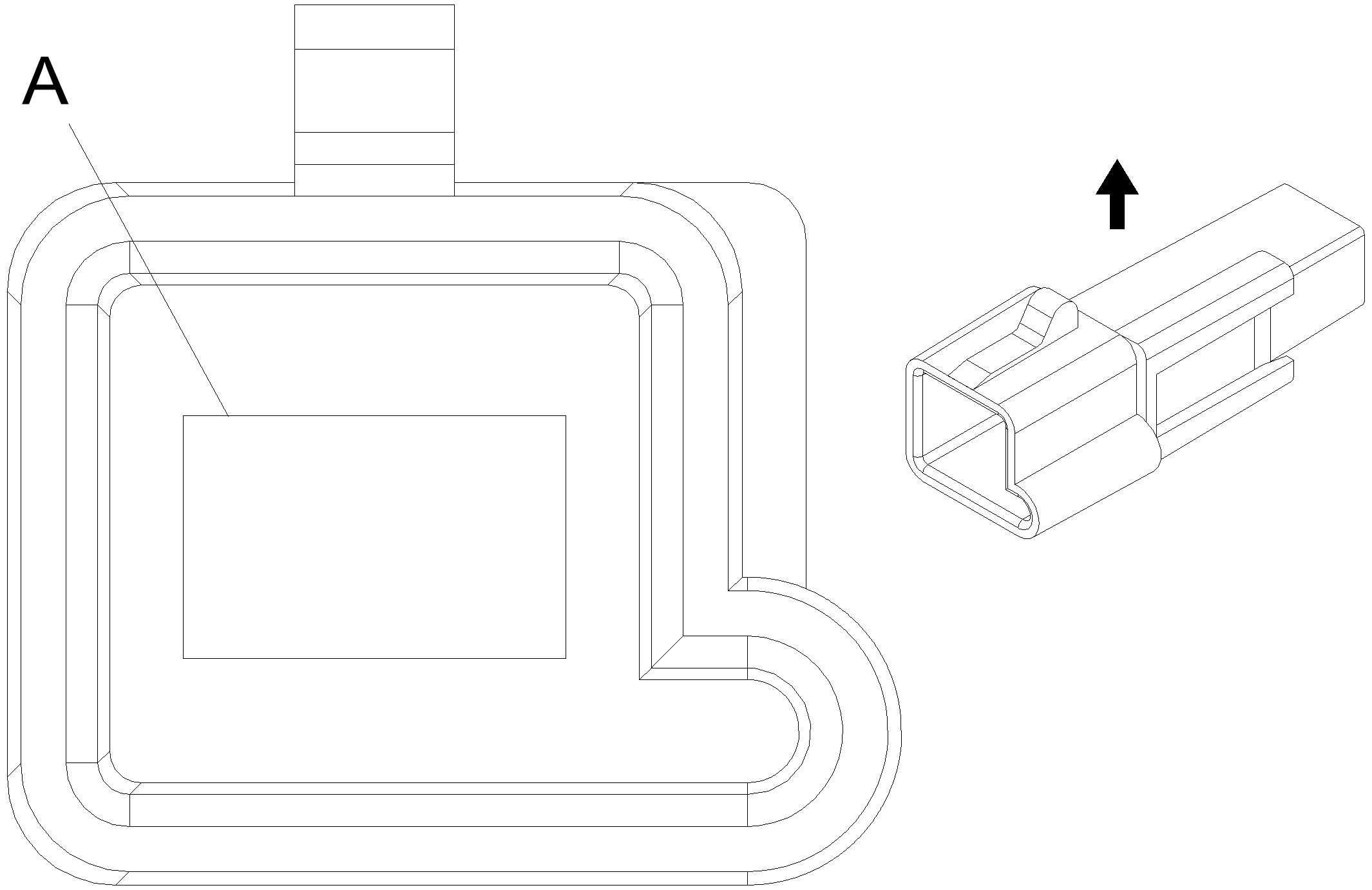

Fig 1: Rear Window Defogger Grid X1 (SUV) Connector End View
GM95780Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059885
  • Service: 12101893
  • Description: 1-Way M Metri-Pack 480 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12033820/2
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12094430/J-35616-40 (BU)
Pin Wire Circuit Function
A 3 BK 1450 Ground
