Rear Seat Audio (RSA) Controller X1

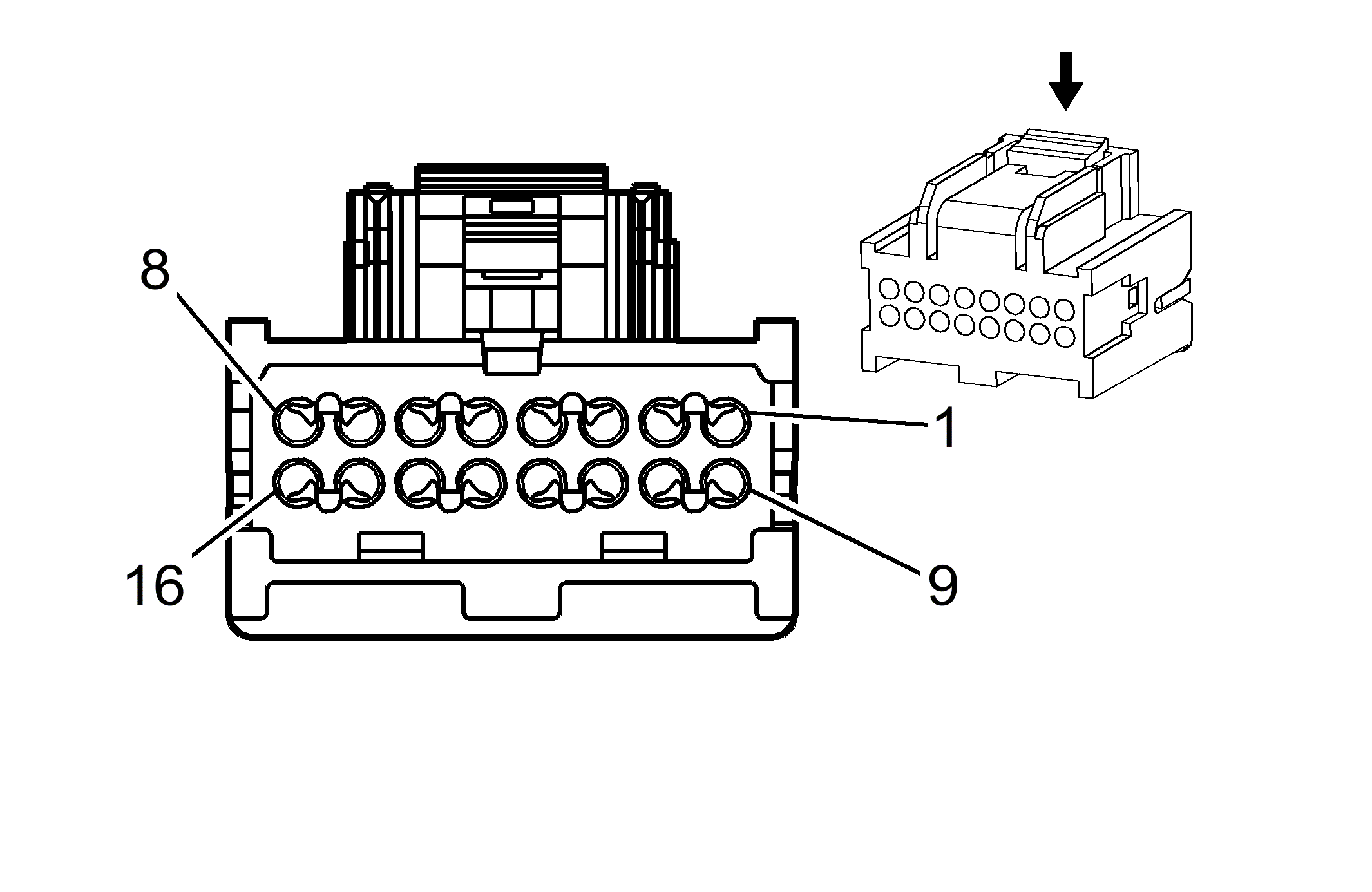

Fig 1: Rear Seat Audio (RSA) Controller X1 Connector End View
GM1454404Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15394149
  • Service: 89047195
  • Description: 16-Way F Micro-Pack 064 Series (GY)
Terminal Part Information
  • Pins: 1-6, 14, 15
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
Pin Wire Circuit Function
1 0.35 OG/BK 5329 Left Infrared Audio Signal (U42)
2 0.35 BN/WH 5331 Ground (U42)
3 0.35 PU/WH 5330 Right Infrared Audio Signal (U42)
4 0.8 BARE 5332 Drain Wire (U42)
5 0.5 RD/WH 340 Battery Positive Voltage
6 0.5 BK 2550 Ground
7-13 - - Not Used
14 0.35 PK 5829 Infrared Module Supply Voltage (U42)
15 0.35 D-GN 5060 Low Speed GMLAN Serial Data
16 - - Not Used
