Radio X3 (U42)

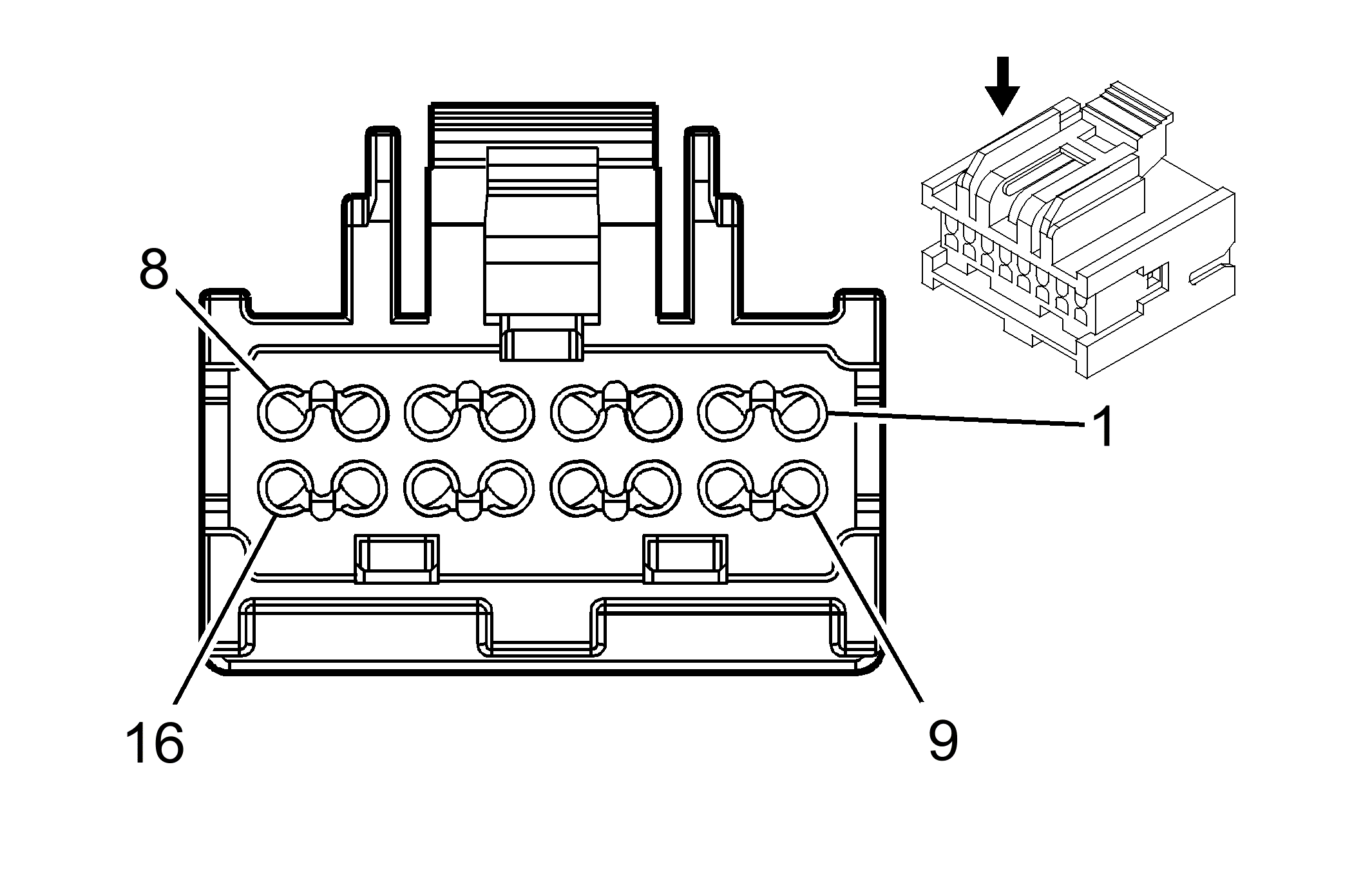

Fig 1: Radio X3 (U42) Connector End View

GM1592685

Courtesy of GENERAL MOTORS CORP.

Connector Part Information

OEM: 15429805
Service: 89047195
Description: 16-Way F Mirco-Pack 64 Series (GY)

Terminal Part Information

Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Pin	Wire	Circuit	Function
1	0.35 YE	2059	Auxiliary Audio Left Signal
2	0.35 WH	2058	Auxiliary Audio Right Signal
3	0.35 L-BU	5826	Left DVD Audio Signal (+)
4	0.35 WH	5828	Right DVD Audio Signal (+)
5	0.35 OG/BK	5831	Low Reference
6	0.35 PK/BK	5844	Video Bright Signal
7	0.35 D-GN	6975	DVD Video Signal (+)
8	0.35 PU	2056	Auxiliary Video High Signal
9	0.8 BARE	5345	Drain Wire
10	0.35 L-GN/BK	5845	Video Mode Signal
11	0.35 PU	6979	DVD Audio Common
12	0.8 BARE	6980	Drain Wire
13	0.35 TN/WH	5830	Right Infrared Audio Signal
14	0.8 BARE	6976	Drain Wire
15	0.35 WH/BK	5335	DVD Video Signal (-)
16	0.8 BARE	5346	Ground
