Noise Compensation Microphone (UQS)

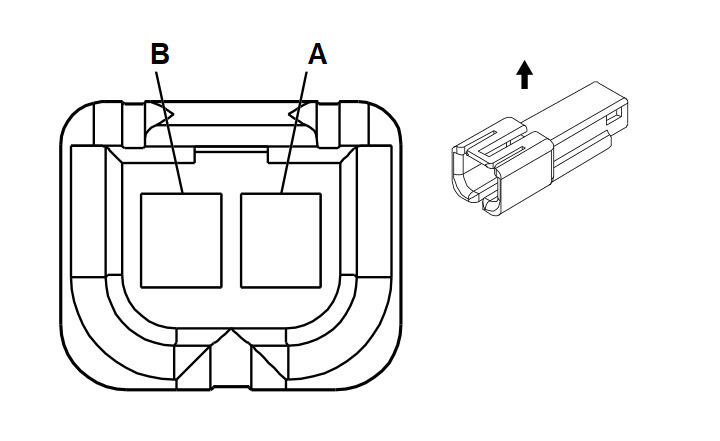

Fig 1: Noise Compensation Microphone (UQS) Connector End View
GM258301Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059254
  • Service: See Catalog
  • Description: 2-Way M Metri-Pack 150 Series (GN)
Terminal Part Information
  • Pins: A, B
  • Terminal/Tray: 12047581/2
  • Core/Insulation Crimp: Pins A - E/A
  • Core/Insulation Crimp: Pins B - E/C
  • Release Tool/Test Probe: 12094429/J-35616-3 (GY)
Pin Wire Circuit Function
A 0.8 BARE 1489 Drain Wire
B 0.5 D-GN 1488 Noise Compensation Microphone Signal
