Inflatable Restraint Side Impact Sensor (SIS) - Left Rear

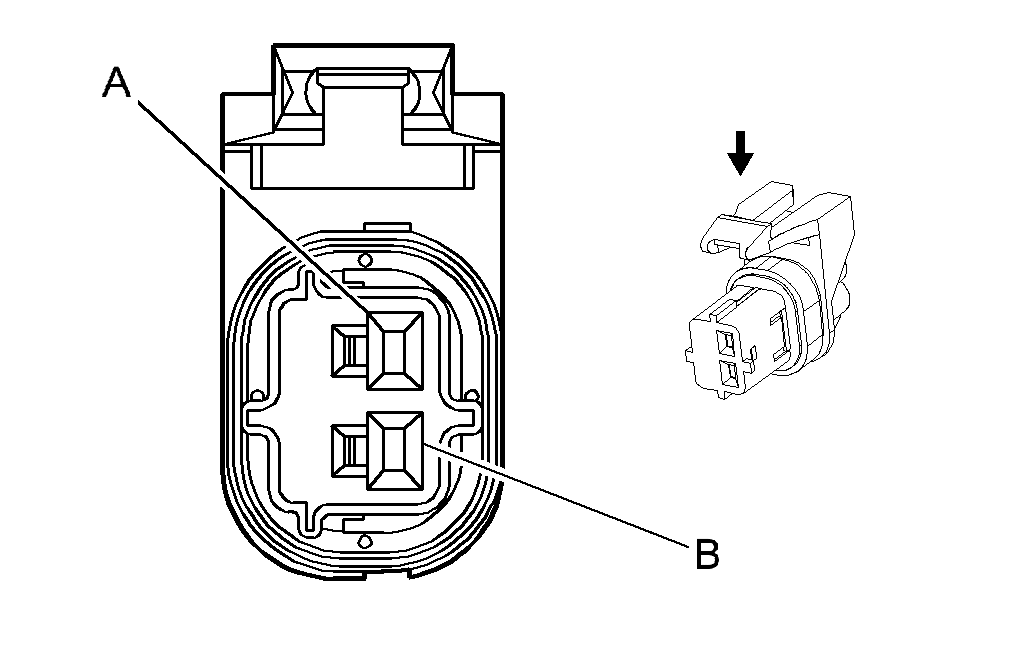

Fig 1: Inflatable Restraint Side Impact Sensor (SIS) - Left Rear Connector End View

Courtesy of GENERAL MOTORS CORP.

Connector Part Information  OEM: 15356725 Service: See Catalog Description: 2-Way F GT 150 Sealed (YE)

Terminal Part Information  Terminal/Tray: Service with Pigtail Core/Insulation Crimp: N/A Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pin	Wire	Circuit	Function
A	0.5 L-GN/BK	6623	Low Reference
B	0.5 L-BU	6622	Left Rear Side Impact Sensing Module Signal
