Driver Information Center (DIC) Switch

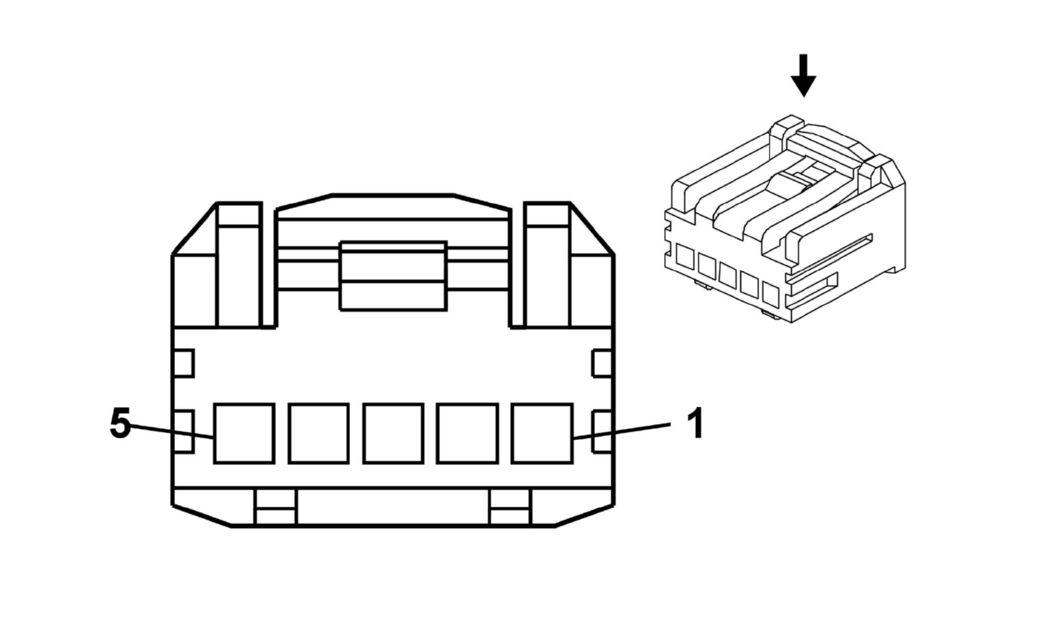

Fig 1: Driver Information Center (DIC) Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

Connector Part Information  OEM: HCMPB-A05-K Service: 88988747 Description: 5-Way F HCM 5PA Series (BK)

Terminal Part Information  Terminal/Tray: SHCM-A03T-P025/20 Core/Insulation Crimp: J/J Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Pin	Wire	Circuit	Function
1	0.35 D-GN/WH	1358	DIC Switch Signal
2	0.35 BN	897	DIC Switch Low Reference
3	0.35 PK	893	DIC Select Menu Switch Signal
4	0.35 YE	6817	LED Dimming Supply
5	0.35 BK	1050	Ground
